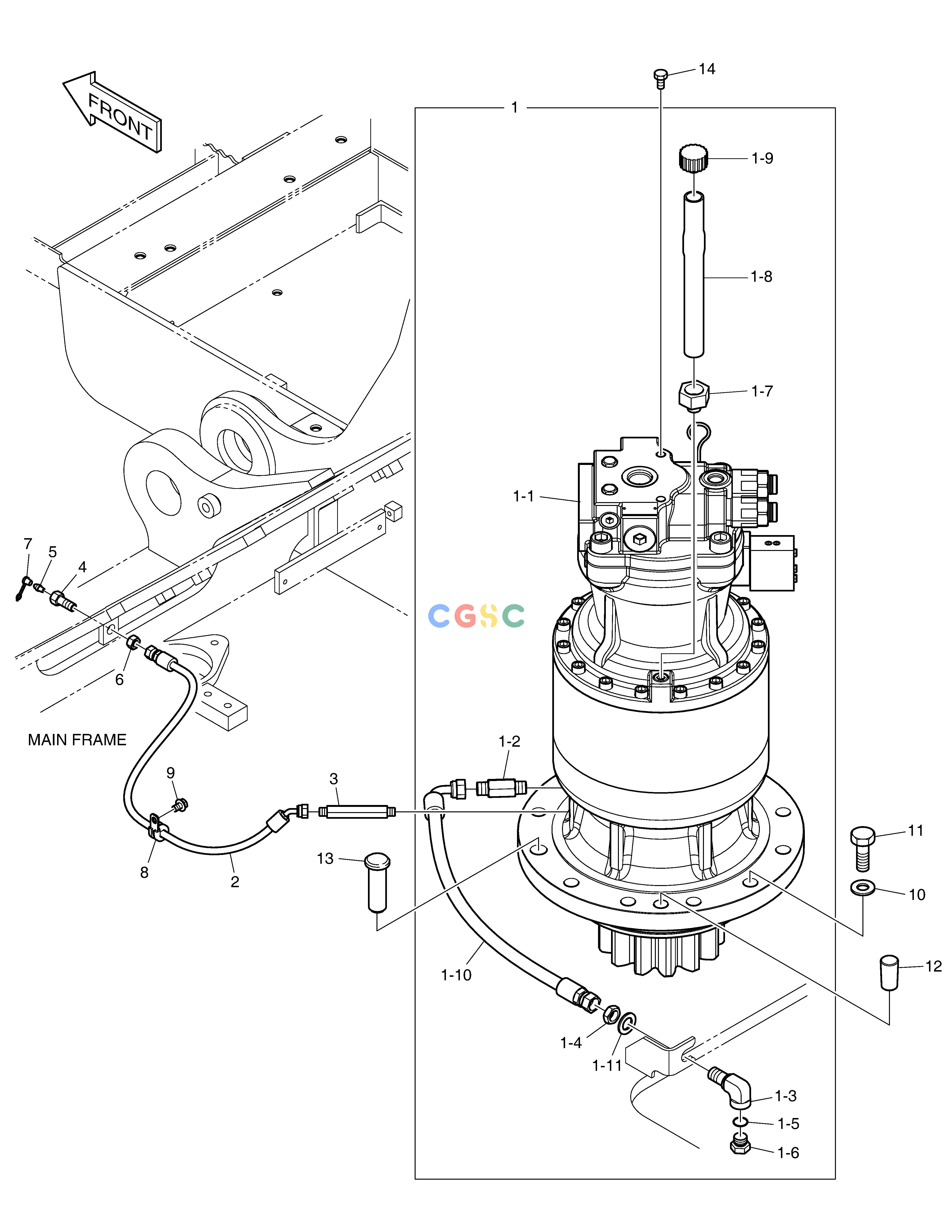

斗山零件查询SWING DEVICE DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
232 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
170301-00229
|
[-] |
|
|
| 1. |
170301-00041C
|
[1] |
|
|
| 1. |
170301-00041B
|
[1] |
|
170301-00041C
|
| 1-1. |
170301-00153A
|
[1] |
|
|
| 1-10. |
DS2055961
|
[1] |
|
|
| 1-11. |
S5011113
|
[1] |
. WASHER
|
|
| 1-2. |
2181-1110D28
|
[1] |
ADAPTER
|
|
| 1-3. |
181-00717
|
[1] |
. ELBOW
|
|
| 1-4. |
121-00010D3
|
[1] |
. NUT
|
|
| 1-5. |
S8000181
|
[1] |
O-RING
|
|
| 1-6. |
DS2901008
|
[1] |
. PLUG
|
|
| 1-6. |
2181-1950D7
|
[1] |
. PLUG
|
DS2901008
|
| 1-7. |
2181-1913D24
|
[1] |
REDUCER
|
|
| 1-8. |
K1000266
|
[1] |
PIPE
|
|
| 1-9. |
2119-1063B
|
[1] |
. CAP
|
|
| 10. |
2114-9012A
|
[11] |
WASHER
|
|
| 11. |
S0570166
|
[11] |
BOLT M20X2.5X65
|
|
| 12. |
160-00027
|
[2] |
CAP
|
|
| 13. |
2123-4030
|
[1] |
PIN;LOCK
|
|
| 14. |
S0511666
|
[2] |
BOLT
|
|
| 2. |
2184-1060D202
|
[1] |
HOSE
|
|
| 3. |
DS2214055
|
[1] |
|
|
| 4. |
181-00103
|
[1] |
REDUCER
|
|
| 5. |
S6710041
|
[1] |
NIPPLE,GREASE
|
|
| 6. |
121-00006
|
[1] |
NUT
|
|
| 7. |
160-00020
|
[1] |
CAP
|
|
| 8. |
124-00208D2
|
[1] |
CLAMP
|
|
| 9. |
K1001029
|
[1] |
BOLT
|
|
