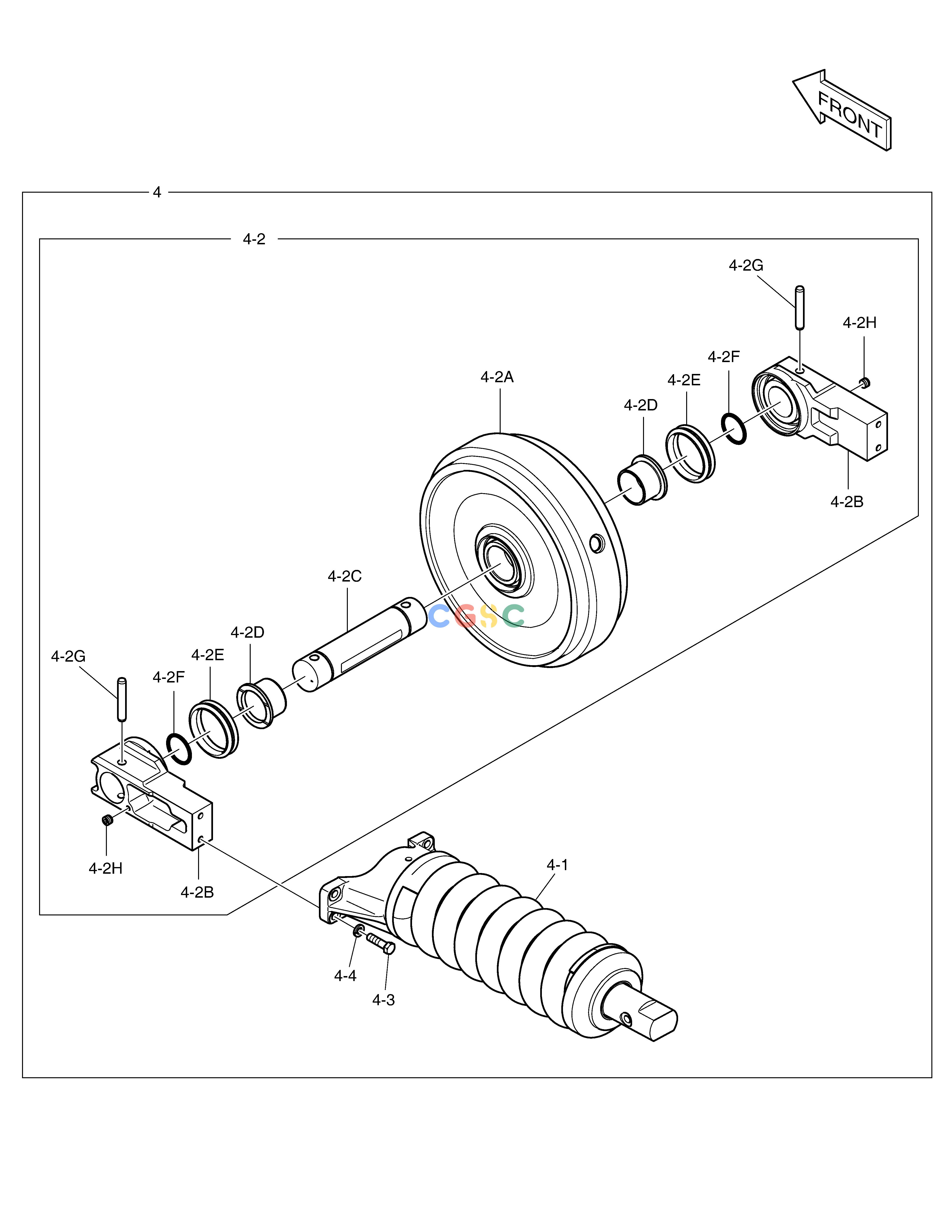

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 4. | 200101-00024E | [1] | ||
| 4-1. | 200101-00025B | [1] | ||
| 4-2. | 200102-00022B | [1] | ||
| 4-2A. | 200102-00023B | [1] | ||
| 4-2B. | 140204-00005A | [2] | ||
| 4-2C. | 130712-00108B | [1] | .. SHAFT,IDLER | |
| 4-2D. | 130702-00044 | [2] | .. BUSHING | |
| 4-2E. | 401111-00012 | [2] | .. SEAL GROUP | |
| 4-2F. | S8010700 | [2] | O-RING | |
| 4-2G. | 120501-00291A | [2] | .. PIN;IDLER | |
| 4-2H. | 2181-1116D2 | [2] | PLUG | |
| 4-3. | S0565466 | [4] | BOLT | |
| 4-4. | K1014251 | [4] | WASHER;HARDEN |
