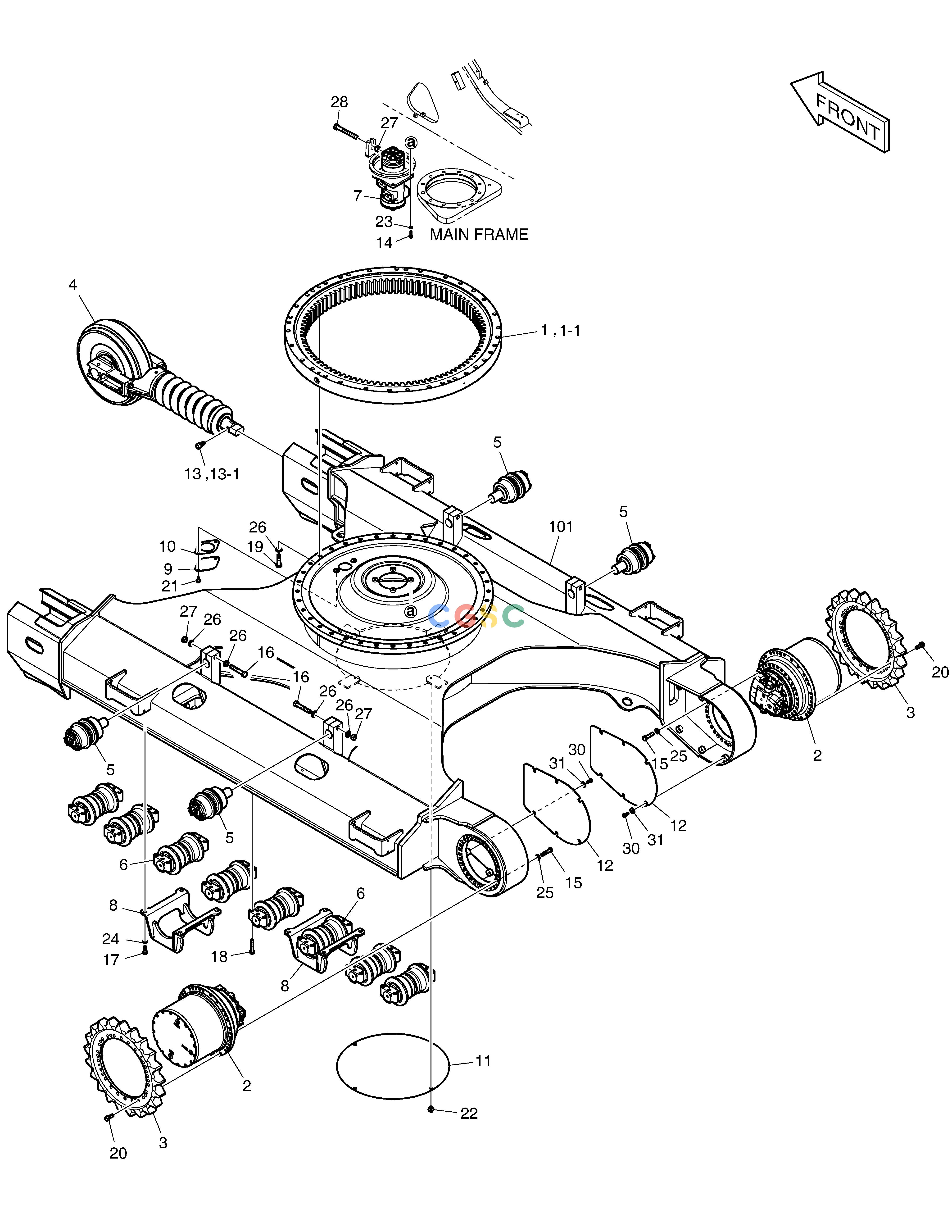

斗山零件查询TRACK FRAME DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
265 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
650105-00270
|
[-] |
|
|
| 1. |
140109-00018A
|
[1] |
|
|
| 1-1. |
401107-00751
|
[2] |
. SEAL,SWING BEARING
|
|
| 10. |
180-00463
|
[1] |
PACKING
|
|
| 101. |
160617-00380A
|
[1] |
|
160617-00380B
|
| 101. |
160617-00380B
|
[1] |
|
|
| 101. |
160617-00380C
|
[1] |
|
|
| 11. |
2621-1428B
|
[1] |
COVER
|
110508-30680
|
| 11. |
110508-30680
|
[1] |
|
|
| 12. |
110508-00675
|
[2] |
|
|
| 13. |
410143-00002
|
[2] |
|
|
| 13-1. |
401106-00513
|
[1] |
|
|
| 14. |
S0515366
|
[4] |
BOLT
|
|
| 15. |
S0565666
|
[60] |
BOLT
|
|
| 16. |
S0571166
|
[4] |
BOLT
|
|
| 17. |
S0721466
|
[16] |
BOLT M16X1.5X40
|
|
| 18. |
S0765966
|
[64] |
BOLT
|
|
| 19. |
S0770266
|
[36] |
BOLT M20X1.5X70
|
|
| 2. |
170401-00039B
|
[2] |
|
|
| 20. |
120-00050B
|
[60] |
BOLT;FLANGE
|
|
| 21. |
DS0025016
|
[2] |
BOLT
|
|
| 22. |
DS0025019
|
[4] |
BOLT
|
|
| 23. |
S5102703
|
[4] |
WASHER
|
|
| 24. |
S5010913
|
[16] |
WASHER
|
|
| 25. |
2114-1816A
|
[60] |
WASHER
|
|
| 26. |
2114-9012A
|
[44] |
WASHER
|
|
| 27. |
S4013133
|
[5] |
NUT
|
|
| 28. |
S0571866
|
[1] |
BOLT M20X2.5X170
|
|
| 3. |
200108-00008A
|
[2] |
|
|
| 30. |
S0515266
|
[12] |
BOLT
|
|
| 31. |
120810-00100
|
[12] |
|
|
| 4. |
200101-00024E
|
[2] |
|
|
| 5. |
200105-00038
|
[4] |
|
|
| 5. |
200105-00022A
|
[4] |
|
|
| 5. |
200105-00068
|
[4] |
|
|
| 6. |
200104-00012A
|
[16] |
|
|
| 7. |
400826-00011A
|
[1] |
JOINT,CENTER
|
|
| 8. |
200112-00073A
|
[4] |
|
|
| 9. |
110508-18743
|
[1] |
COVER,GREASE
|
|
