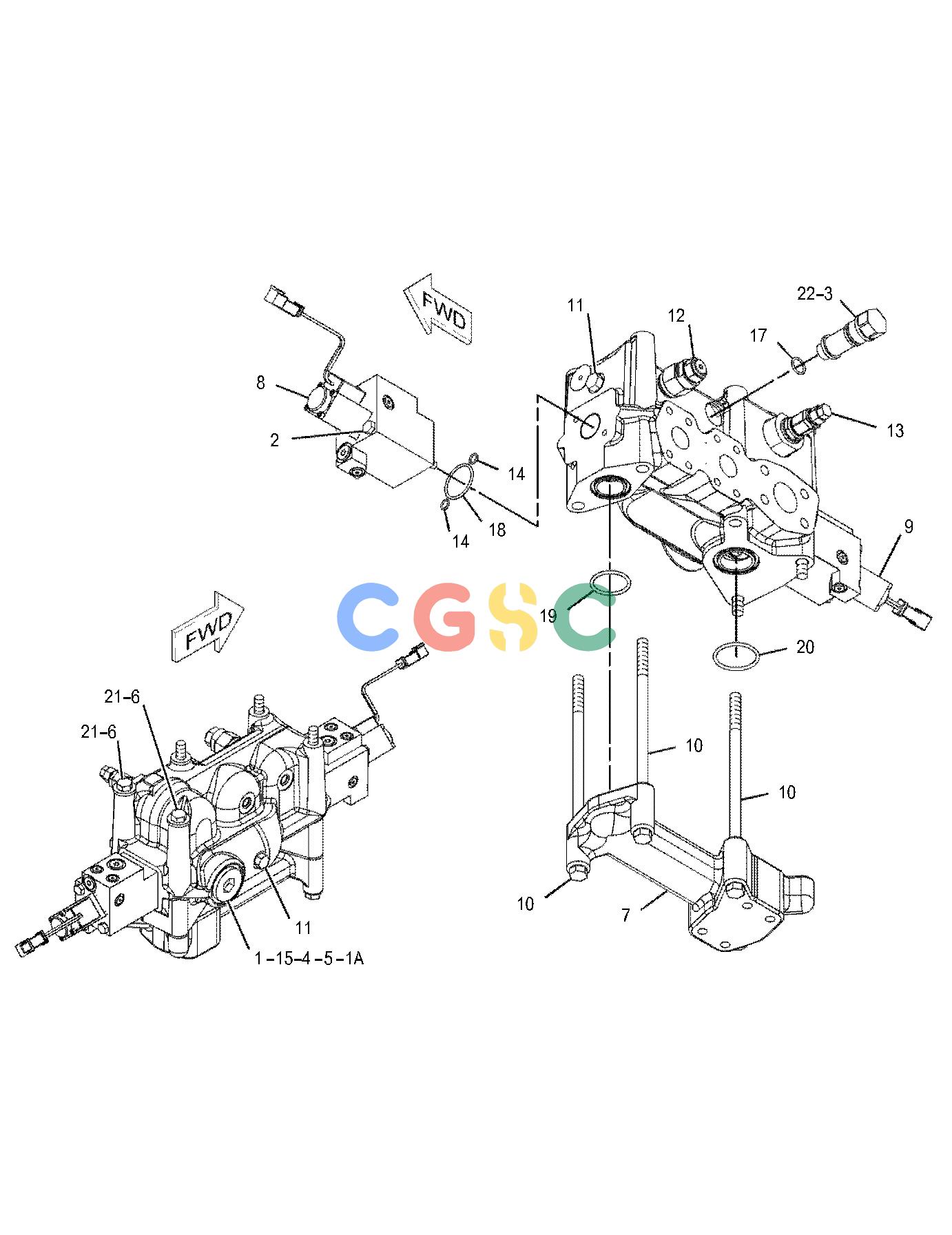

卡特零件查询（725） 174-0018: VALVE GP-HOIST CONTROL
广数供应链运营团队, 14 02月, 2025，浏览：
822 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1U-0323 | [1] | PLUG AS | |
| 1A. | 1U-0322 | [1] | BUSHING | |
| | 3G-2683 | [1] | PLUG | |
| 2. | 7X-2538M | [4] | BOLT(M8X1.25X100-MM) | |
| 3. | 6E-6129 | [1] | PLUG-MAIN RELIEF | |
| 4. | 7J-7423 | [1] | VALVE-CONTROL(HOIST) | |
| 5. | 7S-8491 | [1] | SPRING | |
| 6. | 7X-2551M | [2] | BOLT(M12X1.75X200-MM) | |
| 7. | 372-8908 | [1] | MANIFOLD | |
| 8. | 141-5502Y | [1] | ACTUATOR GP-PILOT CONTROL(HOIST LOWER) | |
| 9. | 141-5503Y | [1] | ACTUATOR GP-PILOT CONTROL(HOIST RAISE) | |
| 10. | 8C-8407M | [3] | BOLT(M12X1.75X260-MM) | |
| 11. | 366-4699 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 360-3692 | [1] | PLUG | |
| 12. | 204-2124Y | [1] | VALVE GP-LOWERING CONTROL(HOIST) | |
| 13. | 218-4884 | [1] | VALVE GP-RELIEF(HOIST CONTROL) | |
| | 9X-7712 | [1] | SEAL-O-RING | |
| | 191-2962 | [1] | SEAL-O-RING | |
| 14. | 1H-1023 | [4] | SEAL-O-RING | |
| 15. | 2S-4078 | [1] | SEAL-O-RING | |
| 17. | 3K-0360 | [1] | SEAL-O-RING | |
| 18. | 4D-3107 | [2] | SEAL-O-RING | |
| 19. | 4J-0522 | [1] | SEAL-O-RING | |
| 20. | 4J-0523 | [1] | SEAL-O-RING | |
| 21. | 5P-1076 | [2] | WASHER-HARD(13.5X30X4-MM THK) | |
| 22. | 7J-9933 | [1] | SEAL-O-RING | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
