沃尔沃零件查询D11B1-A MP; D11B2-A MPSteering SystemMain Station IPS, Quad Installation, EVC-EEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
981 次

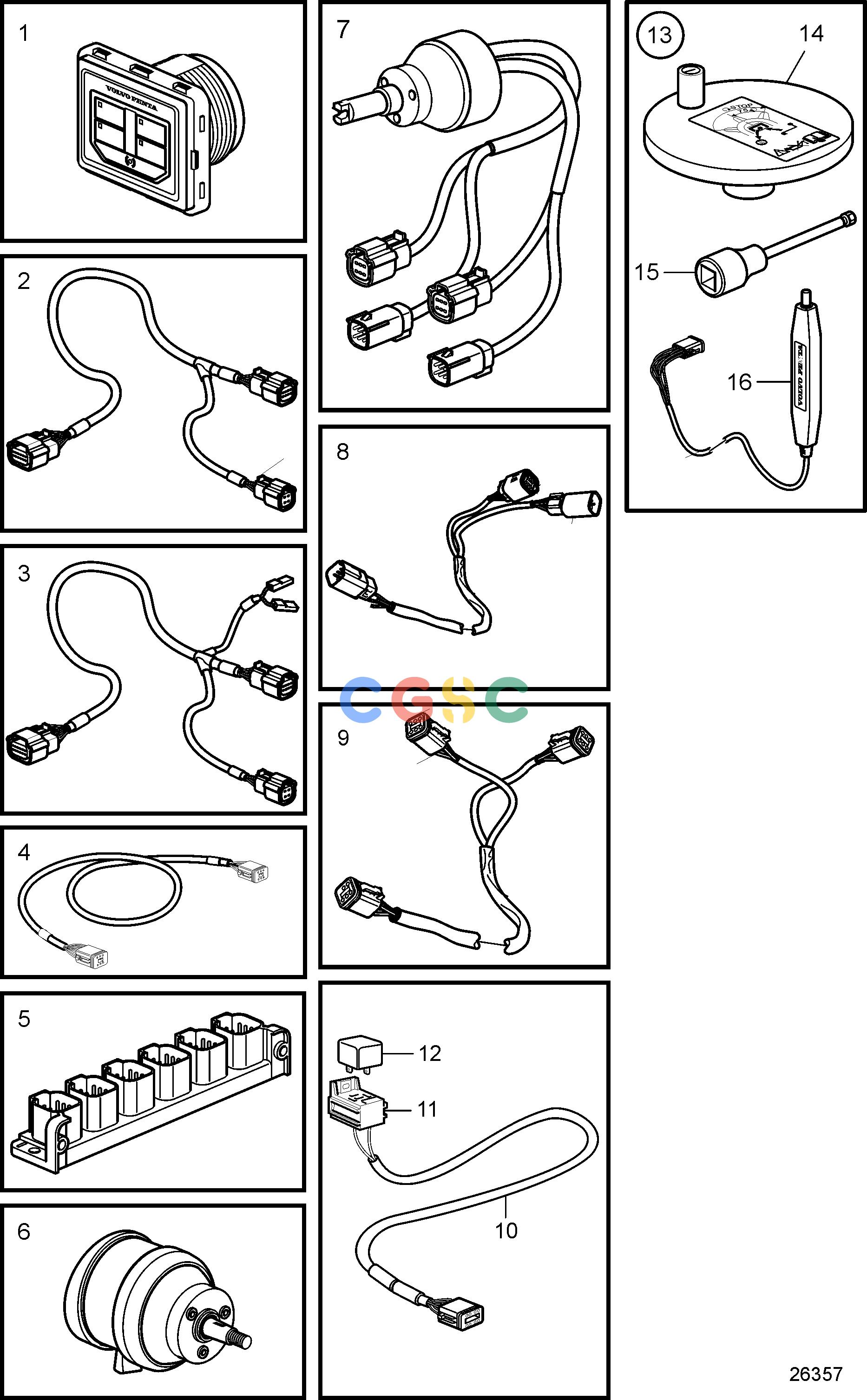

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21836809
|
[2] |
Panel
|
Twin panel
|
| 2. |
21693208
|
[1] |
Cable
|
e-Key twin harness
|
| 3. |
21876876
|
[1] |
Cable
|
e-Key quad harness
|
| 4. |
3886666
|
[7] |
Cable
|
|
| 5. |
21469055
|
[2] |
Connection block
|
|
| 6. |
21581323
|
[1] |
Steering wheel adjus
|
|
| 7. |
21469560
|
[1] |
Steering wheel hub
|
Replaced by 22353839
|
| 7. |
22353839
|
[1] |
Steering wheel hub
|
|
| 8. |
21421941
|
[2] |
Cable
|
For EVC system and hub 21469560.
|
| 9. |
21287072
|
[1] |
Wiring harness
|
|
| 10. |
21427463
|
[1] |
Cable
|
|
| 11. |
977184
|
[1] |
Housing
|
|
| 12. |
873765
|
[1] |
Relay
|
12V
|
| 12. |
3171420
|
[1] |
Relay
|
24V
|
| 13. |
21673149
|
[1] |
Safety box
|
|
| 14. |
3809570
|
[1] |
Crank
|
|
| 15. |
3863070
|
[1] |
Tool
|
|
| 16. |
21379527
|
[1] |
Switch
|
|
