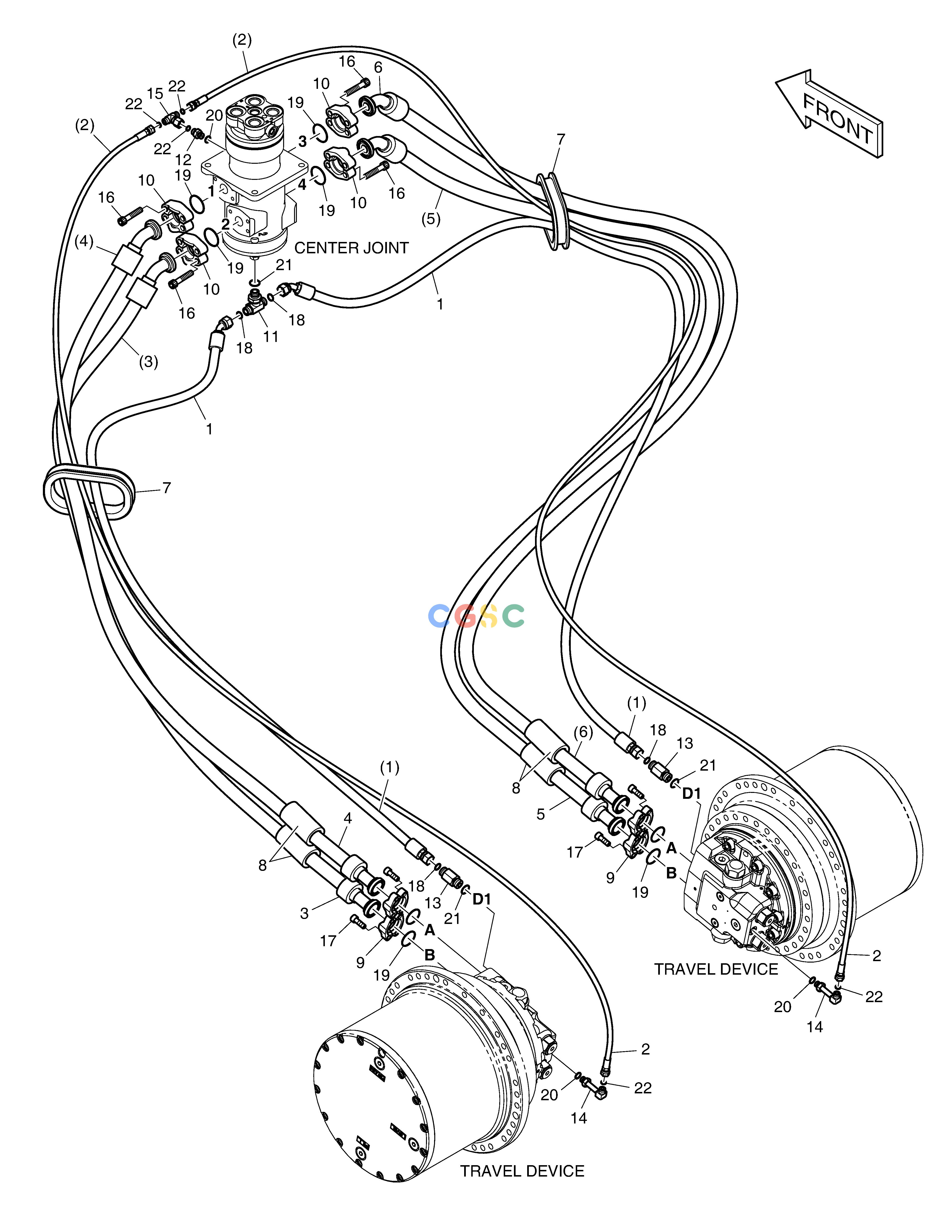

斗山零件查询TRAVEL PIPING DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
236 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08985
|
[-] |
|
|
| 1. |
DS20121141
|
[2] |
|
|
| 10. |
2181-9081
|
[8] |
FLANGE;SPLIT
|
|
| 11. |
181-00131D3
|
[1] |
TEE
|
|
| 12. |
2181-4133D1
|
[1] |
ADAPTER
|
|
| 13. |
2181-4133D37
|
[2] |
ADAPTER
|
|
| 14. |
2181-2815D8
|
[2] |
|
|
| 15. |
181-00130D1
|
[1] |
|
|
| 16. |
S2215466
|
[16] |
BOLT
|
|
| 17. |
S2212266
|
[16] |
BOLT
|
|
| 18. |
S8030081
|
[4] |
O-RING
|
|
| 19. |
2180-1026D19
|
[8] |
O-RING
|
|
| 2. |
DS2119210
|
[2] |
|
|
| 20. |
S8000111
|
[3] |
O-RING
|
|
| 21. |
S8000181
|
[3] |
O-RING
|
|
| 22. |
S8030041
|
[5] |
O-RING
|
|
| 3. |
DS2039317
|
[1] |
|
|
| 4. |
DS2039315
|
[1] |
|
|
| 5. |
DS2039317
|
[1] |
|
|
| 6. |
DS2039083
|
[1] |
HOSE
|
|
| 7. |
160-00069
|
[2] |
BUSHING;RUBBER
|
|
| 8. |
180102-00984
|
[4] |
|
|
| 9. |
2181-9083
|
[8] |
FLANGE;SPLIT
|
|
