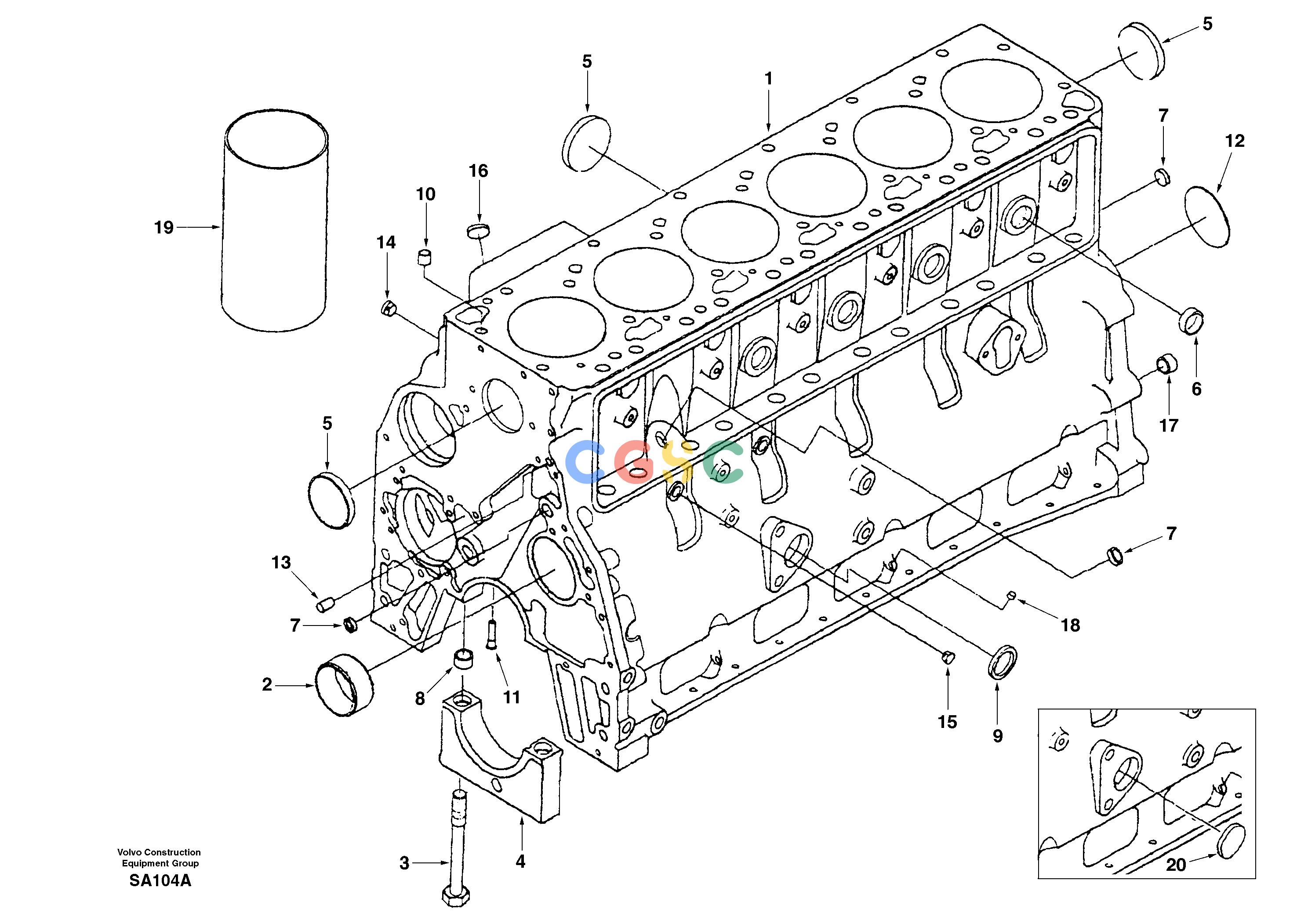

沃尔沃零件查询EC210 Cylinder blockNoneDD04B001-DD04B002NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
292 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA3905810
|
[1] |
Cylinder Block
|
|
| 2. |
SA3901306
|
[1] |
Bushing
|
|
| 3. |
SA3904217
|
[14] |
Screw
|
|
| 4. |
SA3936791
|
[7] |
Cap
|
|
| 5. |
SA3922072
|
[6] |
Plug
|
|
| 6. |
SA3007635
|
[4] |
Plug
|
|
| 7. |
SA3900956
|
[3] |
Plug
|
|
| 8. |
SA3900068
|
[14] |
Ring
|
|
| 9. |
SA3900958
|
[1] |
Plug
|
|
| 10. |
SA3902343
|
[2] |
Ring
|
|
| 11. |
SA3937214
|
[6] |
Nozzle
|
|
| 12. |
SA3900687
|
[1] |
Plug
|
|
| 13. |
SA3900257
|
[2] |
Locating pin
|
|
| 14. |
SA3008468
|
[1] |
Tube plug
|
|
| 15. |
SA3906619
|
[2] |
Plug
|
|
| 16. |
SA3027646
|
[1] |
Plug
|
|
| 17. |
SA3900068
|
[2] |
Ring
|
|
| 18. |
SA3900955
|
[2] |
Plug
|
|
| 19. |
SAJ904166
|
[REQ] |
Liner_piston
|
STANDARD BORE
|
| 20. |
SA3900958
|
[1] |
Plug
|
|
| 100. |
SA3933220
|
[1] |
Kit
|
SS 3933220
|
