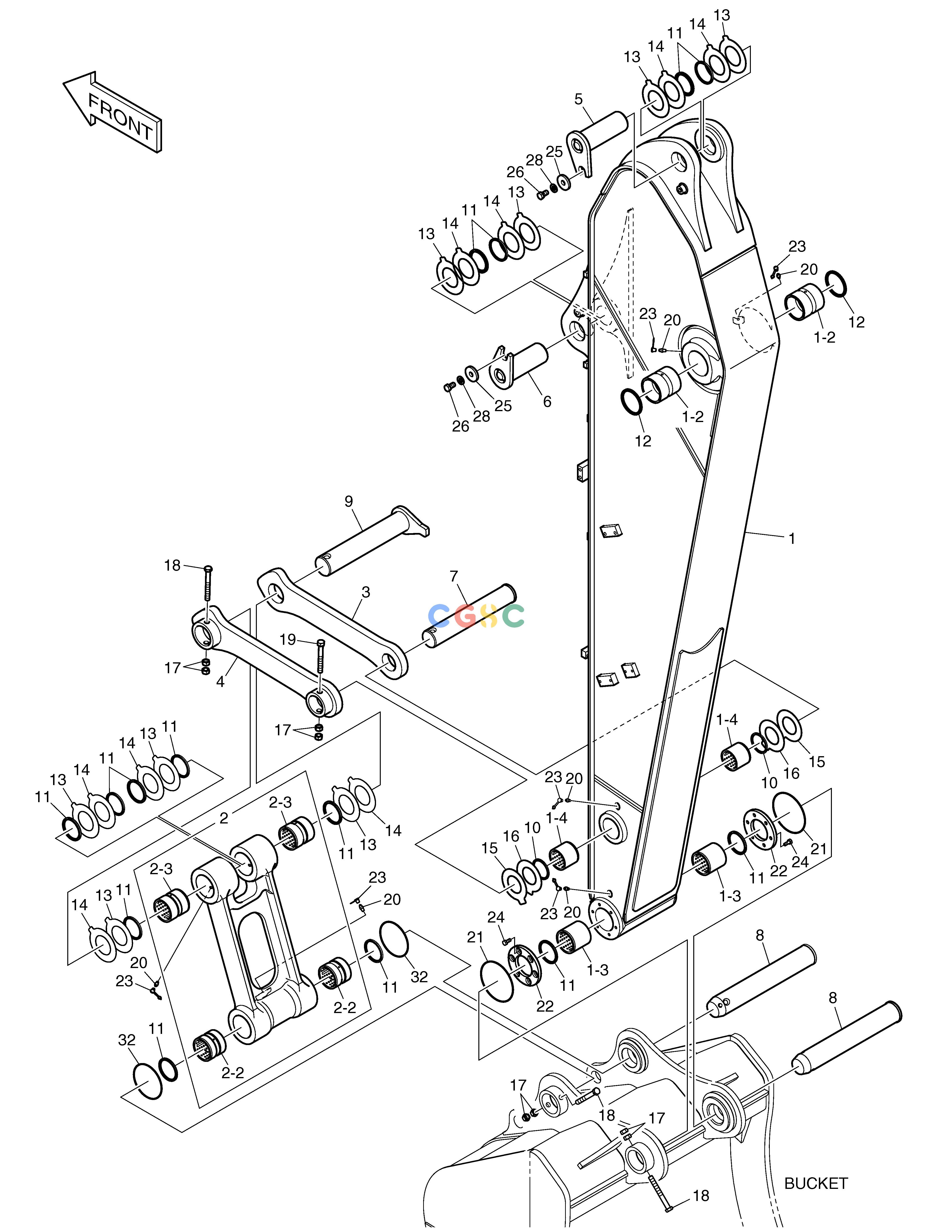

斗山零件查询ARM - 2.9m DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
409 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230201-00928
|
[1] |
|
|
| 1. |
230204-00064K
|
[1] |
|
|
| 1-2. |
131008-00064A
|
[2] |
|
|
| 1-3. |
131004-00023A
|
[2] |
|
|
| 1-4. |
131004-00024A
|
[2] |
|
|
| 10. |
DS5502004
|
[2] |
SEAL,DUST
|
|
| 11. |
DS5502024
|
[14] |
|
|
| 12. |
DS5502006
|
[2] |
|
|
| 13. |
DS7752012
|
[8] |
SHIM
|
|
| 14. |
DS7752013
|
[8] |
SHIM
|
|
| 15. |
DS7752006
|
[2] |
SHIM
|
|
| 16. |
DS7752007
|
[2] |
SHIM
|
|
| 17. |
S4012933
|
[8] |
NUT
|
|
| 18. |
DS0001084
|
[3] |
BOLT
|
|
| 19. |
DS0001083
|
[1] |
BOLT
|
|
| 2. |
101541-00151A
|
[1] |
|
|
| 2-2. |
131004-00026A
|
[2] |
|
|
| 2-3. |
131004-00025A
|
[2] |
|
|
| 20. |
S6710041
|
[7] |
NIPPLE,GREASE
|
|
| 21. |
DS2855005
|
[2] |
JOINT
|
|
| 22. |
110951-00130
|
[2] |
|
|
| 23. |
160-00020
|
[7] |
CAP
|
|
| 24. |
S0712066
|
[12] |
BOLT
|
|
| 25. |
2116-1060D6
|
[2] |
STOPPER
|
|
| 26. |
S0521266
|
[2] |
BOLT
|
|
| 28. |
2114-1816A
|
[2] |
WASHER
|
|
| 3. |
101540-00075
|
[1] |
|
|
| 32. |
DS2855003
|
[2] |
O-RING
|
|
| 4. |
101540-00076
|
[1] |
|
|
| 5. |
120501-01062
|
[1] |
|
|
| 6. |
120501-02711
|
[1] |
|
|
| 7. |
120501-01065
|
[1] |
|
|
| 8. |
120501-01052
|
[2] |
|
|
| 9. |
120501-02911
|
[1] |
|
|
| 9. |
120501-02911A
|
[1] |
|
|
