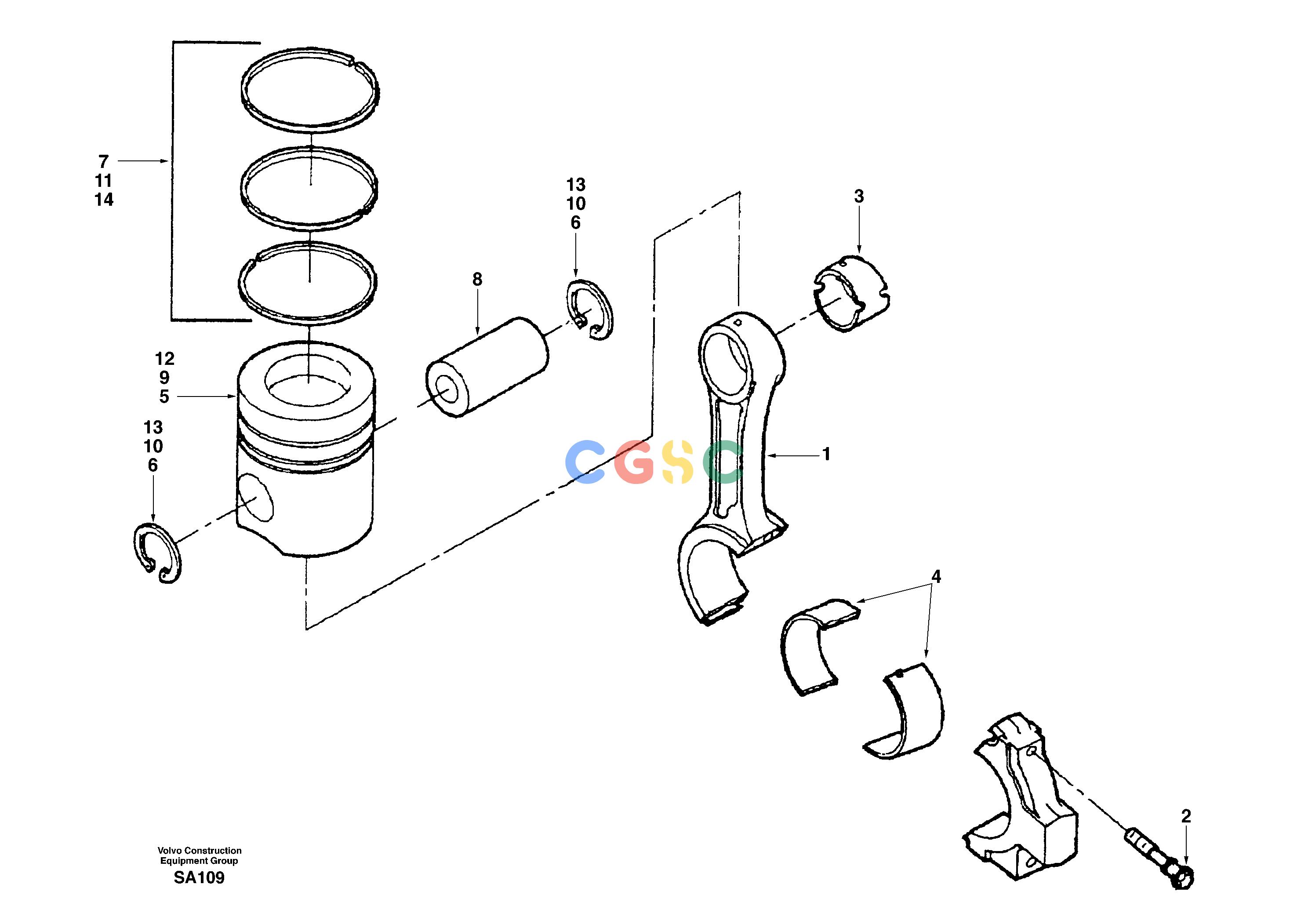

沃尔沃零件查询EC210 Connecting rod and pistonNoneDD04B001-DD04B002NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
266 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA3942581
|
[6] |
Connecting Rod
|
|
| 2. |
SA3900919
|
[2] |
Screw
|
|
| 3. |
SA3941476
|
[1] |
Bushing
|
|
| 4. |
SA3901170
|
[2] |
Bearing
|
STD
|
| |
SA3901171
|
[REQ] |
Bearing
|
0.25MM O SZ
|
| |
SA3901172
|
[REQ] |
Bearing
|
0.50MM O SZ
|
| |
SA3901173
|
[REQ] |
Bearing
|
0.75MM O SZ
|
| |
SA3901174
|
[REQ] |
Bearing
|
1.00MM O SZ
|
| 5. |
SA3802747
|
[6] |
Piston
|
STD
|
| |
SA3928673
|
[1] |
Piston
|
|
| 6. |
SA3920691
|
[2] |
Ring
|
|
| 7. |
SA3802746
|
[1] |
Piston ring kit
|
|
| 8. |
SA3901793
|
[6] |
Gudgeon pin
|
|
| 9. |
SA3802764
|
[6] |
Piston
|
0.50MM O SZ
|
| |
SA3928674
|
[1] |
Piston
|
0.50MM O SZ
|
| 10. |
SA3920691
|
[2] |
Ring
|
|
| 11. |
SA3802422
|
[1] |
Ring
|
0.50MM O SZ
|
| 12. |
SA3802765
|
[6] |
Piston
|
1.00MM O SZ
|
| 13. |
SA3920691
|
[2] |
Ring
|
|
| 14. |
SA3802423
|
[1] |
Ring
|
1.00MM O SZ
|
