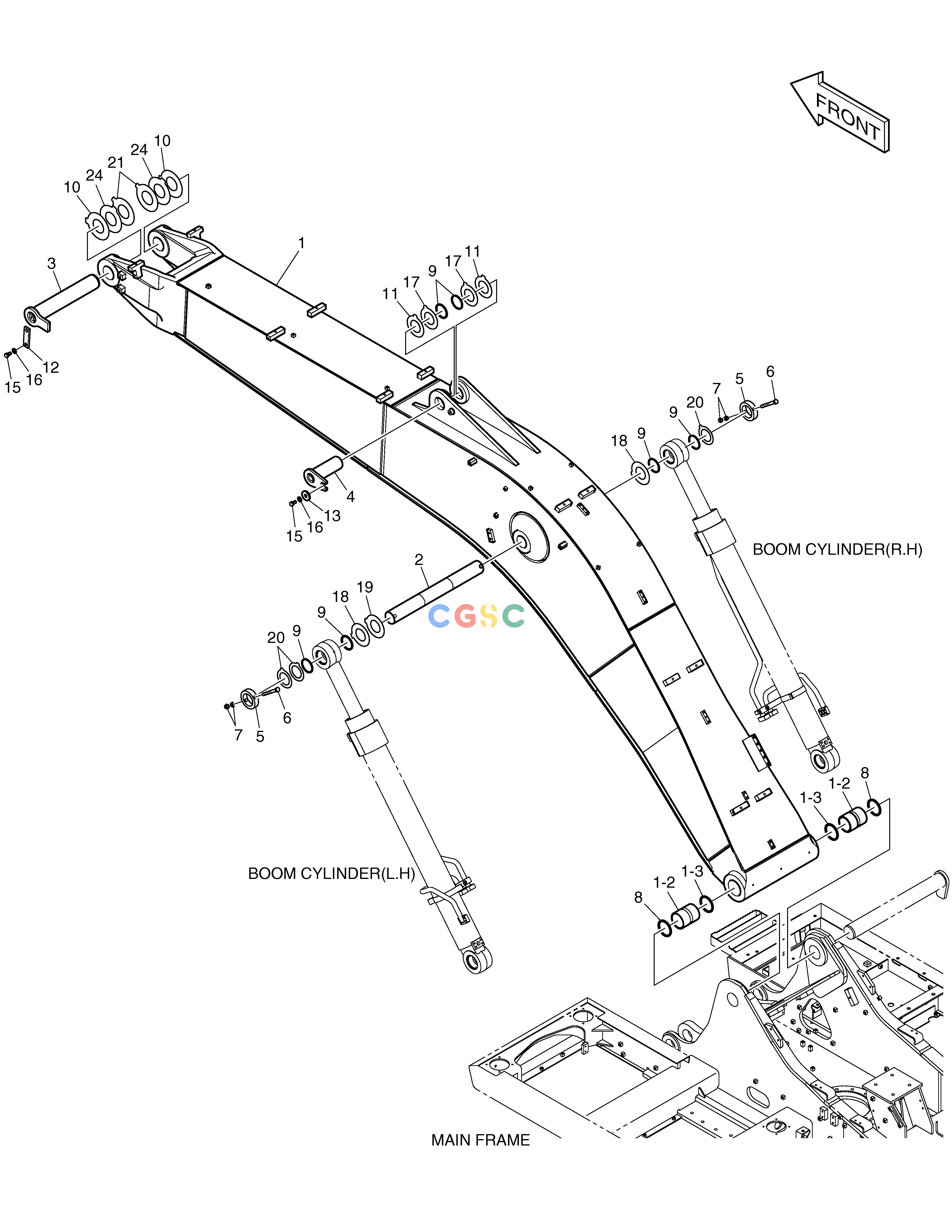

斗山零件查询BOOM - 5.7m DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
128 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230207-00325
|
[-] |
|
|
| 1. |
230211-00034H
|
[1] |
|
|
| 1-2. |
131008-00074A
|
[2] |
|
|
| 1-3. |
DS5502006
|
[2] |
|
|
| 10. |
DS7752018
|
[2] |
SHIM
|
|
| 11. |
DS7752012
|
[2] |
SHIM
|
|
| 12. |
621-03710A
|
[1] |
PLATE,STOPPER
|
|
| 13. |
2116-1060D6
|
[1] |
STOPPER
|
|
| 15. |
S0521266
|
[3] |
BOLT
|
|
| 16. |
2114-1816A
|
[3] |
WASHER
|
|
| 17. |
DS7752013
|
[2] |
SHIM
|
|
| 18. |
DS7752026
|
[2] |
SHIM
|
|
| 19. |
DS7752027
|
[1] |
SHIM
|
|
| 2. |
120501-02646
|
[1] |
|
|
| 20. |
DS7752025
|
[3] |
SHIM
|
|
| 21. |
DS7752017
|
[2] |
SHIM
|
|
| 24. |
DS7752093
|
[2] |
SHIM
|
|
| 3. |
2123-2185G
|
[1] |
PIN
|
|
| 4. |
120501-01062
|
[1] |
|
|
| 5. |
110956-00459
|
[2] |
|
|
| 6. |
S0567066
|
[2] |
BOLT
|
|
| 7. |
S4012933
|
[4] |
NUT
|
|
| 8. |
DS5502006
|
[2] |
|
|
| 9. |
DS5502024
|
[6] |
|
|
