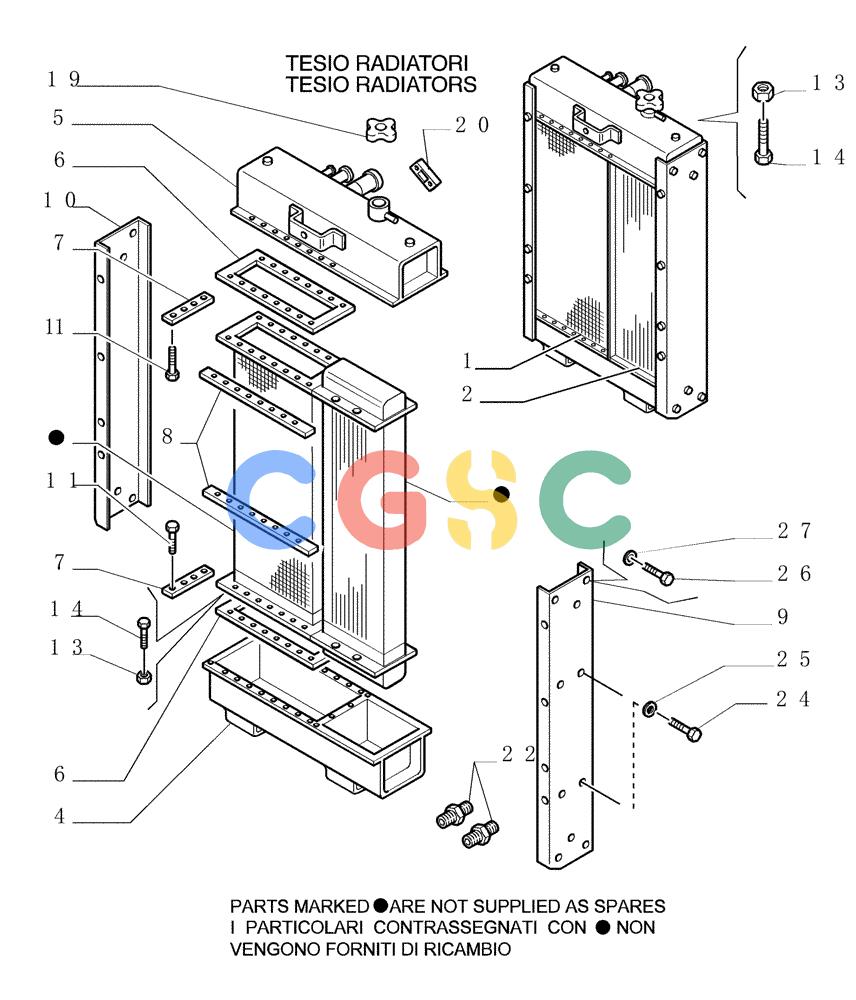

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (0.550[04]) - WATER RADIATOR - COMPONENTS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
330 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | 76068086 | [1] | OIL COOLER | LEC- TRANSMISSION |
| 6. | 76068082 | [2] | GASKET | LEC Superseded by part number: 76069563 |
| 7. | 76068081 | [4] | STRAP | LEC- SIDE Superseded by part number: 76069565 |
| 8. | 76068080 | [4] | STRAP | LEC Superseded by part number: 76069564 |
| 9. | 76068079 | [1] | SIDE PANEL | LEC- RIGHT |
| 10. | 76068078 | [1] | SIDE PANEL | LEC- LEFT |
| 11. | 16043831 | [16] | SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd | BHB Superseded by part number: |
| 13. | 16100821 | [64] | NUT,M8, Cl 10 | LEC Superseded by part number: 43362 |
| 14. | 16043621 | [48] | BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd | CAS Superseded by part number: |
| 19. | 76046337 | [1] | CAP | LEC Superseded by part number: 76069569 |
| 20. | 76069662 | [1] | LEVEL GAUGE | LEC- LEVEL |
| 22. | 76068088 | [2] | HYD CONNECTOR | LEC Superseded by part number: 9824055 |
| 25. | 12645031 | [4] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
| 26. | 11106231 | [12] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9 | LEC |
| 27. | 12626231 | [12] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
