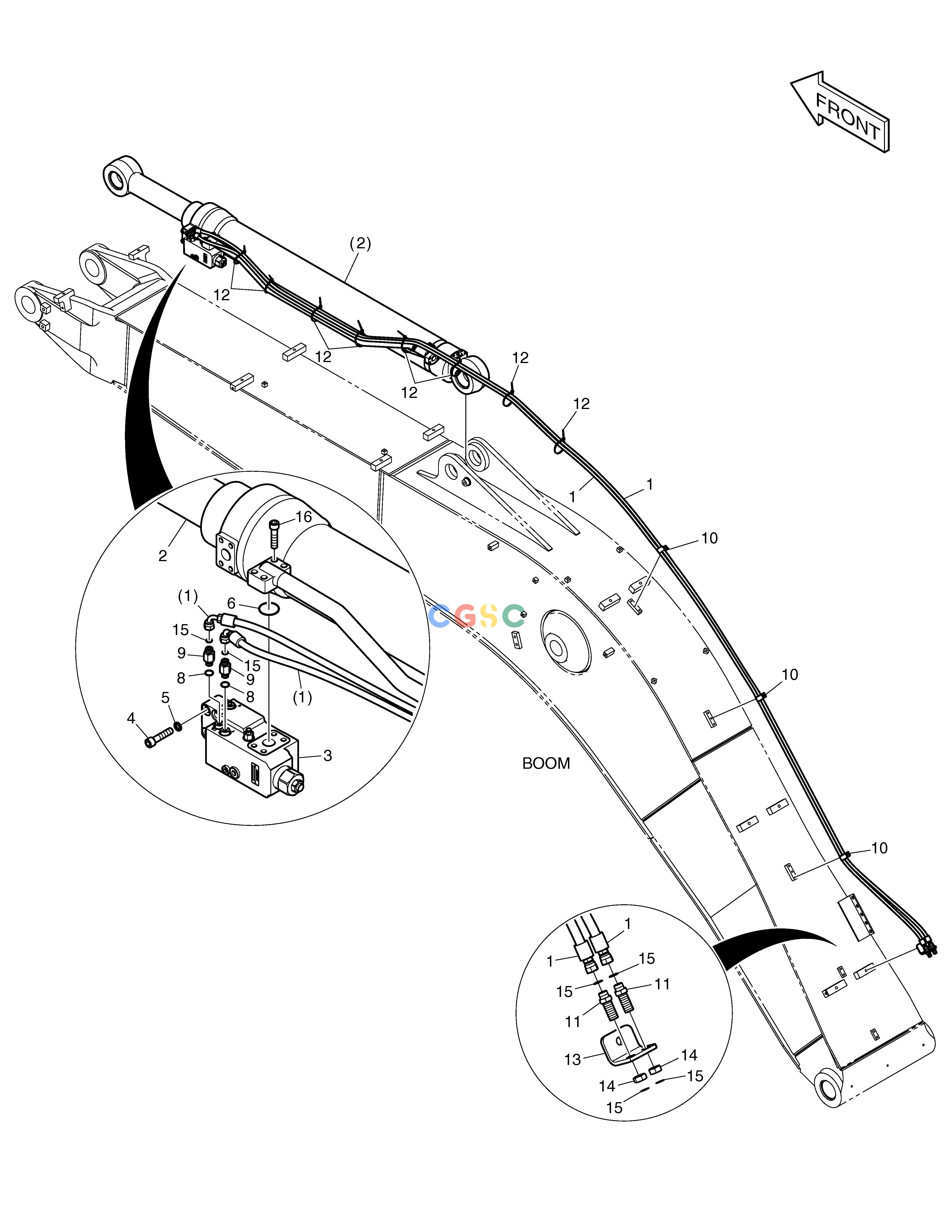

斗山零件查询BOOM PIPING - ARM LOCK VALVE DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
680 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-11928
|
[-] |
|
|
| 1. |
DS20132120
|
[2] |
|
|
| 10. |
DS2805009
|
[3] |
CLIP
|
|
| 11. |
DS2248004
|
[2] |
ELBOW;45 DEG
|
|
| 12. |
2124-1084D3
|
[8] |
CLIP;BAND
|
|
| 13. |
110406-00605A
|
[1] |
|
|
| 14. |
DS0301066
|
[2] |
|
|
| 15. |
S8030041
|
[6] |
O-RING
|
|
| 16. |
S2215666
|
[4] |
BOLT;SOCKET
|
|
| 2. |
400305-00357A
|
[1] |
|
400305-00357B
|
| 2. |
400305-00357B
|
[1] |
|
|
| 3. |
410114-00241
|
[1] |
|
|
| 4. |
S2215766
|
[4] |
BOLT
|
|
| 5. |
S5110703
|
[4] |
WASHER
|
|
| 6. |
DS2856003
|
[1] |
O-RING
|
|
| 8. |
S8000111
|
[2] |
O-RING
|
|
| 9. |
DS2232212
|
[2] |
|
|
