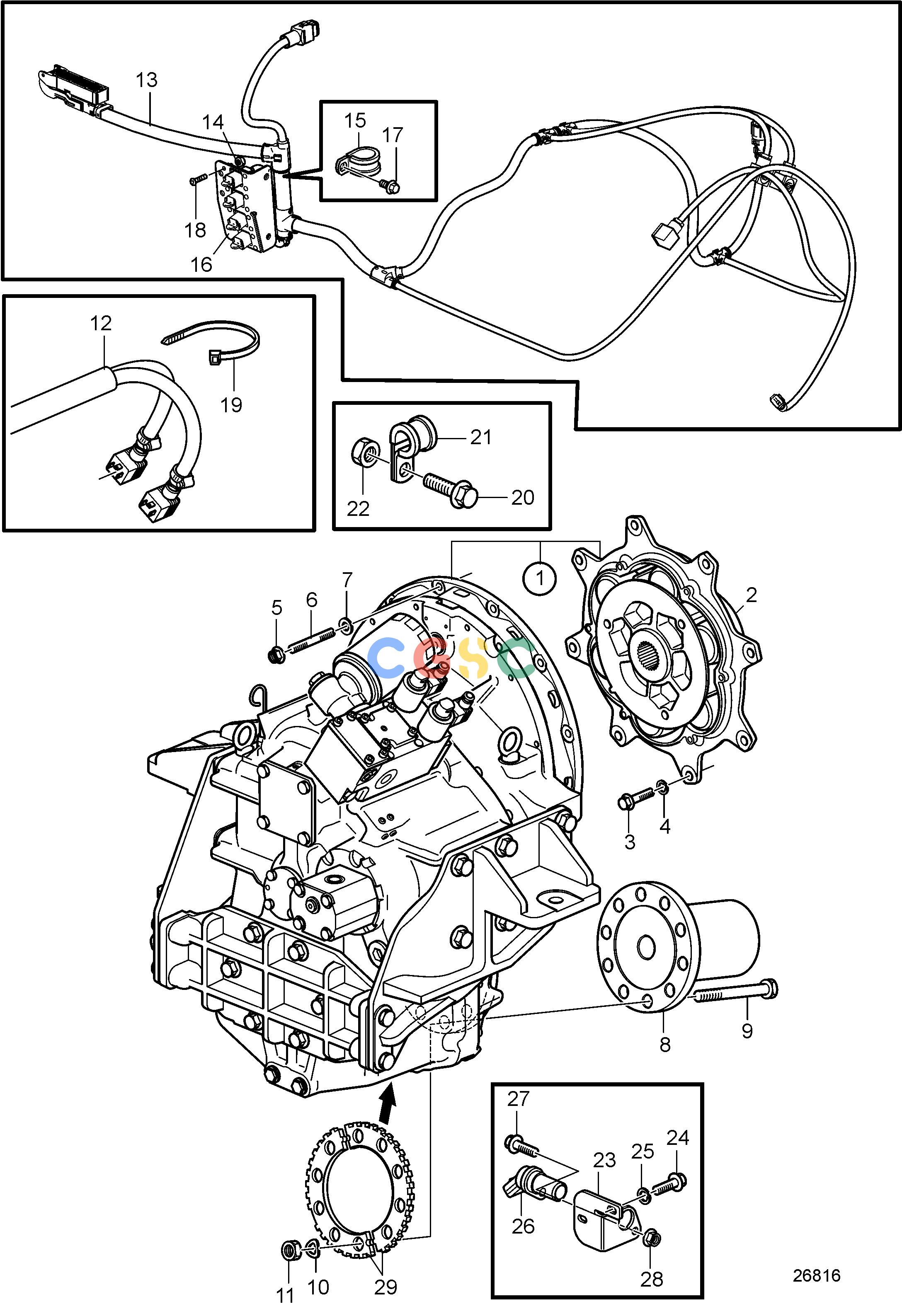

沃尔沃零件查询D11B1-A MP; D11B2-A MPTransmissionsConnecting Components for ZF325IV-EEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
948 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
Ratio 2.03:1
|
| 2. |
21509619
|
[1] |
Roller kit
|
|
| 3. |
993879
|
[8] |
Hexagon screw
|
|
| 4. |
976945
|
[8] |
Washer
|
|
| 5. |
984755
|
[12] |
Flange screw
|
|
| 6. |
479972
|
[12] |
Stud
|
|
| 7. |
942336
|
[12] |
Spring washer
|
|
| 8. |
864087
|
[1] |
Clutch flange
|
|
| 9. |
980253
|
[10] |
Hexagon screw
|
|
| 10. |
941913
|
[10] |
Spring washer
|
|
| 11. |
943674
|
[10] |
Lock nut
|
|
| 12. |
3594238
|
[1] |
Wiring harness
|
|
| 13. |
22191290
|
[1] |
Wiring harness
|
EVC-E
|
| 14. |
963103
|
[16] |
Lock nut
|
|
| 15. |
990059
|
[1] |
Clamp
|
|
| 16. |
21751128
|
[1] |
Bracket
|
|
| 17. |
994383
|
[1] |
Flange screw
|
|
| 18. |
969515
|
[16] |
Six point socket scr
|
|
| 19. |
948211
|
[1] |
Cable tie
|
|
| 20. |
984725
|
[2] |
Flange screw
|
|
| 21. |
952632
|
[1] |
Clamp
|
|
| 22. |
990949
|
[1] |
Flange lock nut
|
|
| 23. |
3841424
|
[1] |
Bracket
|
|
| 24. |
994442
|
[2] |
Flange screw
|
|
| 25. |
941906
|
[2] |
Spring washer
|
|
| 26. |
21426987
|
[1] |
Speed monitor, tachometer sender, reverse gear
|
|
| 27. |
984725
|
[1] |
Flange screw
|
|
| 28. |
990949
|
[1] |
Flange lock nut
|
|
| 29. |
3841413
|
[2] |
Sprocket wheel
|
|
