沃尔沃零件查询EC210 CrankshaftNoneDD04B001-DD04B002NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
957 次

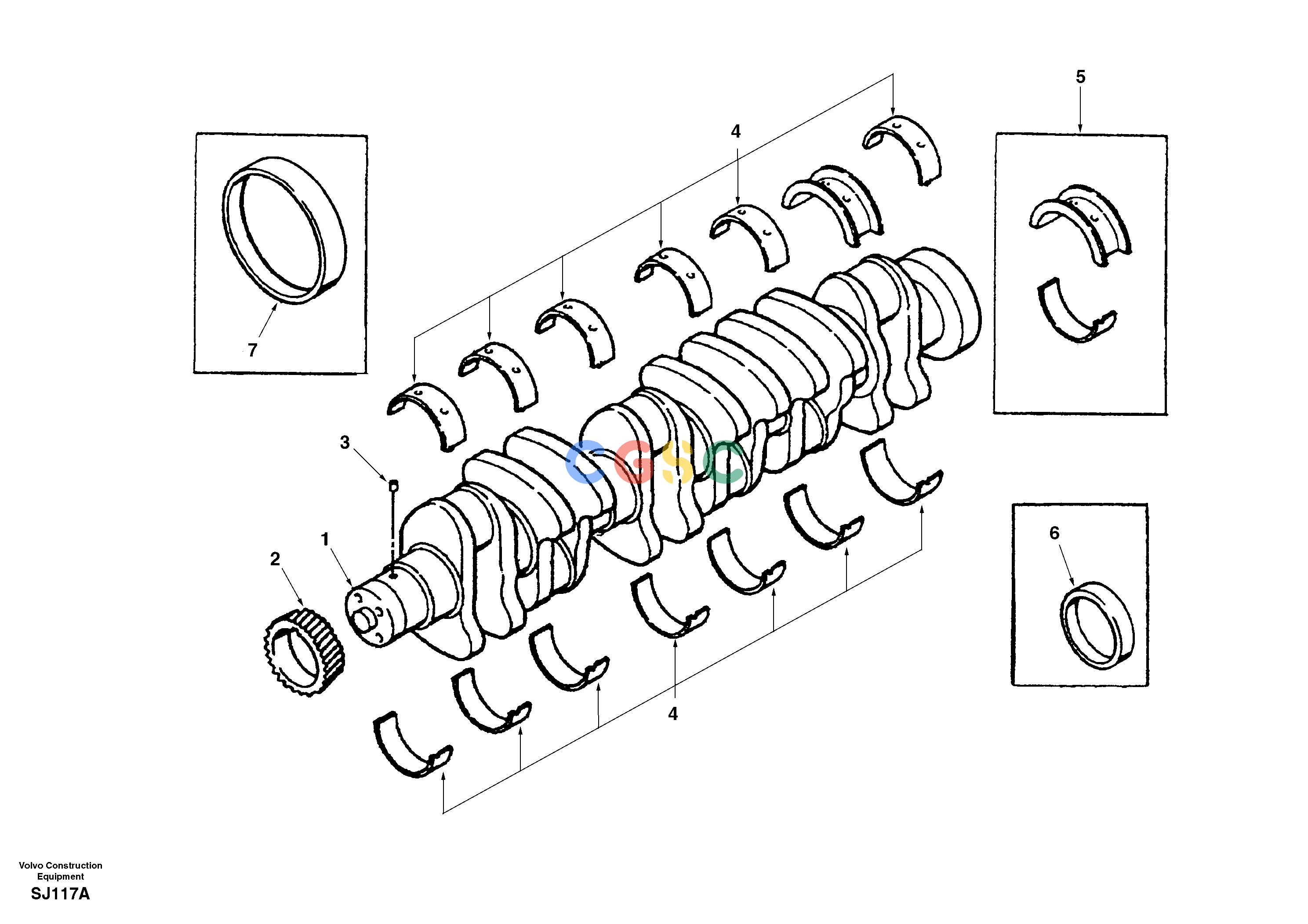

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA3905730
|
[1] |
Crankshaft
|
|
| |
SA3905619
|
[1] |
Crankshaft
|
|
| 2. |
SA3929026
|
[1] |
Gear
|
|
| 3. |
SA3904483
|
[1] |
Locating pin
|
|
| 4. |
SA3802070
|
[1] |
Bearing
|
STD
|
| |
SA3802071
|
[1] |
Bearing
|
0.25MM O SZ
|
| |
SA3802072
|
[1] |
Bearing
|
0.50MM O SZ
|
| |
SA3802073
|
[1] |
Bearing
|
0.75MM O SZ
|
| |
SA3802074
|
[1] |
Bearing
|
0.75MM O SZ THRUST
|
| 5. |
SA3802082
|
[1] |
Bearing
|
0.5MM O SZ THRUST
|
| |
SA3802084
|
[1] |
Bearing
|
1.0MM O SZ THRUST
|
| 6. |
SA3906080
|
[1] |
Sleeve
|
FRONT
|
| 7. |
SA3906081
|
[1] |
Sleeve
|
REAR
|
