沃尔沃零件查询D11B1-A MP; D11B2-A MPTransmissionsInterceptor IS1050EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
696 次

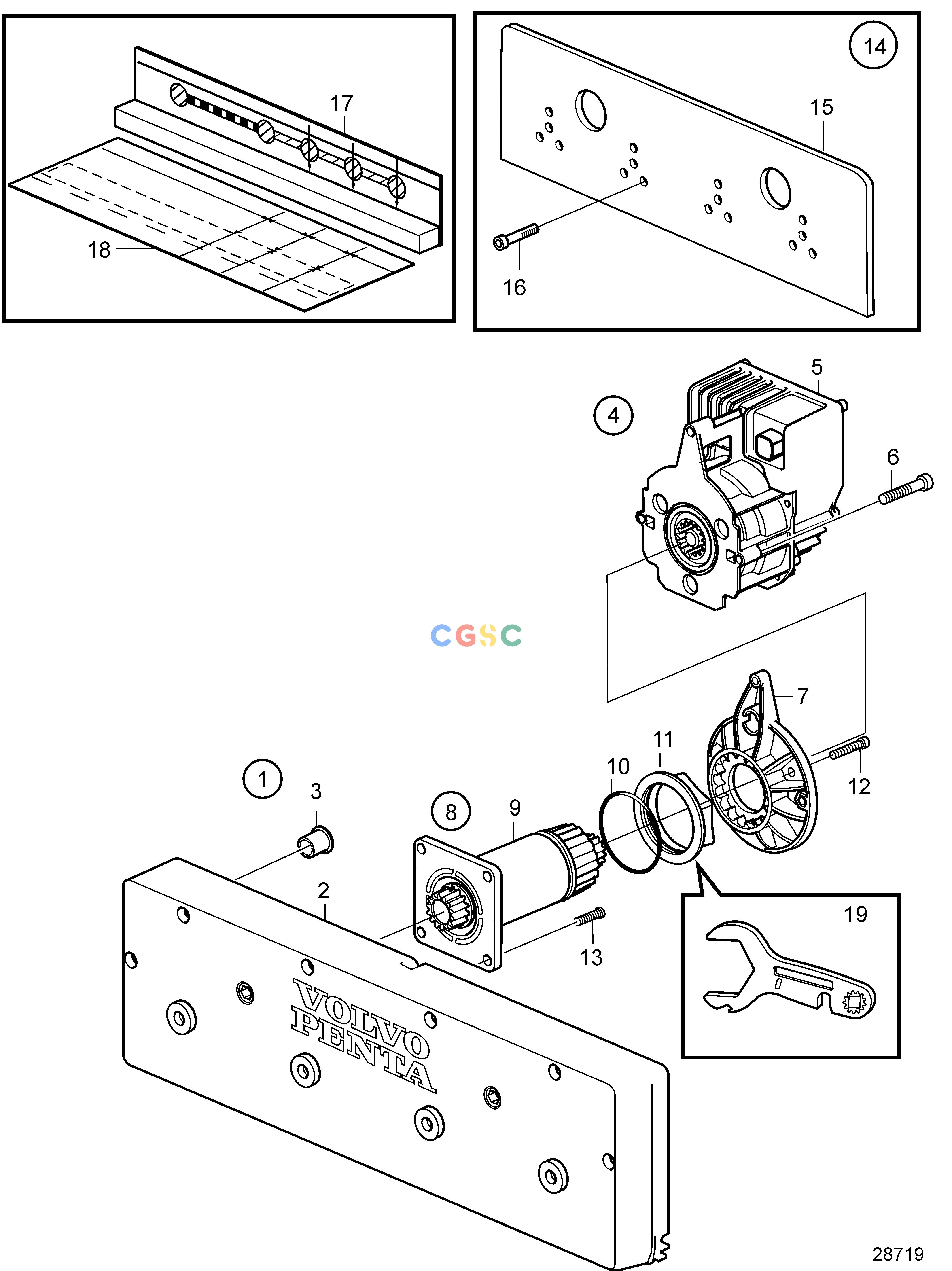

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
21947169
|
[1] |
Kit
|
|
| 2. |
|
|
|
|
| 3. |
22173239
|
[14] |
Sealing plug
|
|
| 4. |
21948237
|
[2] |
Kit
|
|
| 5. |
21875630
|
[1] |
Servo unit
|
|
| 6. |
997677
|
[3] |
Hex. socket screw
|
|
| 7. |
21888972
|
[2] |
Drive plate
|
|
| 8. |
21888969
|
[1] |
Drive shaft kit
|
|
| 9. |
|
|
|
|
| 10. |
22088469
|
[1] |
O-ring
|
|
| 11. |
21890405
|
[1] |
Flange nut
|
|
| 12. |
21890471
|
[3] |
Six point socket scr
|
|
| 13. |
21955937
|
[4] |
Six point socket scr
|
|
| 14. |
22728822
|
[1] |
Mounting plate kit
|
|
| 15. |
|
|
|
|
| 16. |
996642
|
[14] |
Hex. socket screw
|
|
| 17. |
21970434
|
[1] |
Drill template
|
|
| 18. |
21970436
|
[1] |
Support
|
|
| 19. |
21888526
|
[1] |
Spanner
|
|
