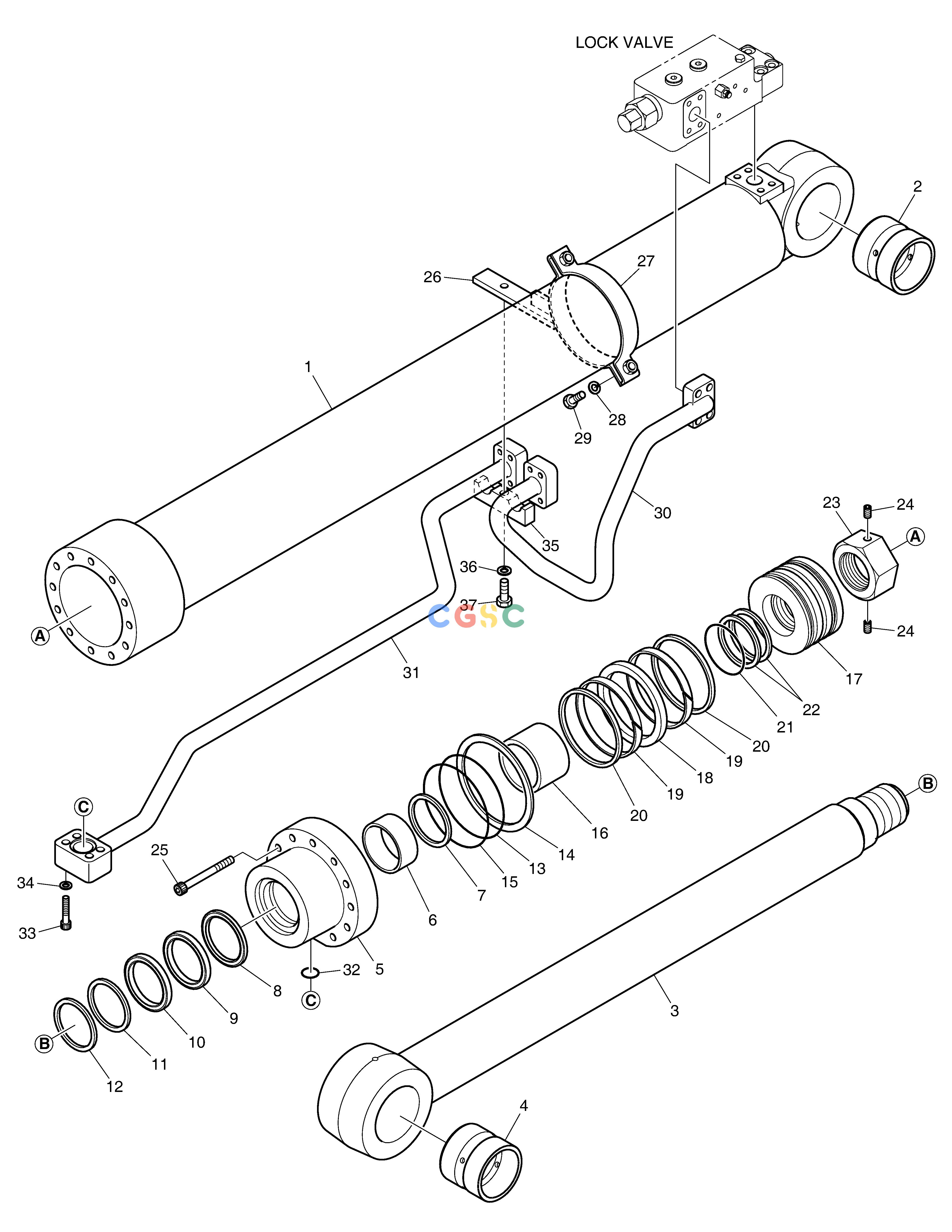

斗山零件查询BOOM CYLINDER(L.H)-LOCK VALVE DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
137 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K9004899
|
[1] |
SEAL KIT
|
|
| -. |
400309-00520A
|
[1] |
|
|
| 1. |
420402-00518-DG
|
[1] |
|
|
| 10. |
111102-00163
|
[1] |
|
|
| 11. |
115-00072
|
[1] |
WIPER;DUST
|
|
| 12. |
115-00073
|
[1] |
RING;RETAINING
|
|
| 13. |
S8011251
|
[1] |
O-RING
|
|
| 14. |
180-00266
|
[1] |
RING;BACK-UP
|
|
| 15. |
S8011301
|
[1] |
O-RING
|
|
| 16. |
K9004886
|
[1] |
RING;CUSHION
|
|
| 17. |
K9004892
|
[1] |
PISTON
|
|
| 18. |
K9004898
|
[1] |
SEAL;SLIPPER
|
|
| 19. |
115-00074
|
[2] |
RING;WEAR
|
|
| 2. |
131008-00067A
|
[1] |
|
|
| 20. |
K9004887
|
[2] |
RING;DUST
|
|
| 21. |
S8010701
|
[1] |
O-RING
|
|
| 22. |
K9001156
|
[2] |
RING;BACK UP
|
|
| 23. |
120312-00352
|
[1] |
|
|
| 24. |
S3523836
|
[2] |
SCREW;SET
|
|
| 25. |
S2222171
|
[12] |
BOLT
|
|
| 26. |
110902-00303-DG
|
[1] |
|
|
| 27. |
110902-00069-DG
|
[1] |
|
|
| 28. |
S5100603
|
[2] |
WASHER
|
|
| 29. |
S0558153
|
[2] |
BOLT
|
|
| 3. |
400337-00748-DG
|
[1] |
|
|
| 30. |
420210-02066-DG
|
[1] |
|
|
| 31. |
420210-02068-DG
|
[1] |
|
|
| 32. |
S8000281
|
[1] |
O-RING
|
|
| 33. |
S2212761
|
[4] |
BOLT;SOCKET
|
|
| 34. |
S5100603
|
[4] |
WASHER
|
|
| 35. |
124-00058-DG
|
[1] |
|
|
| 36. |
S5100703
|
[1] |
WASHER;SPRING
|
|
| 37. |
S0561053
|
[1] |
BOLT
|
|
| 4. |
131008-00067A
|
[1] |
|
|
| 5. |
110508-23230-DG
|
[1] |
|
|
| 6. |
K9009859
|
[1] |
DD-BUSH
|
|
| 7. |
115-00063
|
[1] |
RING;RETAINING
|
|
| 8. |
1.180-00657
|
[1] |
SEAL;BUFFER
|
|
| 9. |
K9001153
|
[1] |
U-PACKING
|
|
