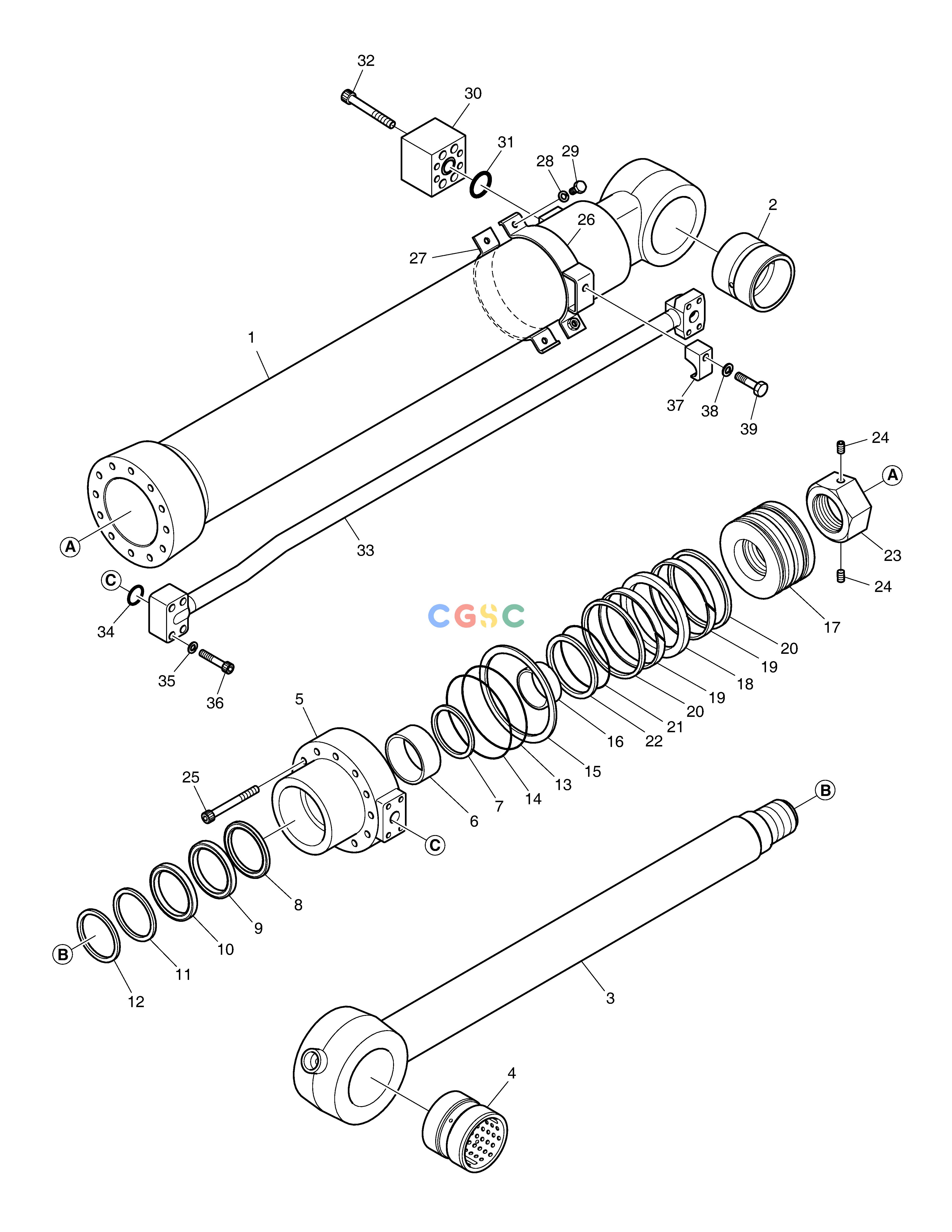

斗山零件查询BUCKET CYLINDER - ARM 2.4m DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
836 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-01220
|
[1] |
|
|
| -. |
400310-00277A
|
[1] |
|
|
| 1. |
420406-01649-DG
|
[1] |
|
|
| 10. |
K9001877
|
[1] |
RING;BACK UP
|
|
| 11. |
115-00059
|
[1] |
WIPER;DUST
|
|
| 12. |
115-00051
|
[1] |
RING;RETAINING
|
|
| 13. |
S8011201
|
[1] |
O-RING
|
|
| 14. |
K9001859
|
[1] |
RING;BACK UP
|
|
| 15. |
S8011251
|
[1] |
O-RING
|
|
| 16. |
1.115-00204
|
[1] |
RING;CUSHION
|
|
| 17. |
130602-00859
|
[1] |
|
|
| 18. |
K9001890
|
[1] |
SEAL;SLIPPER
|
|
| 19. |
115-00087
|
[2] |
RING;WEAR
|
|
| 2. |
131008-00067A
|
[1] |
|
|
| 20. |
K9001861
|
[2] |
RING;DUST
|
|
| 21. |
S8010651
|
[1] |
O-RING
|
|
| 22. |
1.180-00277
|
[2] |
RING;BACK UP
|
|
| 23. |
120312-00071A
|
[1] |
|
|
| 24. |
120706-00007
|
[2] |
SCREW,SET
|
|
| 25. |
S2222171
|
[12] |
BOLT
|
|
| 26. |
110902-00304-DG
|
[1] |
|
|
| 27. |
K9004396-DG
|
[1] |
|
|
| 28. |
S5100703
|
[2] |
WASHER;SPRING
|
|
| 29. |
S0560563
|
[2] |
BOLT
|
|
| 3. |
400337-00749-DG
|
[1] |
|
|
| 30. |
1.229-00023-DG
|
[1] |
|
|
| 31. |
S8000281
|
[1] |
O-RING
|
|
| 32. |
S2212666
|
[4] |
BOLT;SOCKET M10X1.5X50
|
|
| 33. |
420210-02070-DG
|
[1] |
|
|
| 34. |
S8000281
|
[1] |
O-RING
|
|
| 35. |
S5100603
|
[4] |
WASHER
|
|
| 36. |
S2212371
|
[4] |
BOLT
|
|
| 37. |
K9001413-DG
|
[1] |
CLAMP,PIPE
|
|
| 38. |
S5102903
|
[1] |
WASHER
|
|
| 39. |
S0565451
|
[1] |
BOLT
|
|
| 4. |
131004-00027A
|
[1] |
|
|
| 5. |
110508-23231-DG
|
[1] |
|
|
| 6. |
110-00079
|
[1] |
DD-BUSH
|
|
| 7. |
115-00050
|
[1] |
RING;RETAINING
|
|
| 8. |
K9001857
|
[1] |
SEAL;BUFFER
|
|
| 9. |
K9001858
|
[1] |
U-PACKING
|
|
