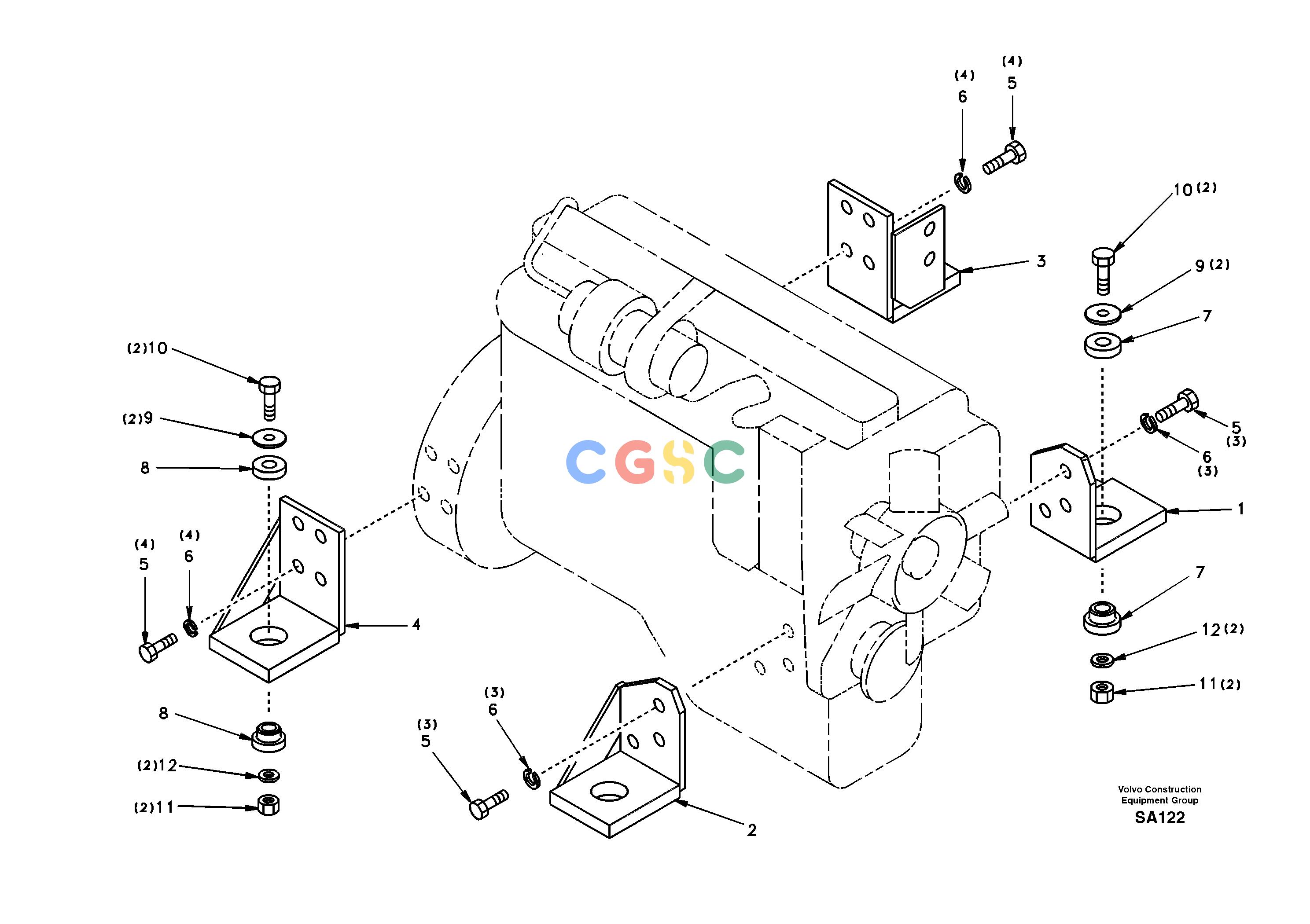

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | SA1112-00010 | [1] | Bracket | |
| 2. | SA1112-00020 | [1] | Bracket | |
| 3. | SA1112-00030 | [1] | Bracket | |
| 4. | SA1112-00040 | [1] | Bracket | |
| 5. | VOE993029 | [14] | Hexagon screw | |
| 6. | SA9213-12000 | [14] | Spring washer | |
| 7. | VOE14526154 | [2] | Cushion | FRONT |
| 8. | VOE14526155 | [2] | Cushion | REAR |
| 9. | SA2012-00110 | [4] | Plate | |
| 10. | VOE992992 | [4] | Hexagon screw | |
| 11. | VOE991655 | [4] | Hexagon nut | |
| 12. | VOE992059 | [4] | Plain washer |
