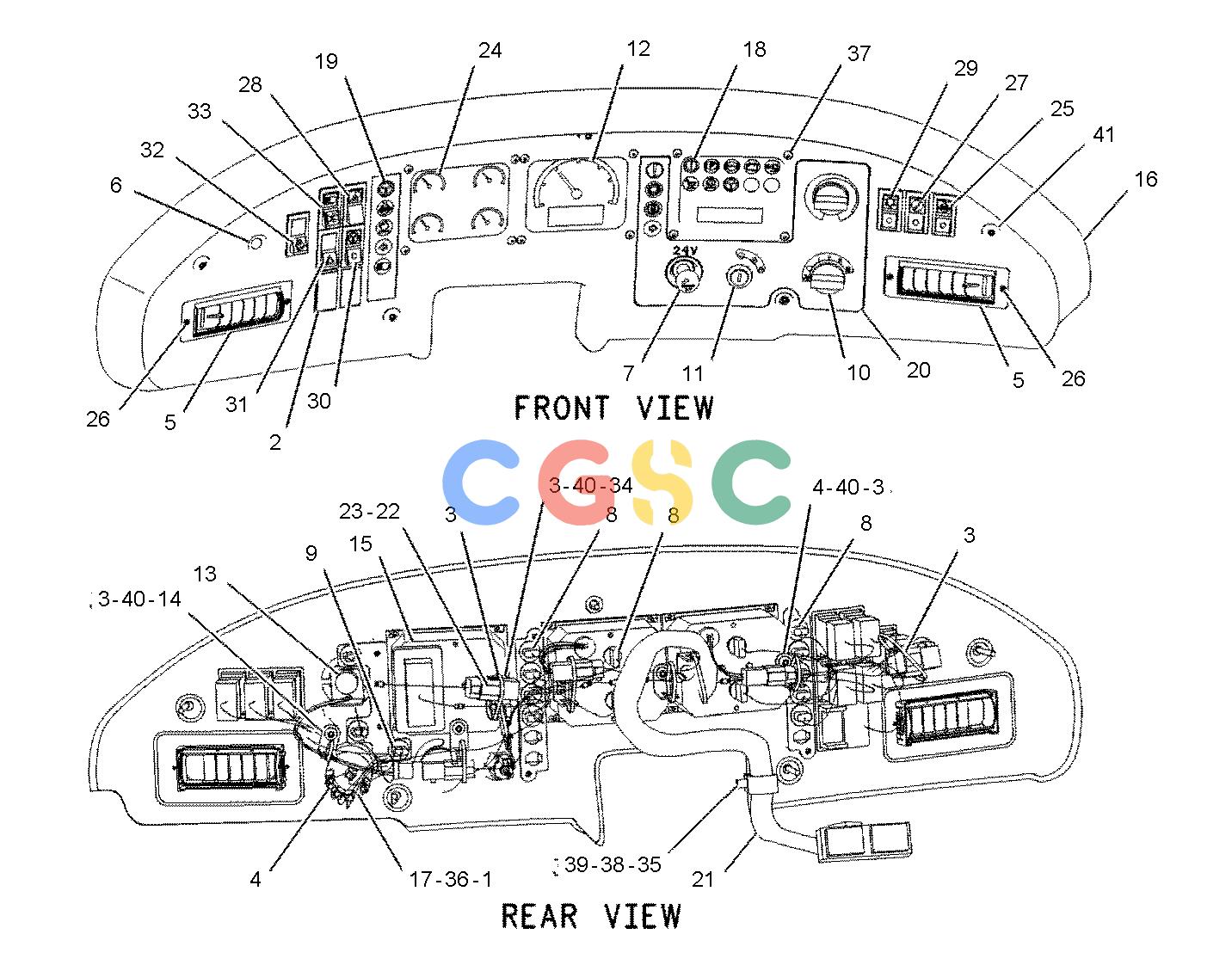

| 1. | 2P-4339 | [1] | NUT-JAM(7/16-28-THD) | |
| 2. | 3E-0109 | [2] | PLUG(ROCKER SWITCH) | |
| 3. | 3S-2093 | [9] | STRAP-CABLE | |
| 4. | 7T-1874 | [6] | TERMINAL-BLADE | |
| 5. | 8Y-6388 | [2] | LOUVER AS-VENT | |
| 6. | 9D-3737 | [1] | PLUG-BUTTON | |
| 7. | 9W-0335 | [1] | LIGHTER AS-CIGAR(24-VOLT) | |
| 8. | 107-1983 | [13] | LAMP(24-VOLT) | |
| 9. | 110-2079 | [3] | LAMP(24-VOLT) | |
| 10. | 110-6109 | [2] | KNOB-CONTROL(TEMPERATURE) | |
| 11. | 110-7887 | [1] | SWITCH AS-START(KEY) | |
| | 7T-6799 | [1] | NUT-MOUNTING(1-32-THD) | |
| | 186-3735 | [4] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 12. | 125-6806Y | [1] | MODULE GP-SPEEDOMETER & TACH | |
| 13. | 291-2165 | [1] | POTENTIOMETER AS(TEMPERATURE CONTROL) | |
| | 236-8722 | [1] | WASHER(10.5X22.2X1.6-MM THK) | |
| | 186-3735 | [1] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 14. | 132-5789 | [5] | CLIP(LADDER) | |
| 15. | 252-4503 | [1] | CONTROL GP-UNPROGRAMMED(CATERPILLAR MONITORING SYSTEM) | |
| 16. | 155-8806 | [1] | PANEL AS | |
| 17. | 157-0217 | [1] | SWITCH AS-ROTARY(FAN SPEED) | |
| | 6V-8362 | [6] | SCREW-MACHINE(8-32X0.31-IN) | |
| | 9B-7233 | [6] | LOCKWASHER | |
| 18. | 162-7260 | [1] | FILM-IDENTIFICATION | |
| 19. | 162-7261 | [1] | FILM-INFORMATION(DASH INDICATOR) | |
| 20. | 162-7262 | [1] | FILM-INFORMATION(DASH) | |
| 21. | 162-7263 | [1] | HARNESS AS(INSTRUMENT PANEL) | |
| | 102-8806 | [1] | KIT-RECEPTACLE(8-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 155-2271 | [1] | KIT-CONNECTING PLUG(4-PIN) | |
| | 155-2274 | [2] | KIT-CONNECTING PLUG(6-PIN) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2265 | [2] | KIT-CONNECTING PLUG(8-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 5P-6271 | [1] | CONNECTOR AS | |
| | 3E-7790 | [20] | TERMINAL-BLADE(18-GA TO 20-GA) | |
| | 3E-7996 | [9] | PLUG-CONNECTOR(6-PIN) | |
| | 3E-7998 | [28] | TERMINAL-BLADE(12-GA) | |
| | 3S-2093 | [45] | STRAP-CABLE | |
| | 6T-6505 | [7] | HOUSING-RECEPTACLE(BLADE, POSITIVE LOCK) | |
| | 6T-6506 | [7] | TERMINAL-BLADE(14-GA TO 18-GA) | |
| | 8T-8729 | [7] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 8T-8730 | [103] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 8T-9834 | [1] | PLUG AS-CONNECTOR(40-PIN) | |
| | 3E-4367 | [1] | RING-RETAINING | |
| | 3E-8557M | [1] | BOLT(M5X0.8X39.37-MM) | |
| | 9X-3132 | [2] | SEAL-CONNECTOR(40-PIN) | |
| | 9G-3695 | [46] | PLUG-SEAL | |
| | 9W-0844 | [5] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 9X-4391 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | 3E-4367 | [1] | RING-RETAINING | |
| | 3E-8557M | [1] | BOLT(M5X0.8X39.37-MM) | |
| | 9X-5615 | [2] | SEAL(INTERFACE, 70-PIN) | |
| | 065-5071 | [5] | TERMINAL-BLADE(14-GA TO 16-GA) | |
| | 107-1984 | [12] | SOCKET-LAMP | |
| | 113-5183 | [4] | SOCKET-LAMP | |
| | 113-5184 | [32] | TERMINAL-RECEPTACLE(16-GA TO 18-GA) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(26-CM) | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(30-CM) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(20-CM) | |
| 22. | 162-7265B | [1] | WIRE AS | |
| 23. | 162-7266B | [1] | WIRE AS | |
| 24. | 166-6938Y | [1] | MODULE GP-QUAD GAUGE | |
| 25. | 170-1330 | [1] | SWITCH AS-ROCKER(DIFFERENTIAL LOCK) | |
| | 3E-8856 | [1] | SWITCH AS-ROCKER | |
| | 3E-8825 | [2] | LAMP(24-VOLT) | |
| | 170-1332 | [1] | ACTUATOR | |
| 26. | 104-2091 | [4] | SCREW-FLAT HEAD(6-20X0.5-IN) | |
| 27. | 220-8358 | [1] | SWITCH AS-ROCKER(24-VOLT)(MODE SELECT) | |
| 28. | 123-5849 | [1] | SWITCH AS-ROCKER(REAR WORK LAMP) | |
| | 3E-8763 | [1] | SWITCH AS(24-VOLT) | |
| | 3E-8782 | [1] | ACTUATOR | |
| | 3E-8825 | [1] | LAMP(24-VOLT) | |
| 29. | 125-9257 | [1] | SWITCH AS-ROCKER(AIR CONDITIONER SELECT) | |
| | 3E-8857 | [1] | SWITCH AS-ROCKER | |
| | 3E-8825 | [2] | LAMP(24-VOLT) | |
| | 126-1699 | [1] | ACTUATOR | |
| 30. | 155-2702 | [1] | SWITCH AS-ROCKER(SECONDARY STEERING) | |
| | 108-8162 | [1] | SWITCH AS | |
| | 3E-8816 | [1] | ACTUATOR | |
| | 3E-8825 | [2] | LAMP(24-VOLT) | |
| 31. | 155-2703 | [1] | SWITCH AS-ROCKER(HAZARD FLASHER) | |
| | 3E-8859 | [1] | SWITCH AS | |
| | 3E-8825 | [1] | LAMP(24-VOLT) | |
| | 155-2704 | [1] | ACTUATOR | |
| 32. | 3E-7160 | [1] | SWITCH AS-ROCKER(START AID) | |
| | 3E-9045 | [1] | SWITCH AS | |
| | 3E-8798 | [1] | ACTUATOR | |
| | 3E-8825 | [1] | LAMP(24-VOLT) | |
| 33. | 3E-9317 | [1] | SWITCH AS-ROCKER(24-VOLT)(HEAD/TAIL DASH LAMP) | |
| | 3E-8772 | [1] | SWITCH-ROCKER(24-VOLT)(HEADLIGHTS, TAIL LIGHTS) | |
| | 3E-8825 | [2] | LAMP(24-VOLT) | |
| | 3E-9326 | [1] | ACTUATOR | |
| 34. | 4P-8134 | [1] | CLIP(LADDER) | |
| 35. | 6V-1889 | [1] | CLIP(LOOP) | |
| 36. | 7F-6998 | [1] | LOCKWASHER | |
| 37. | 7Y-7388M | [12] | SCREW-BUTTON HEAD(M5X0.8X12-MM) | |
| 38. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 39. | 8T-4191M | [1] | BOLT(M10X1.5X16-MM) | |
| 40. | 9X-2042M | [7] | SCREW-TRUSS HEAD(M6X1X12-MM) | |
| 41. | 9X-2046M | [5] | SCREW-TRUSS HEAD(M6X1X35-MM) | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
