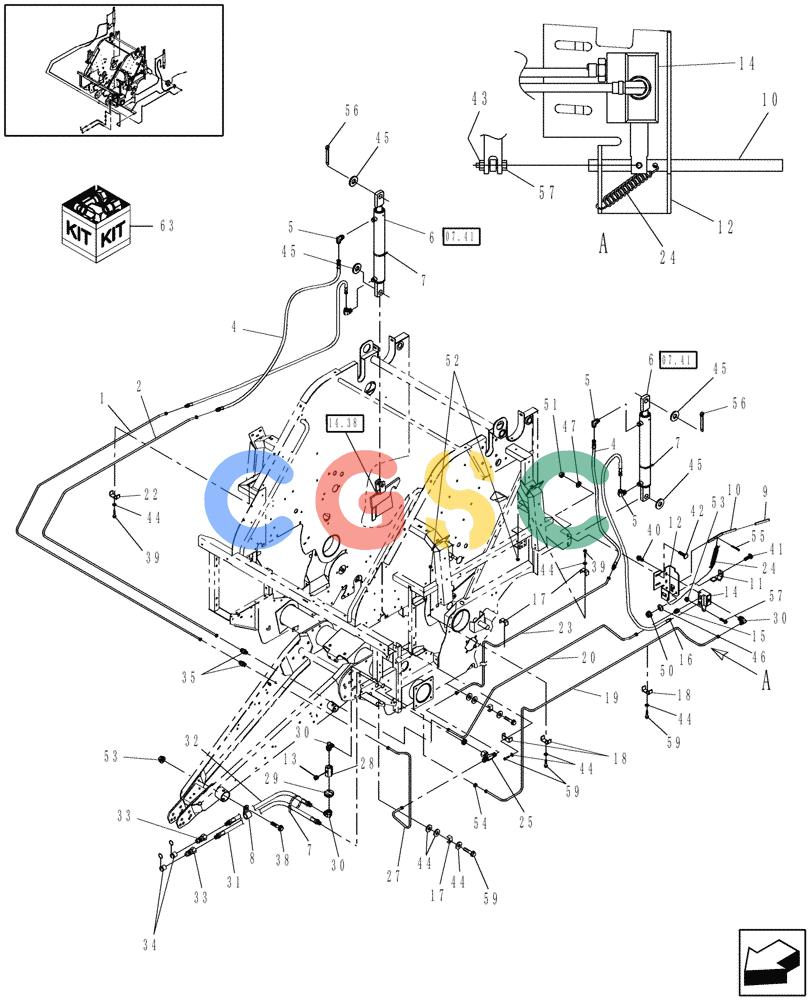

| 1. |
86615431
|
[1] |
HYD TUBE,9.50 mm OD
|
NH
Includes: Ref. 65 & 66
|
| 2. |
86615436
|
[1] |
HYD TUBE,9.50 mm OD
|
NH
Includes: Ref. 65 & 66
|
| 4. |
603741
|
[3] |
FLEXIBLE HOSE,0.38" ID x 24.00", SAE 100R1
|
NH
9/16"-18 Male to Female
|
| 5. |
218-5105
|
[4] |
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
Includes: Ref 62, 3/8" Tube Superseded by part number: 76344, 72186128
|
| 6. |
87019624
|
[2] |
CYLINDER ASSY.,Double Acting, 31.75mm Rod, 685.8mm Stroke
|
PA
Tailgate Lift
|
| 7. |
529070
|
[4] |
CABLE TIE,368.3mm L
|
NH
CABLE STRAP
|
| 8. |
86628564
|
[2] |
CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type
|
ZED
Superseded by part number: 515-23317
|
| 9. |
9822419
|
[1] |
HANDLE
|
NH
|
| 10. |
87014412
|
[1] |
HANDLE
|
PA
Superseded by part number: 87656081
|
| 11. |
86505881
|
[1] |
SPRING CLIP
|
PA
|
| 12. |
86505231
|
[1] |
CHANNEL
|
PA
Superseded by part number: 87656362
|
| 13. |
9672438
|
[1] |
PLUG,7/16" - 20 ORB
|
WIN
|
| 14. |
9822383
|
[1] |
HYDRAULIC VALVE
|
NH
Includes: Ref. 63
|
| 15. |
517310
|
[1] |
HYD CONNECTOR
|
NH
Rigid, Male, 9/16"-18 SAE to 3/4"-16 SAE, Includes: Ref. 61
|
| 16. |
86641134
|
[1] |
HOSE
|
NH
|
| 17. |
604901
|
[5] |
CLAMP
|
NH
Single, 3/8" Tubing
|
| 18. |
87053830
|
[3] |
CLAMP
|
PA
Double, 1/2' Tubing
|
| 19. |
86615434
|
[1] |
TUBE,9.50 mm OD
|
NH
3/8" OD x .049 Wall, Includes: Ref. 60 & 64
|
| 19. |
87043395
|
[1] |
HYD TUBE,0.50" OD
|
PA
1/2" OD x .065 Wall, Includes: Ref. 65 & 66
|
| 20. |
86615433
|
[1] |
HYD TUBE,9.50 mm OD
|
NH
Includes: Ref. 60 & 64
|
| 22. |
604896
|
[2] |
CLAMP,Dual, 3/8" Hose, 6mm Bolt
|
NH
Double, 3/8" Tubing Superseded by part number: 183825C1
|
| 23. |
86615432
|
[1] |
HYD TUBE,9.50 mm OD
|
NH
Includes: Ref. 60 & 64
|
| 24. |
217465
|
[1] |
SPRING
|
NH
Extension
|
| 25. |
87022794
|
[1] |
3 WAY CONNECTION
|
NH
Swivel Nut Branch
|
| 26. |
86500924
|
[4] |
GROMMET
|
NH
|
| 27. |
86619981
|
[1] |
HYD TUBE,9.50 mm OD
|
NH
Includes: Ref. 60 & 64
|
| 28. |
9846768
|
[1] |
HYD CONNECTOR
|
NH
Straight Thread Superseded by part number: 87656363
|
| 29. |
86630002
|
[1] |
ORIFICE,15.88mm OD x 5.08mm Thk
|
NH
|
| 30. |
218-5106
|
[1] |
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
|
CAS
Includes: Ref. 61 Superseded by part number: 72186176, 128830
|
| 31. |
86632192
|
[1] |
HOSE,9.53mm ID x 3708.4mm L, SAE 100R17
|
NH
.62" OD
|
| 32. |
86632191
|
[1] |
HOSE,12.7mm ID x 3708.4mm L, SAE 100R17
|
NH
|
| 33. |
9801618
|
[2] |
QUICK MALE COUPLING,1/2" - 14
|
NH
Male, 1/2"-14 NPTF Superseded by part number: 9412
|
| 34. |
86621124
|
[2] |
DUST CAP
|
NH
Black
|
| 35. |
322897
|
[2] |
HYD CONNECTOR,9/16" - 18 x 9/16" - 18
|
NH
(Union)
|
| 38. |
844-10030
|
[2] |
BOLT,Hvy Hex, M10 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 9840672
|
| 39. |
814-6030
|
[4] |
BOLT,Hex, M6 x 1 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 87317695
|
| 40. |
256873
|
[2] |
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
|
NH
|
| 41. |
811-6016
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8
|
CAS
Superseded by part number: 86512439
|
| 42. |
811-8020
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86507486
|
| 43. |
88826
|
[1] |
LOCK NUT,#10-24, GA
|
NH
|
| 44. |
495-21031
|
[14] |
WASHER,1/4"
|
CAS
Superseded by part number: 80701, 72187262
|
| 45. |
495-11106
|
[4] |
WASHER,1", SAE
|
CAS
Superseded by part number: 87367
|
| 46. |
322357
|
[1] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 47. |
322358
|
[2] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 50. |
825-2406
|
[1] |
FLANGE NUT,M6 x 1, Cl 8.8
|
CAS
Superseded by part number: 9804276
|
| 51. |
825-2408
|
[2] |
FLANGE NUT,M8 x 1.25, Flg, Cl 8
|
CAS
Superseded by part number: 86505868
|
| 52. |
832-46406
|
[9] |
NUT,M6 x 1, Cl 8
|
CAS
Superseded by part number: 353308
|
| 53. |
825-2410
|
[1] |
FLANGE NUT,M10 x 1.5, Flg, Cl 8
|
CAS
Superseded by part number: 9804278, 87778057
|
| 54. |
173011
|
[1] |
GROMMET,1” ID x 1.750” OD x .500” Tk
|
NH
1-3/4" OD x 1" ID
|
| 55. |
86523956
|
[1] |
COTTER PIN,5/32" x 1"
|
PA
Superseded by part number: 83903970
|
| 56. |
432-1228
|
[2] |
COTTER PIN,3/16" x 1 3/4"
|
CAS
Superseded by part number: 87399
|
| 57. |
86900322
|
[1] |
SCREW,Phillips Drive, Truss HD, #10 - 24 x 1-1/4", SST
|
PA
Truss Hd, Stainless Steel, #10-24 x 1-1/4"
|
| 59. |
814-6040
|
[6] |
BOLT,Hex, M6 x 1 x 40mm, Cl 8.8
|
CAS
Superseded by part number: 120102
|
| 60. |
514926
|
[1] |
TUBE NUT,37 Degree, 9/16"-18, Type B
|
NH
|
| 61. |
237-6008
|
[1] |
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
|
CAS
Superseded by part number: 128825
|
| 62. |
237-6006
|
[1] |
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
|
CAS
Superseded by part number: 9617873
|
| 63. |
9848054
|
[1] |
SEAL KIT
|
NH
Services Ref. 14 Superseded by part number: 279864
|
| 64. |
222-1584
|
[1] |
FERRULE,Flareless, 3/8" Tube
|
CAS
Superseded by part number: 514929
|
| 65. |
218-344
|
[1] |
TUBE NUT,37 Degree, 3/4"-16, Type B
|
CAS
Superseded by part number: 129428
|
| 66. |
218-364
|
[1] |
SLEEVE,37 Degree, 1/2" Tube
|
CAS
Superseded by part number: 235671
|
