卡特零件查询（725） 177-4935: RECLINER GP-SEAT
广数供应链运营团队, 14 02月, 2025，浏览：
303 次

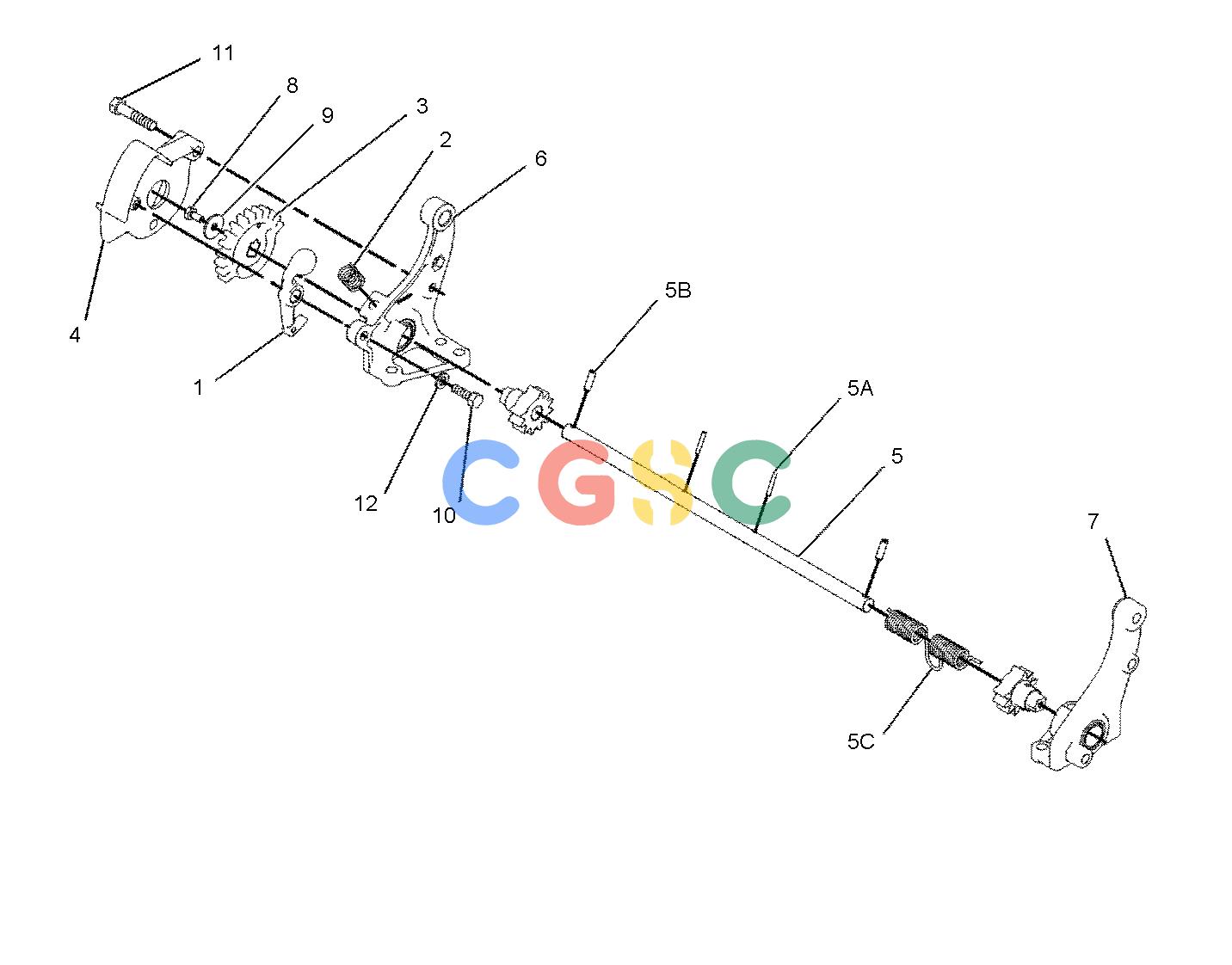

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 217-7933 | [1] | LATCH | |
| 2. | 164-4146 | [1] | SPRING | |
| 3. | 177-1860 | [1] | GEAR(14-TEETH) | |
| 4. | 177-1862 | [1] | BRACKET(SEAT BELT) | |
| 5. | 178-0607 | [1] | SHAFT AS | |
| 5A. | 2L-5893 | [2] | PIN-SPRING | |
| 5B. | 192-5627 | [2] | PIN | |
| 5C. | 170-8590 | [1] | SPRING | |
| 6. | 178-0608 | [1] | BRACKET AS | |
| 7. | 178-0609 | [1] | BRACKET AS | |
| 8. | 031-0214 | [1] | BOLT-LOCKING(1/4-20X0.5-IN) | |
| 9. | 101-2867 | [1] | WASHER-HARD(7.2X25X2-MM THK) | |
| 10. | 4M-6425 | [1] | BOLT(5/16-18X1-IN) | |
| 11. | 5S-7383 | [1] | BOLT(3/8-16X1.75-IN) | |
| 12. | 8T-4224 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
