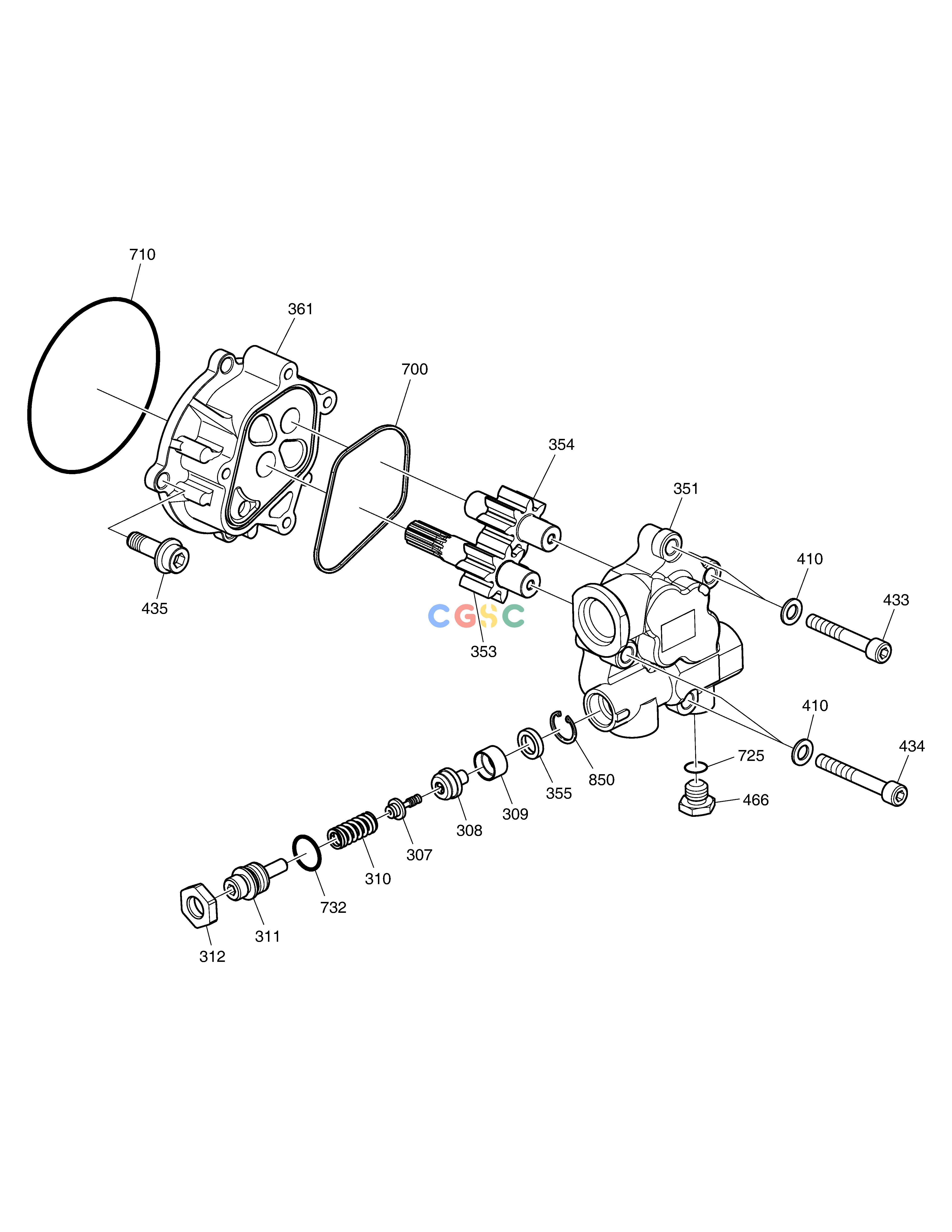

斗山零件查询GEAR PUMP DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
261 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400910-00267
|
[1] |
|
|
| 307. |
110938-00032
|
[1] |
|
|
| 308. |
1.427-00002
|
[1] |
SEAT
|
|
| 309. |
411-00017
|
[1] |
RING
|
|
| 310. |
129-00045A
|
[1] |
SPRING
|
|
| 311. |
120702-00061
|
[1] |
SCREW,ADJUSTING
|
|
| 312. |
121-00038
|
[1] |
NUT;LOCK
|
|
| 351. |
130401-00012
|
[1] |
CASE,GEAR
|
|
| 353. |
1.403-00037
|
[1] |
GEAR;DRIVE
|
|
| 354. |
1.403-00040
|
[1] |
GEAR;DRIVEN
|
|
| 355. |
471-00030
|
[1] |
FILTER
|
|
| 361. |
110913-00059
|
[1] |
CASE,FRONT
|
|
| 410. |
120808-00119
|
[4] |
|
|
| 433. |
S2209661
|
[2] |
BOLT
|
|
| 434. |
S2209961
|
[2] |
BOLT;SOCKET
|
|
| 435. |
S2208871
|
[4] |
BOLT;SOCKET
|
|
| 466. |
430221-00194
|
[1] |
|
|
| 700. |
NA00929
|
[1] |
RING
|
|
| 710. |
S8010955
|
[1] |
O-RING
|
|
| 725. |
401002-00251
|
[1] |
|
|
| 732. |
S8000161
|
[1] |
O-RING
|
|
| 850. |
S6510180
|
[1] |
RING;SNAP
|
|
