纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (3.436[01]) - EQUIPMENT CONTROL VALVE - VERSION (01-02-03) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
376 次

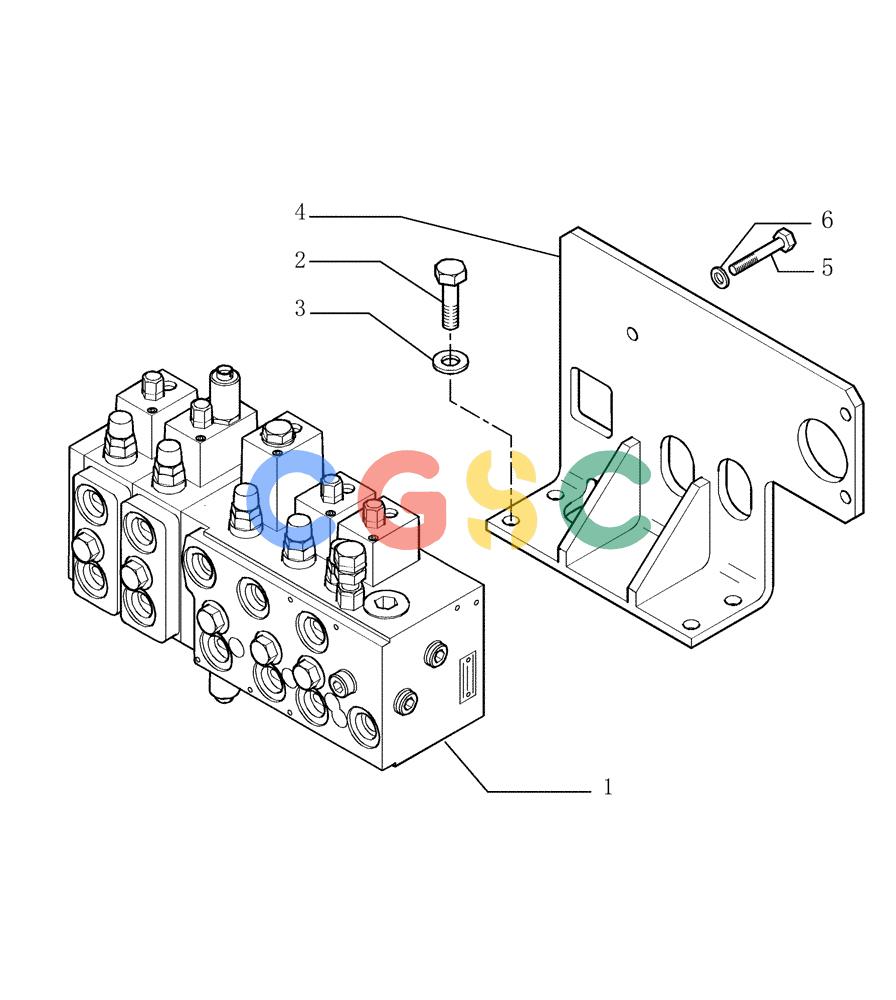

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76074729 | [1] | CONTROL VALVE | LEC- ASSY SEE PAG.2,3 |
| 2. | 11112631 | [4] | BOLT,Hex, M12 x 35mm, Cl 10.9 | LEC Superseded by part number: 626-12035 |
| 3. | 14496731 | [4] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 4. | 76075105 | [1] | SUPPORT | LEC |
| 5. | 11106231 | [3] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9 | LEC |
| 6. | 12626231 | [3] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
