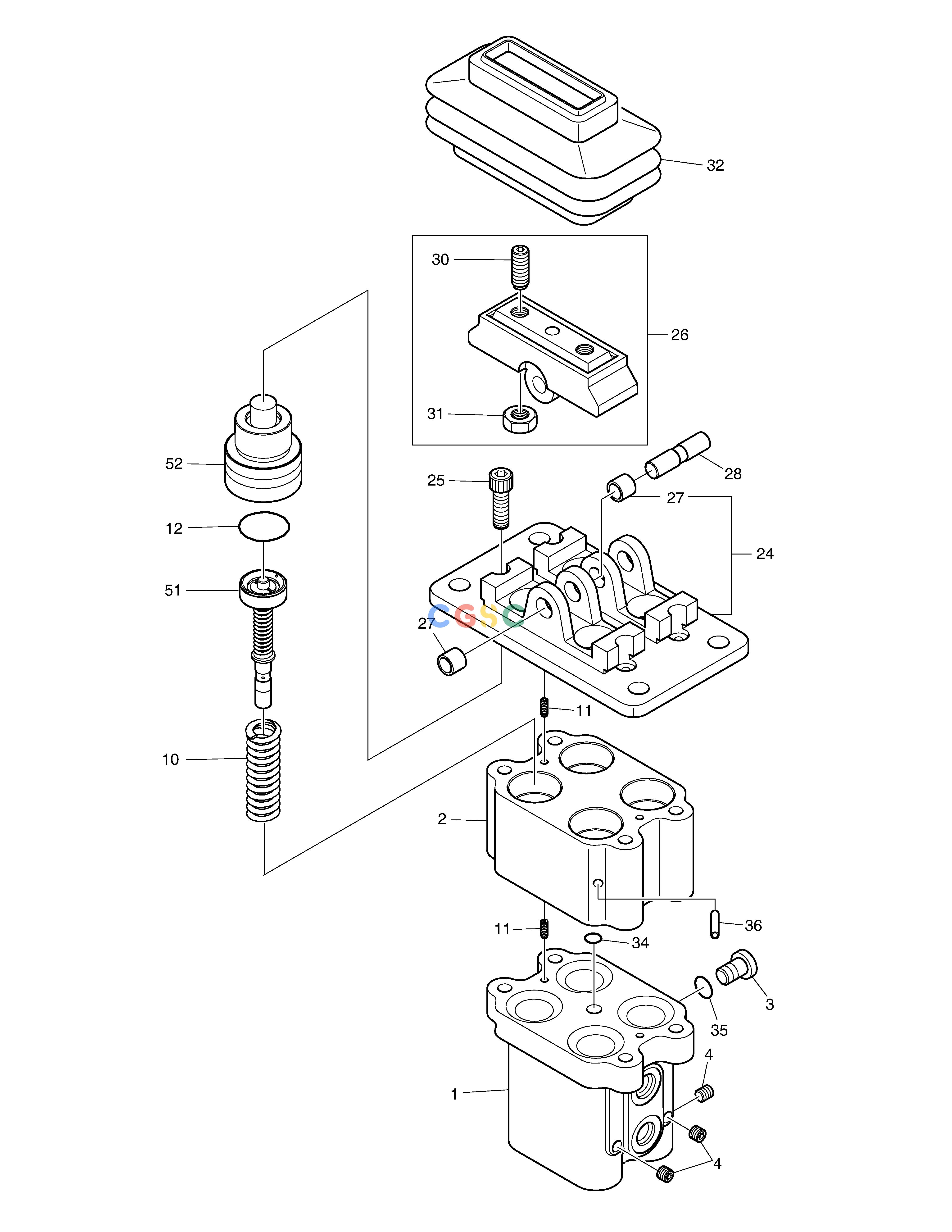

斗山零件查询PEDAL VALVE DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
533 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
410119-00003
|
[1] |
|
|
| 1. |
NA03236
|
[1] |
|
|
| 10. |
K9006860
|
[4] |
SPRING
|
|
| 11. |
S5740600
|
[4] |
PIN;SPRING
|
|
| 12. |
S8000261
|
[4] |
O-RING
|
|
| 2. |
NA03237
|
[1] |
|
|
| 24. |
K9006865
|
[1] |
KIT;COVER
|
|
| 25. |
S2210071
|
[4] |
BOLT
|
|
| 26. |
130402-00037
|
[2] |
|
|
| 27. |
2110-1184D7
|
[4] |
BUSH
|
|
| 28. |
K9006861A
|
[2] |
CAMSHAFT
|
|
| 3. |
420-00112
|
[1] |
PLUG
|
|
| 30. |
120-00127
|
[4] |
SCREW;SET
|
|
| 31. |
S4014633
|
[4] |
. NUT
|
|
| 32. |
K9006862
|
[2] |
BELLOWS
|
|
| 34. |
S8000081
|
[1] |
O-RING
|
|
| 35. |
S8000111
|
[1] |
O-RING
|
|
| 36. |
1.188-00001
|
[2] |
EXPAND
|
|
| 4. |
2181-1116D1
|
[3] |
PLUG
|
|
| 51. |
K9006863
|
[1] |
KIT;SPOOL
|
|
| 52. |
430221-00451
|
[1] |
|
|
