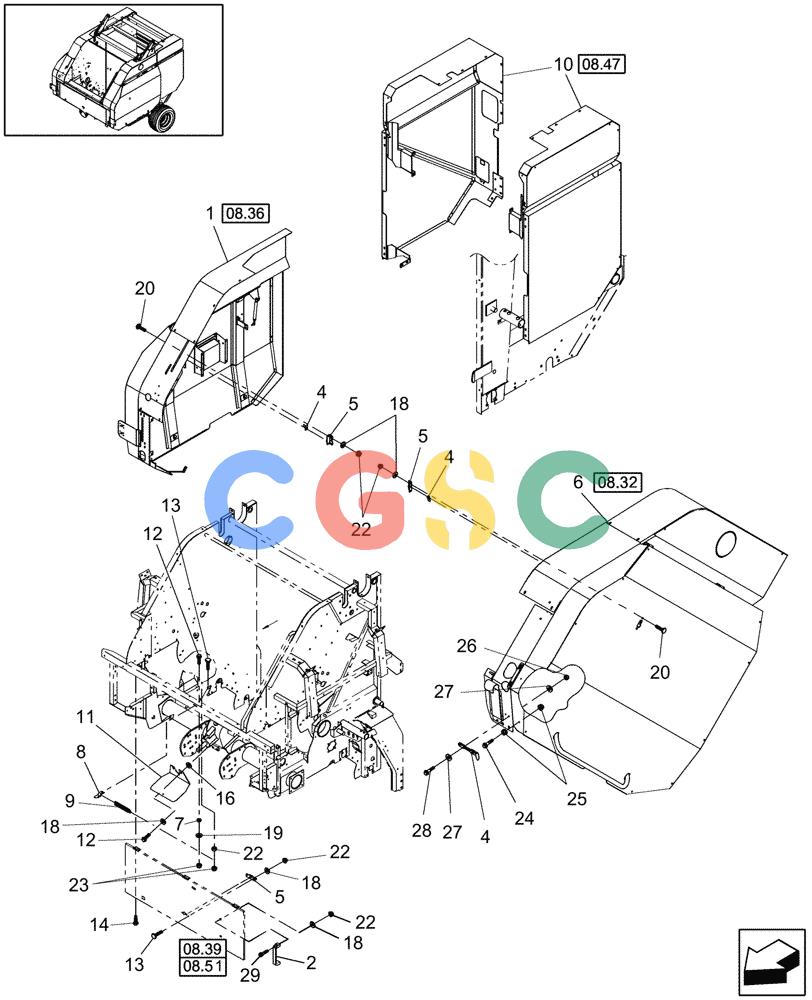

| 1. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
Shields, RH
|
| 2. |
84025452
|
[1] |
HANDLE
|
POL
|
| 4. |
86000448
|
[2] |
LATCH
|
NH
|
| 5. |
84015292
|
[3] |
LATCH
|
ZED
Latch, 1/4 Turn
|
| 7. |
86979427
|
[1] |
SPACER
|
NH
|
| 8. |
87024149
|
[1] |
LATCH
|
PA
|
| 9. |
12255
|
[1] |
SPRING
|
NH
1-3/4" Lg.
|
| 11. |
86643122
|
[1] |
SHIELD
|
NH
|
| 12. |
844-8020
|
[2] |
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804258
|
| 13. |
811-8030
|
[3] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8
|
CAS
|
| 14. |
677808
|
[9] |
SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"
|
NH
HWH, 1/4"-20 x 5/8"
|
| 16. |
86620024
|
[1] |
WASHER,10.3mm ID x 25.4mm OD x 5.2mm Thk
|
NH
|
| 18. |
322358
|
[9] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 19. |
495-11034
|
[1] |
WASHER,5/16", SAE
|
CAS
Superseded by part number: 83918746, 72187257
|
| 20. |
811-8020
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86507486
|
| 22. |
825-2408
|
[9] |
FLANGE NUT,M8 x 1.25, Flg, Cl 8
|
CAS
Superseded by part number: 86505868
|
| 23. |
832-46408
|
[2] |
NUT,M8 x 1.25, Cl 8
|
CAS
Superseded by part number: 86528579
|
| 24. |
844-6030
|
[2] |
BOLT,Hvy Hex, M6 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 86511839
|
| 25. |
825-2406
|
[4] |
FLANGE NUT,M6 x 1, Cl 8.8
|
CAS
Superseded by part number: 9804276
|
| 26. |
832-46406
|
[4] |
NUT,M6 x 1, Cl 8
|
CAS
Superseded by part number: 353308
|
| 27. |
495-21031
|
[8] |
WASHER,1/4"
|
CAS
Superseded by part number: 80701, 72187262
|
| 28. |
844-6020
|
[4] |
BOLT,Hvy Hex, M6 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804256
|
| 29. |
9706749
|
[2] |
HEX SOC SCREW,M8 x 25mm, Cl 12.9
|
PA
|
