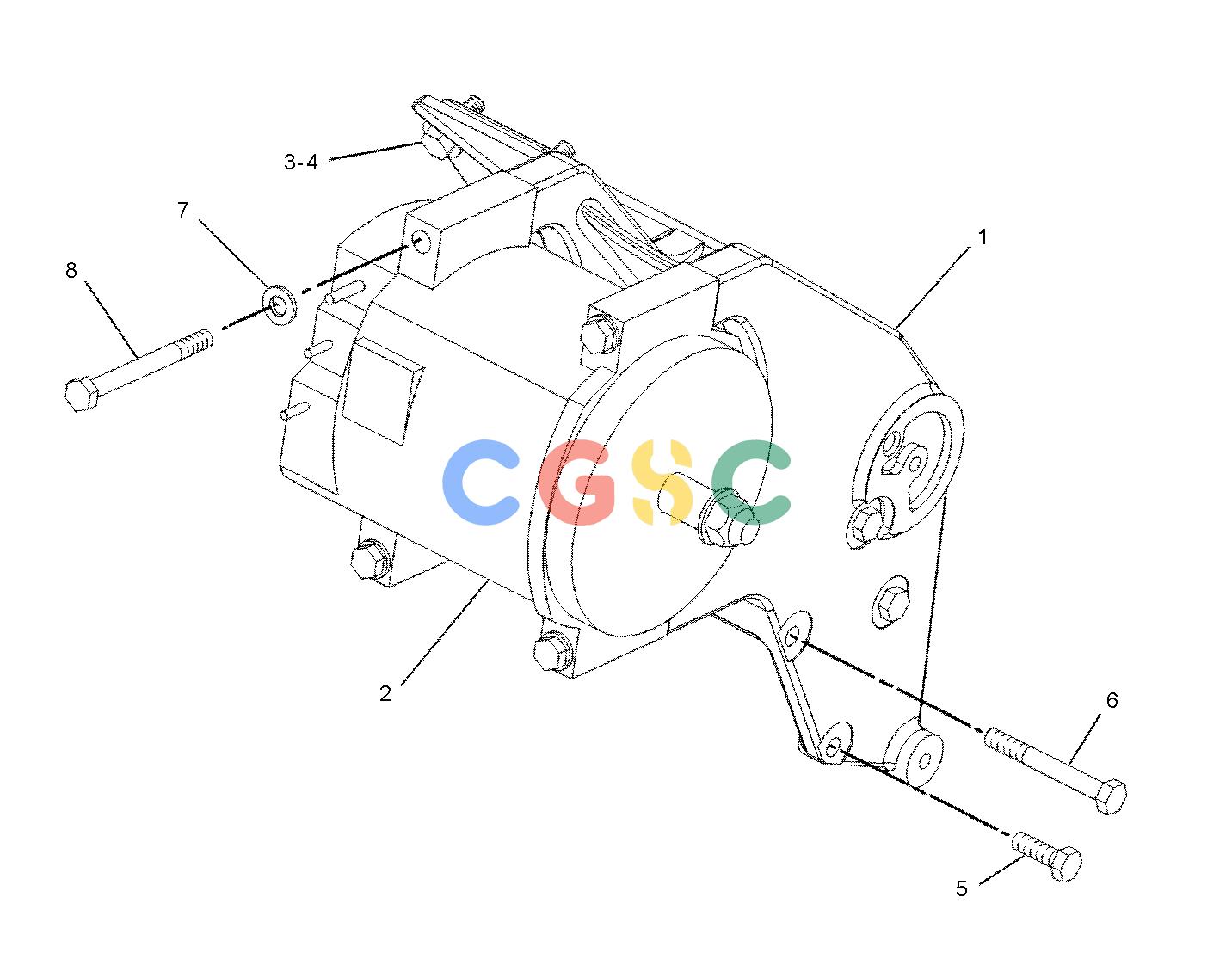

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 169-4657 | [1] | BRACKET | |
| 2. | 200-2232Y | [1] | ALTERNATOR GP-CHARGING(24-VOLT, 75-AMPERE) | |
| 3. | 3E-4353 | [3] | WASHER-HARD(11X25X3-MM THK) | |
| 4. | 6V-1820M | [3] | BOLT(M10X1.5X30-MM) | |
| 5. | 6V-3822M | [2] | BOLT(M10X1.5X35-MM) | |
| 6. | 8T-0643M | [2] | BOLT(M10X1.5X80-MM) | |
| 7. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 8. | 8T-4198M | [4] | BOLT(M10X1.5X100-MM) | |
| M | METRIC PART | |||
| R | REMANUFACTURED PART MAY BE AVAILABLE | |||
| Y | SEPARATE ILLUSTRATION | |||
