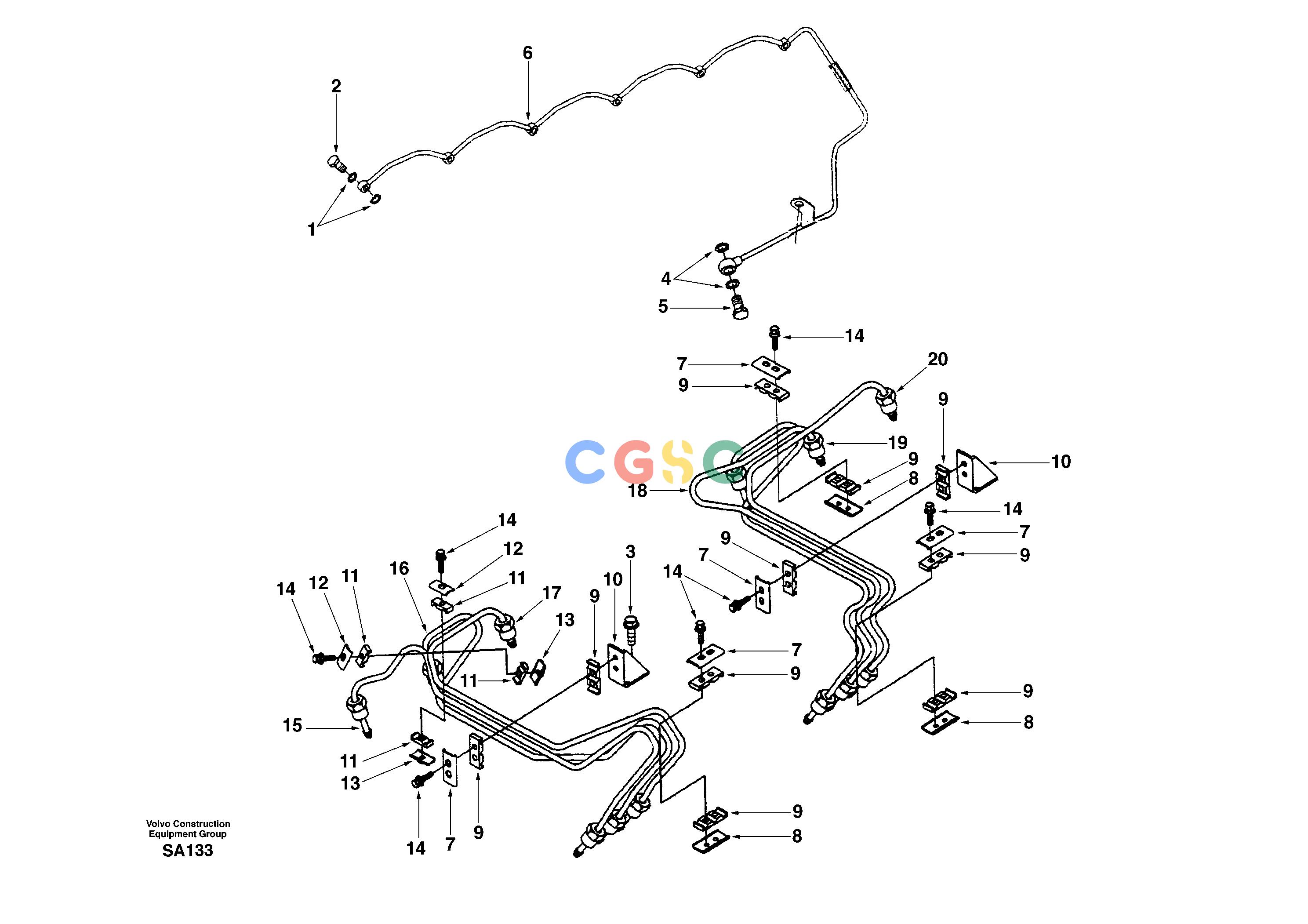

沃尔沃零件查询EC210 Fuel pipes-injectorNoneDD04B001-DD04B002NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
465 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA3903380
|
[12] |
Seal
|
|
| 2. |
SA3905307
|
[6] |
Screw
|
|
| 3. |
SA3918108
|
[1] |
Screw
|
|
| 4. |
SA3935171
|
[2] |
Sealing washer
|
|
| 5. |
SA3905307
|
[1] |
Screw
|
|
| 6. |
SA3284343
|
[1] |
Manifold
|
|
| 7. |
SA3904711
|
[5] |
Brace
|
|
| 8. |
SA3917716
|
[3] |
Brace
|
|
| 9. |
SA3917747
|
[10] |
Insulator
|
|
| 10. |
SA3920414
|
[2] |
Brace
|
|
| 11. |
SA3917746
|
[4] |
Insulator
|
|
| 12. |
SA3917718
|
[2] |
Brace
|
|
| 13. |
SA3930772
|
[2] |
Brace
|
|
| 14. |
SA3920854
|
[12] |
Hexagon screw
|
|
| 15. |
SA3928474
|
[1] |
Pipe
|
|
| 16. |
SA3928475
|
[1] |
Pipe
|
|
| 17. |
SA3928476
|
[1] |
Pipe
|
|
| 18. |
SA3928477
|
[1] |
Pipe
|
|
| 19. |
SA3928478
|
[1] |
Pipe
|
|
| 20. |
SA3928479
|
[1] |
Pipe
|
|
