沃尔沃零件查询D11B3-A MP; D11B4-A MPControlsElectronic Speed Control, Inboard/IPS, Twin Installation EVC-E3EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
881 次

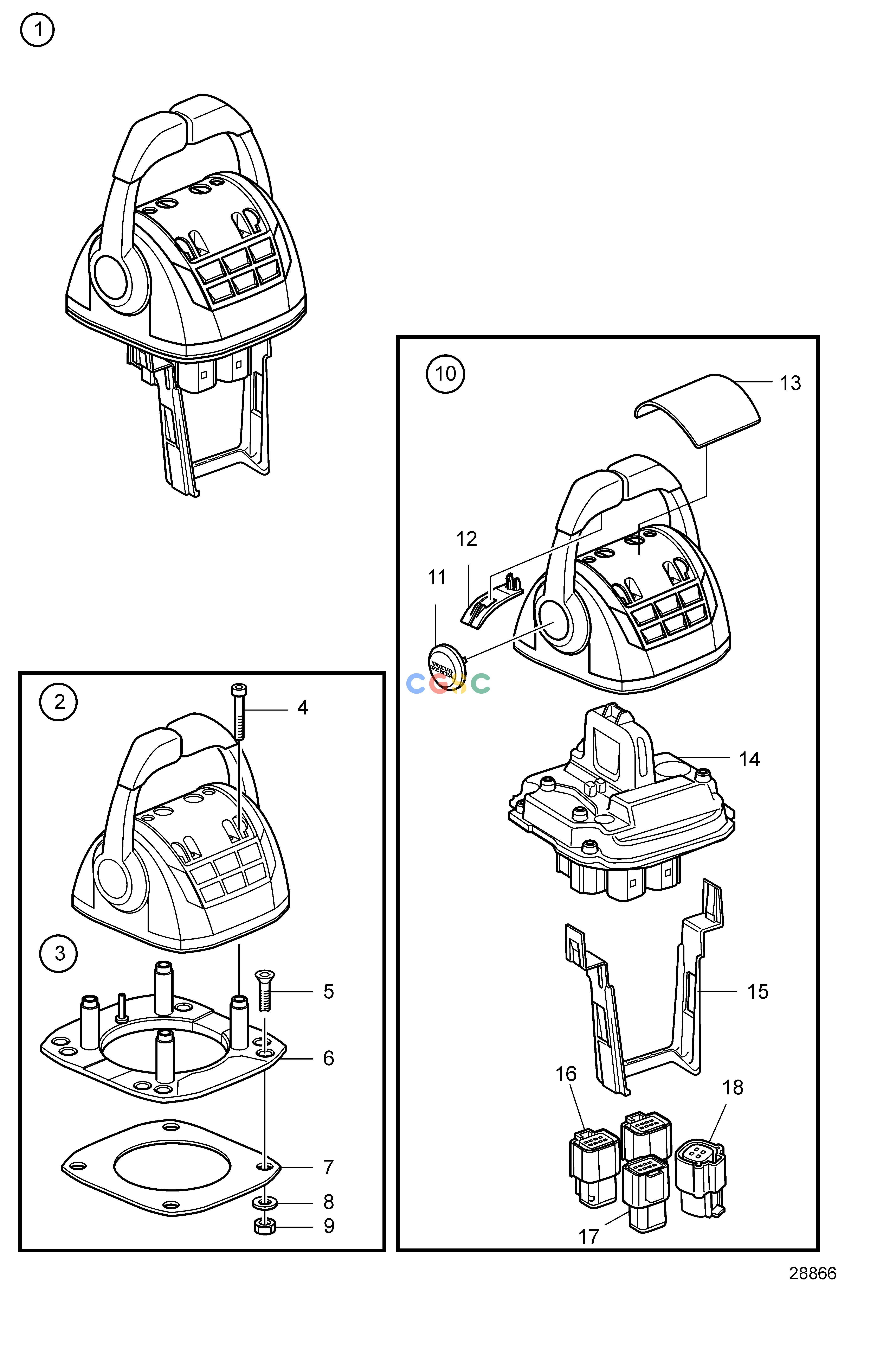

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22498615
|
[1] |
Control lever
|
|
| 2. |
|
|
|
|
| 3. |
21461720
|
[1] |
Installation kit, mounting bracket
|
|
| 4. |
995042
|
[4] |
Hex. socket screw
|
|
| 5. |
994821
|
[4] |
Hex. socket screw
|
|
| 6. |
21461704
|
[1] |
Bracket
|
|
| 7. |
|
|
|
|
| 8. |
940275
|
[4] |
Washer
|
|
| 9. |
984456
|
[4] |
Lock nut
|
|
| 10. |
21527169
|
[1] |
Kit, plastic parts
|
|
| 11. |
|
|
|
|
| 12. |
|
|
|
|
| 13. |
21461681
|
[1] |
Cover
|
|
| 14. |
|
|
|
|
| 15. |
21461675
|
[1] |
Cable holder
|
|
| 16. |
21505756
|
[2] |
Connector
|
|
| 17. |
|
|
|
|
| 18. |
|
|
|
|
