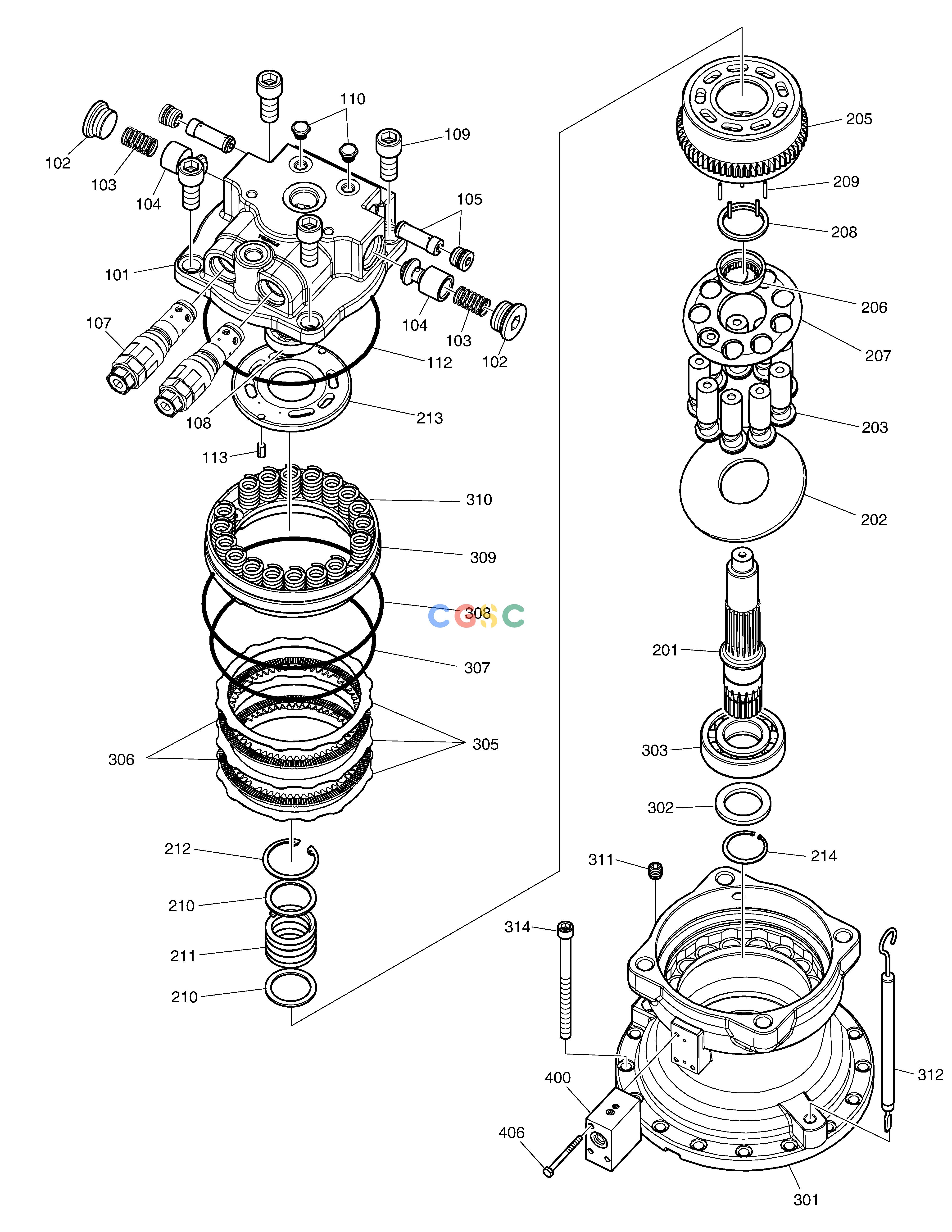

斗山零件查询SWING MOTOR DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
383 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K9002875
|
[1] |
SEAL KIT;SWING MOTOR
|
|
| -. |
170303-00067
|
[1] |
|
|
| 101. |
K9001944
|
[1] |
VALVE;CASING
|
|
| 102. |
430221-00204
|
[2] |
|
|
| 103. |
K9001840
|
[2] |
SPRING
|
|
| 104. |
K9001841
|
[2] |
PLUNGER
|
|
| 105. |
410116-00410
|
[1] |
|
|
| 107. |
410127-00095
|
[2] |
|
|
| 108. |
S6005050
|
[1] |
BEARING;BALL
|
|
| 109. |
S2227561
|
[4] |
BOLT;SOCKET
|
|
| 110. |
2181-1950D1
|
[2] |
PLUG
|
|
| 112. |
2180-1217D156
|
[1] |
O-RING
|
|
| 113. |
S5741162
|
[2] |
PIN;SPRING
|
|
| 201. |
K9001843
|
[1] |
SHAFT;DRIVE
|
|
| 202. |
412-00011
|
[1] |
PLATE;SHOE
|
|
| 203. |
K9001845
|
[1] |
PISTON & SHOE ASS'Y
|
|
| 205. |
150102-00418
|
[1] |
|
|
| 206. |
1.148-00015
|
[1] |
BALL;THRUST
|
|
| 207. |
110943-00057
|
[1] |
|
|
| 208. |
1.114-00009
|
[1] |
COLLAR
|
|
| 209. |
1.109-00134
|
[5] |
ROLLER
|
|
| 210. |
1.114-00286
|
[2] |
WASHER
|
|
| 211. |
1.131-00048
|
[1] |
SPRING
|
|
| 212. |
S6510620
|
[1] |
RING;SNAP
|
|
| 213. |
250201-01812
|
[1] |
|
|
| 214. |
S6500450
|
[1] |
RING;SNAP
|
|
| 301. |
110913-00184
|
[1] |
|
|
| 302. |
401106-00181
|
[1] |
|
|
| 303. |
K9008335
|
[1] |
BEARING;ROLLER
|
|
| 305. |
352-00014
|
[3] |
PLATE,SEPARATION
|
|
| 306. |
412-00013
|
[2] |
PLATE,FRICTION
|
|
| 307. |
180-00220
|
[1] |
O-RING
|
|
| 308. |
180-00221
|
[1] |
O-RING
|
|
| 309. |
452-00020
|
[1] |
PISTON;BRAKE
|
|
| 310. |
129-00062
|
[18] |
SPRING;BRAKE
|
|
| 311. |
2181-1116D4
|
[1] |
PLUG
|
|
| 312. |
800108-00094
|
[1] |
|
|
| 314. |
120107-00097
|
[16] |
|
|
| 400. |
410102-00024
|
[1] |
|
|
| 406. |
S0506053
|
[3] |
BOLT M6x1.0x70
|
|
