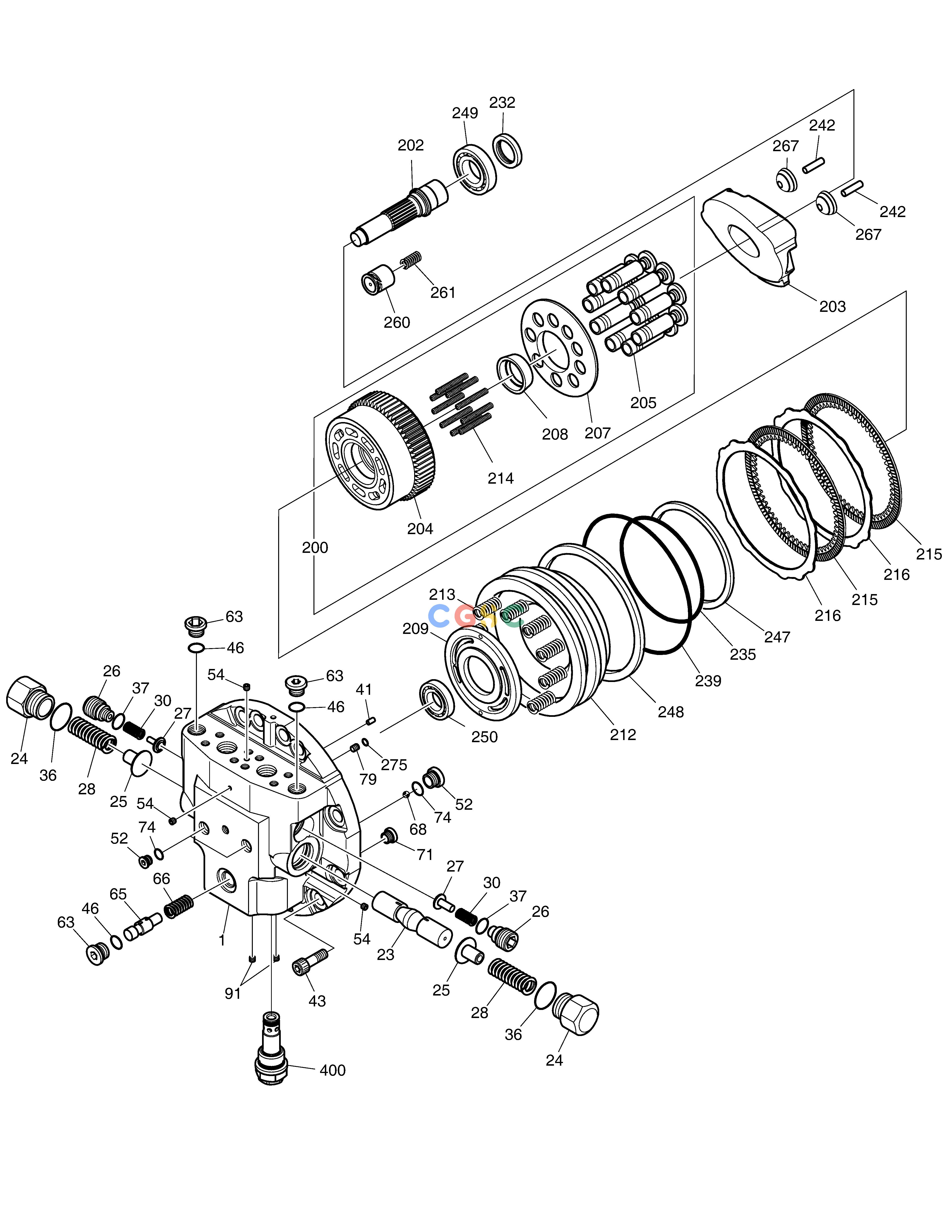

斗山零件查询TRAVEL MOTOR DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
177 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K9008310
|
[1] |
SEAL KIT;TRAVEL MOTOR
|
|
| -. |
170401-00039B
|
[2] |
|
|
| 1. |
NA00915
|
[1] |
REAR FLANGE
|
|
| 200. |
400701-00004
|
[1] |
|
|
| 202. |
K9007415A
|
[1] |
|
|
| 203. |
K9007382
|
[1] |
PLATE;SWASH
|
|
| 204. |
K9007397
|
[1] |
BLOCK;CYLINDER
|
|
| 205. |
K9007406A
|
[1] |
|
|
| 207. |
K9004447
|
[1] |
PLATE;RETAINER
|
|
| 208. |
K9004448
|
[1] |
BALL;THRUST
|
|
| 209. |
K9007398A
|
[1] |
|
|
| 212. |
K9004453
|
[1] |
PISTON;PARKING
|
|
| 213. |
1.131-00049A
|
[12] |
SPRING
|
|
| 214. |
K9004449
|
[9] |
SPRING
|
|
| 215. |
412-00013
|
[2] |
PLATE,FRICTION
|
|
| 216. |
352-00014
|
[2] |
PLATE,SEPARATION
|
|
| 23. |
410207-00307
|
[1] |
SPOOL,MAIN
|
|
| 232. |
K9007401
|
[1] |
SEAL;OIL
|
|
| 235. |
S8001801
|
[1] |
O-RING
|
|
| 239. |
S8002101
|
[1] |
O-RING
|
|
| 24. |
1.181-00059
|
[2] |
PLUG;FOR MAIN
|
|
| 242. |
1.123-00053
|
[4] |
PIN,PARALLEL
|
|
| 247. |
S8061800
|
[1] |
RING;BACK UP
|
|
| 248. |
S8062100
|
[1] |
RING;BACK UP
|
|
| 249. |
K9007400
|
[1] |
BEARING;BALL
|
|
| 25. |
110956-00060
|
[2] |
STOPPER
|
|
| 250. |
1.109-00026A
|
[1] |
BEARING,BALL
|
|
| 26. |
1.181-00067
|
[2] |
PLUG;CHECK
|
|
| 260. |
130602-00200
|
[1] |
|
|
| 261. |
111601-00117
|
[1] |
|
|
| 267. |
1.540-00006
|
[2] |
PIVOT
|
|
| 27. |
1.420-00013
|
[2] |
VALVE;CHECK
|
|
| 275. |
S8000081
|
[2] |
O-RING
|
|
| 28. |
1.131-00058
|
[2] |
SPRING;FOR MAIN
|
|
| 30. |
1.129-00006
|
[2] |
SPRING;CHECK
|
|
| 36. |
S8000321
|
[2] |
O-RING
|
|
| 37. |
S8002731
|
[2] |
O-RING
|
|
| 400. |
410127-00190
|
[2] |
VALVE ASSY,RELIEF
|
|
| 41. |
S5700891
|
[1] |
PIN;PARALLEL
|
|
| 43. |
S2221471
|
[12] |
BOLT,SOCKET
|
|
| 46. |
S8000181
|
[2] |
O-RING
|
|
| 52. |
2181-1890D2
|
[4] |
PLUG
|
|
| 54. |
181-00318
|
[5] |
BOLT;SOCKER
|
|
| 63. |
2181-1890D4
|
[2] |
PLUG
|
|
| 65. |
1.424-00041
|
[1] |
SPOOL;2 SPEED
|
|
| 66. |
111601-00354
|
[1] |
SPRING
|
|
| 68. |
S6250182
|
[2] |
BALL
|
|
| 71. |
1.415-00005
|
[1] |
ORIFICE
|
|
| 74. |
S8000111
|
[4] |
O-RING
|
|
| 79. |
1.471-00001A
|
[1] |
FILTER
|
|
| 91. |
2181-1116D1
|
[2] |
PLUG
|
|
| C. |
430215-00552
|
[1] |
|
|
