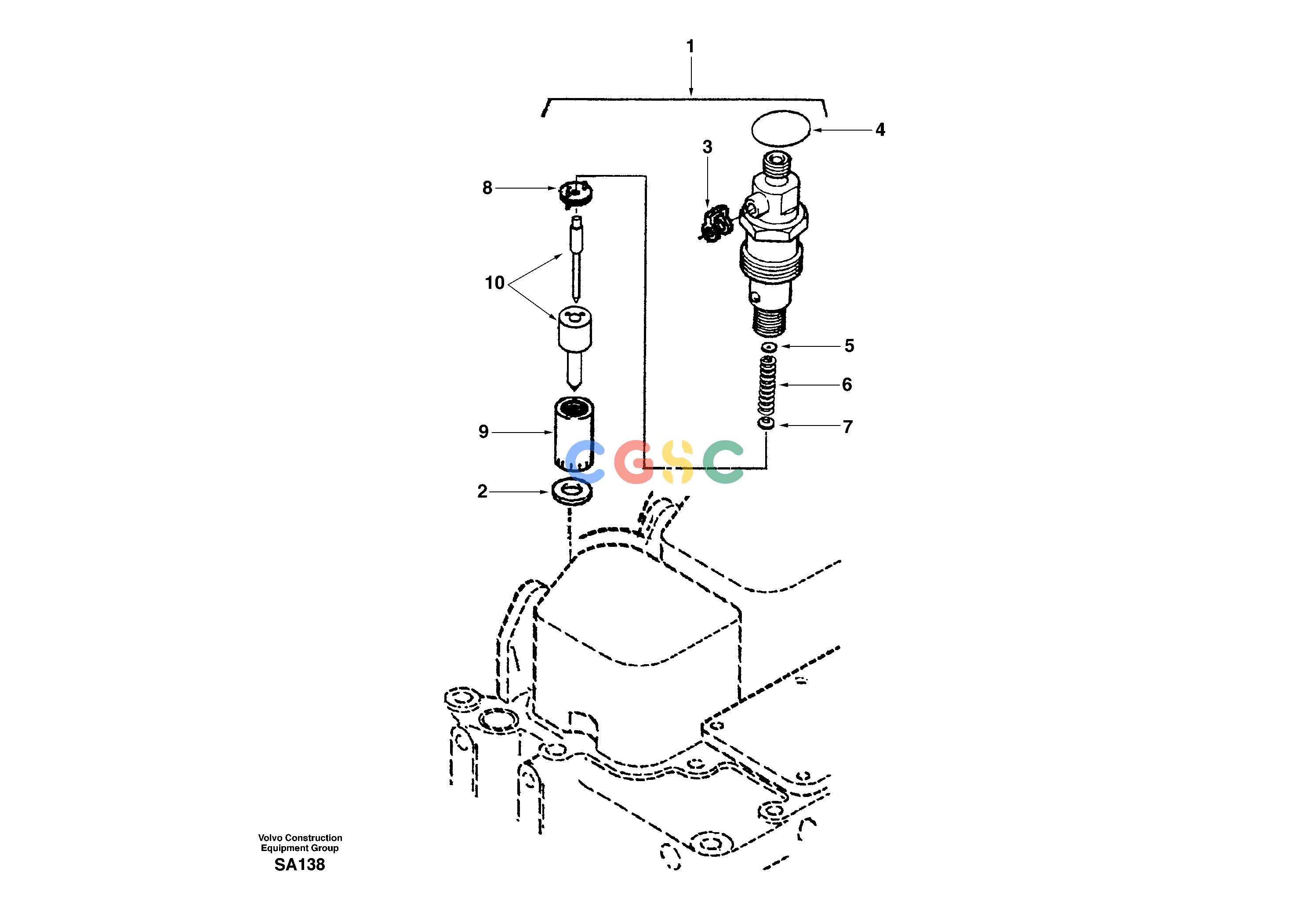

沃尔沃零件查询EC210 InjectorNoneDD04B001-DD04B002NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
558 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
SA3802677
|
[6] |
Ejector
|
|
| 1. |
SA3929490
|
[6] |
Injector
|
|
| 2. |
SA3906659
|
[6] |
Sealing ring
|
|
| 3. |
SA3903380
|
[6] |
Seal
|
|
| 4. |
SA3909356
|
[6] |
Seal
|
|
| 5. |
SA3905156
|
[REQ] |
Shim
|
1.00MM THICK
|
| |
SA3905157
|
[REQ] |
Shim
|
1.04MM THICK
|
| |
SA3905158
|
[REQ] |
Shim
|
1.08MM THICK
|
| |
SA3905159
|
[REQ] |
Shim
|
1.10MM THICK
|
| |
SA3905160
|
[REQ] |
Shim
|
1.14MM THICK
|
| |
SA3905161
|
[REQ] |
Shim
|
1.18MM THICK
|
| |
SA3905162
|
[REQ] |
Shim
|
1.20MM THICK
|
| |
SA3905163
|
[REQ] |
Shim
|
1.24MM THICK
|
| |
SA3905164
|
[REQ] |
Shim
|
1.28MM THICK
|
| |
SA3905165
|
[REQ] |
Shim
|
1.30MM THICK
|
| |
SA3905166
|
[REQ] |
Shim
|
1.34MM THICK
|
| |
SA3905167
|
[REQ] |
Shim
|
1.38MM THICK
|
| |
SA3905168
|
[REQ] |
Shim
|
1.40MM THICK
|
| |
SA3905169
|
[REQ] |
Shim
|
1.44MM THICK
|
| |
SA3905170
|
[REQ] |
Shim
|
1.48MM THICK
|
| |
SA3905171
|
[REQ] |
Shim
|
1.50MM THICK
|
| |
SA3905172
|
[REQ] |
Shim
|
1.54MM THICK
|
| |
SA3905173
|
[REQ] |
Shim
|
1.58MM THICK
|
| |
SA3905174
|
[REQ] |
Shim
|
1.60MM THICK
|
| |
SA3905175
|
[REQ] |
Shim
|
1.64MM THICK
|
| |
SA3905176
|
[REQ] |
Shim
|
1.76MM THICK
|
| |
SA3905177
|
[REQ] |
Shim
|
1.70MM THICK
|
| |
SA3905178
|
[REQ] |
Shim
|
1.74MM THICK
|
| |
SA3905180
|
[REQ] |
Shim
|
1.78MM THICK
|
| |
SA3905181
|
[REQ] |
Shim
|
1.80MM THICK
|
| |
SA3905182
|
[REQ] |
Shim
|
1.84MM THICK
|
| |
SA3905183
|
[REQ] |
Shim
|
1.88MM THICK
|
| |
SA3905184
|
[REQ] |
Shim
|
1.90MM THICK
|
| |
SA3905185
|
[REQ] |
Shim
|
1.94MM THICK
|
| |
SA3905186
|
[REQ] |
Shim
|
1.98MM THICK
|
| 6. |
SA3905152
|
[6] |
Spring
|
|
| 7. |
SA3905153
|
[6] |
Spindle
|
|
| 8. |
SA3905154
|
[6] |
Card
|
|
| 9. |
SA3905155
|
[6] |
Retainer
|
|
| 10. |
SA3907782
|
[6] |
Nozzle
|
|
