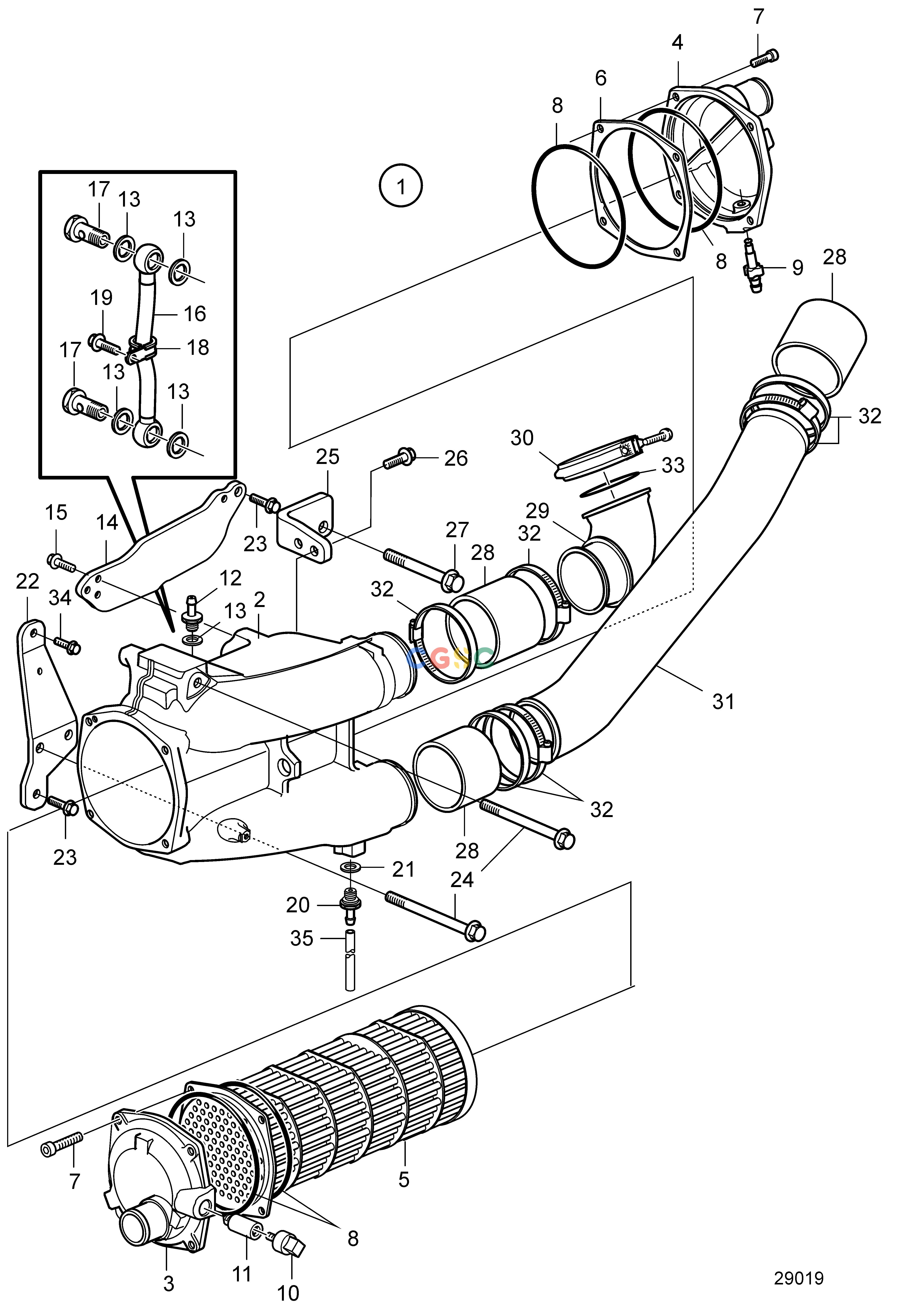

沃尔沃零件查询D11B3-A MP; D11B4-A MPCooling SystemCharge Air CoolerEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
307 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21506789
|
[1] |
Charge air cooler
|
Replaced by 22651154
|
| 1. |
22651154
|
[1] |
Charge air cooler
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
3826782
|
[1] |
Spacer
|
|
| 7. |
3838337
|
[8] |
Screw
|
|
| 8. |
3826783
|
[4] |
O-ring
|
|
| 9. |
3583822
|
[1] |
Draining nipple
|
|
| 10. |
838928
|
[1] |
Plug
|
|
| 11. |
838929
|
[1] |
Anode
|
|
| 12. |
3889545
|
[1] |
Nipple
|
|
| 13. |
947282
|
[5] |
Gasket
|
|
| 14. |
|
|
|
|
| 15. |
984736
|
[3] |
Flange screw
|
|
| 16. |
|
|
|
|
| 17. |
|
|
|
|
| 18. |
|
|
|
|
| 19. |
|
|
|
|
| 20. |
22184469
|
[1] |
Drain valve
|
|
| 21. |
861917
|
[1] |
Washer
|
|
| 22. |
|
|
|
|
| 23. |
984753
|
[1] |
Flange screw
|
|
| 24. |
984766
|
[3] |
Flange screw
|
|
| 25. |
22333655
|
[1] |
Bracket
|
|
| 26. |
984735
|
[2] |
Flange screw
|
|
| 27. |
984739
|
[1] |
Flange screw
|
|
| 28. |
21832376
|
[2] |
Hose
|
|
| 29. |
21611996
|
[1] |
Charge air pipe
|
|
| 30. |
20592783
|
[1] |
V-clamp
|
|
| 31. |
21611628
|
[1] |
Charge air pipe
|
|
| 32. |
996675
|
[6] |
Hose clamp
|
|
| 33. |
945512
|
[1] |
O-ring
|
|
| 34. |
984735
|
[1] |
Flange screw
|
|
| 35. |
969015
|
[1] |
Hose
|
|
