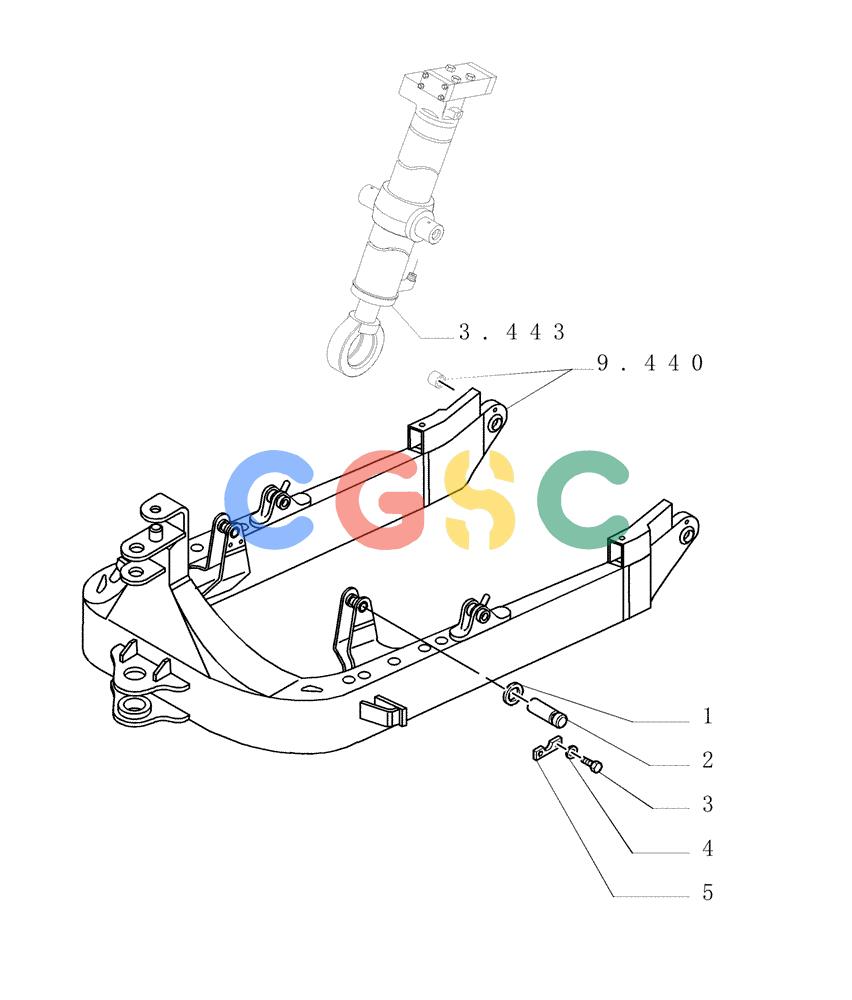

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (3.440[03]) - LIFT CYLINDERS PIPING - VERSION (01-02-03) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
901 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 84200966 | [4] | SHIM | DUBUse 2 for each pin |
| 2. | 76043886 | [2] | PIN | LEC Superseded by part number: 84204213 |
| 3. | 11112231 | [4] | SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd | LEC Superseded by part number: 398792 |
| 4. | 14496731 | [4] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 5. | 76033228 | [2] | COVER PLATE | LEC |
