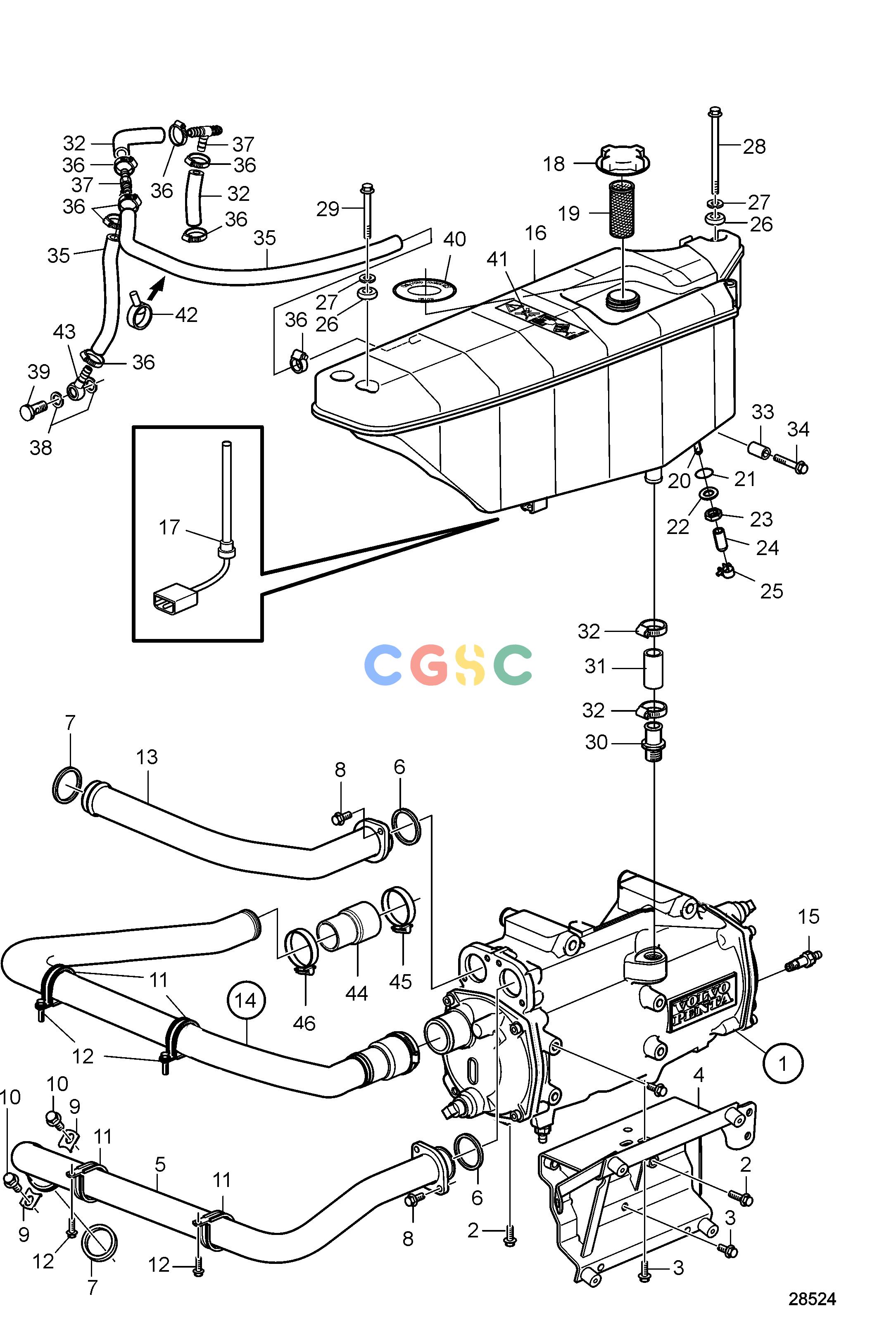

沃尔沃零件查询D11B3-A MP; D11B4-A MPCooling SystemHeat Exchanger and Expansion TankEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
942 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
984736
|
[3] |
Flange screw
|
|
| 3. |
984734
|
[3] |
Flange screw
|
|
| 4. |
21839743
|
[1] |
Anchorage
|
|
| 5. |
3886500
|
[1] |
Coolant pipe
|
|
| 6. |
864491
|
[2] |
Gasket
|
|
| 7. |
1547253
|
[2] |
Sealing ring
|
|
| 8. |
984735
|
[4] |
Flange screw
|
|
| 9. |
1546531
|
[2] |
Lock brace
|
|
| 10. |
984733
|
[2] |
Flange screw
|
|
| 11. |
947457
|
[4] |
Clamp
|
|
| 12. |
984724
|
[4] |
Flange screw
|
|
| 13. |
3836309
|
[1] |
Coolant pipe
|
|
| 14. |
21619213
|
[1] |
Pipe
|
|
| 15. |
3583822
|
[1] |
Draining nipple
|
|
| 16. |
21920930
|
[1] |
Expansion tank
|
|
| 17. |
21872119
|
[1] |
Level sensor
|
|
| 18. |
1674083
|
[1] |
Pressure cap
|
|
| 19. |
21366063
|
[1] |
Pipe
|
|
| 20. |
|
|
|
|
| 21. |
|
|
|
|
| 22. |
|
|
|
|
| 23. |
|
|
|
|
| 24. |
1276516
|
[1] |
Rubber cap
|
|
| 25. |
975269
|
[1] |
Hose clamp
|
|
| 26. |
3285120
|
[4] |
Spacer sleeve
|
|
| 27. |
976944
|
[4] |
Washer
|
|
| 28. |
984746
|
[2] |
Flange screw
|
|
| 29. |
984741
|
[2] |
Flange screw
|
|
| 30. |
21202116
|
[1] |
Hose nipple
|
|
| 31. |
969033
|
[1] |
Rubber hose
|
L=50mm
|
| 32. |
961667
|
[2] |
Hose clamp
|
|
| 33. |
833243
|
[1] |
Spacer sleeve
|
|
| 34. |
984739
|
[1] |
Flange screw
|
|
| 35. |
990536
|
[1] |
Rubber hose
|
|
| 36. |
961663
|
[7] |
Hose clamp
|
|
| 37. |
984445
|
[2] |
T-nipple
|
|
| 38. |
982723
|
[2] |
Gasket
|
|
| 39. |
991048
|
[1] |
Hollow screw
|
|
| 40. |
21506995
|
[1] |
Label
|
|
| 41. |
3842724
|
[1] |
Warning decal
|
|
| 42. |
20885496
|
[2] |
Retainer
|
|
| 43. |
20459906
|
[1] |
Banjo nipple
|
|
| 44. |
3837438
|
[2] |
Collar
|
|
| 45. |
961672
|
[2] |
Hose clamp
|
|
| 46. |
961671
|
[2] |
Hose clamp
|
|
