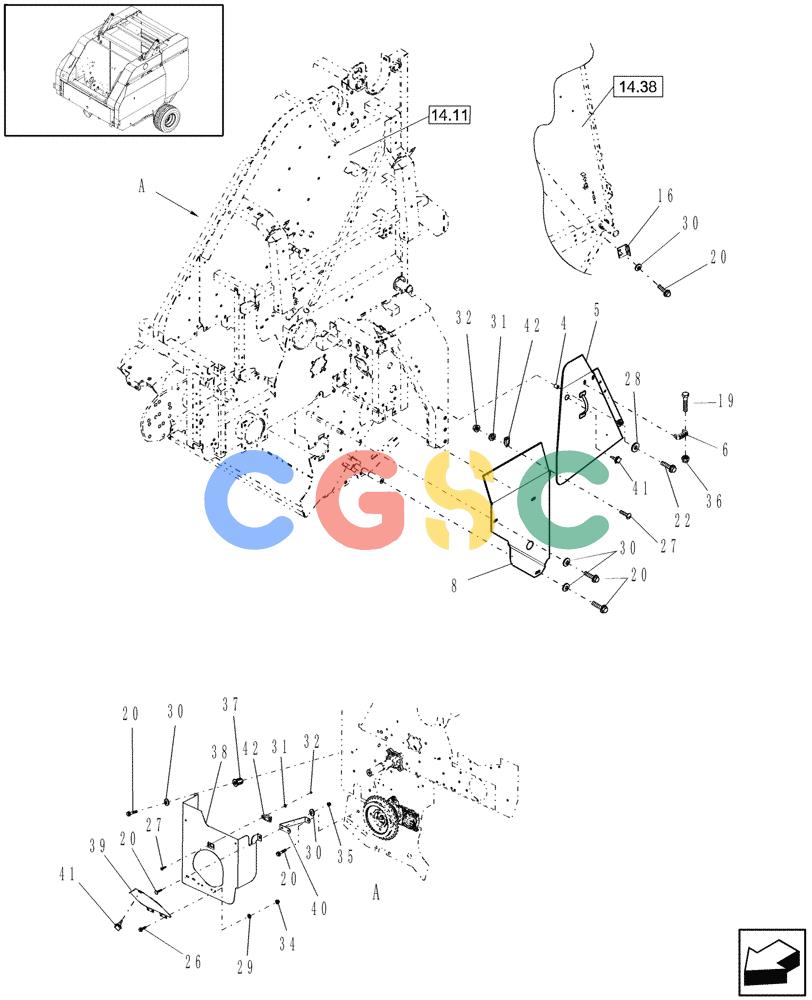

| 4. |
698748
|
[1] |
BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L
|
NH
Superseded by part number: 626698
|
| 5. |
87014318
|
[1] |
SHIELD
|
PA
LH
|
| 6. |
52367
|
[1] |
HOLDER
|
NH
Shearbolt
|
| 8. |
87055148
|
[1] |
SHIELD
|
PA
LH
|
| 16. |
86624316
|
[2] |
BRACKET
|
PA
Superseded by part number: 87034667
|
| 17. |
197559
|
[1] |
CHAIN,9" L
|
NH
#16, 9" L
|
| 19. |
46402
|
[2] |
SHEAR BOLT
|
NH
HH, 5/16"-18 x 1-1/2" Superseded by part number: 46047
|
| 20. |
844-8020
|
[10] |
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804258
|
| 22. |
844-10030
|
[1] |
BOLT,Hvy Hex, M10 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 9840672
|
| 23. |
87663900
|
[2] |
SHAFT
|
PA
|
| 24. |
86507486
|
[2] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 26. |
844-6016
|
[4] |
BOLT,Hvy Hex, M6 x 16mm, Cl 8.8
|
CAS
Superseded by part number: 9804255
|
| 27. |
84821
|
[4] |
SCREW,Truss HD, #10 - 24 x 1/2"
|
NH
|
| 28. |
495-21044
|
[1] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 29. |
322357
|
[4] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 30. |
322358
|
[9] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 31. |
492-11010
|
[4] |
LOCK WASHER,#10
|
CAS
Superseded by part number: 80684
|
| 32. |
225-14110
|
[4] |
NUT,#10-24
|
CAS
Superseded by part number: 87304
|
| 33. |
432-812
|
[1] |
COTTER PIN,3/4" OAL x 1/8" W
|
CAS
Superseded by part number: 80756
|
| 34. |
825-2406
|
[4] |
FLANGE NUT,M6 x 1, Cl 8.8
|
CAS
Superseded by part number: 9804276
|
| 35. |
825-2408
|
[2] |
FLANGE NUT,M8 x 1.25, Flg, Cl 8
|
CAS
Superseded by part number: 86505868
|
| 36. |
832-46408
|
[2] |
NUT,M8 x 1.25, Cl 8
|
CAS
Superseded by part number: 86528579
|
| 37. |
86610200
|
[2] |
THREADED INSERT,M8 x 1.25
|
NH
M8
|
| 38. |
87055140
|
[1] |
SHIELD
|
PA
RH
|
| 39. |
86642515
|
[1] |
DOOR ASSY.
|
PA
Superseded by part number: 87043305
|
| 40. |
87010737
|
[1] |
STRAP
|
PA
|
| 41. |
9705390
|
[1] |
LATCH
|
NH
1/4 Turn, North America Superseded by part number: 81866169
|
| 41. |
86512919
|
[1] |
LATCH
|
PA
1/4 Turn, Europe & R.O.W.
|
| 42. |
9840986
|
[2] |
CLIP
|
NH
|
