卡特零件查询（725） 233-6663: LINES GP-FUEL
广数供应链运营团队, 14 02月, 2025，浏览：
340 次

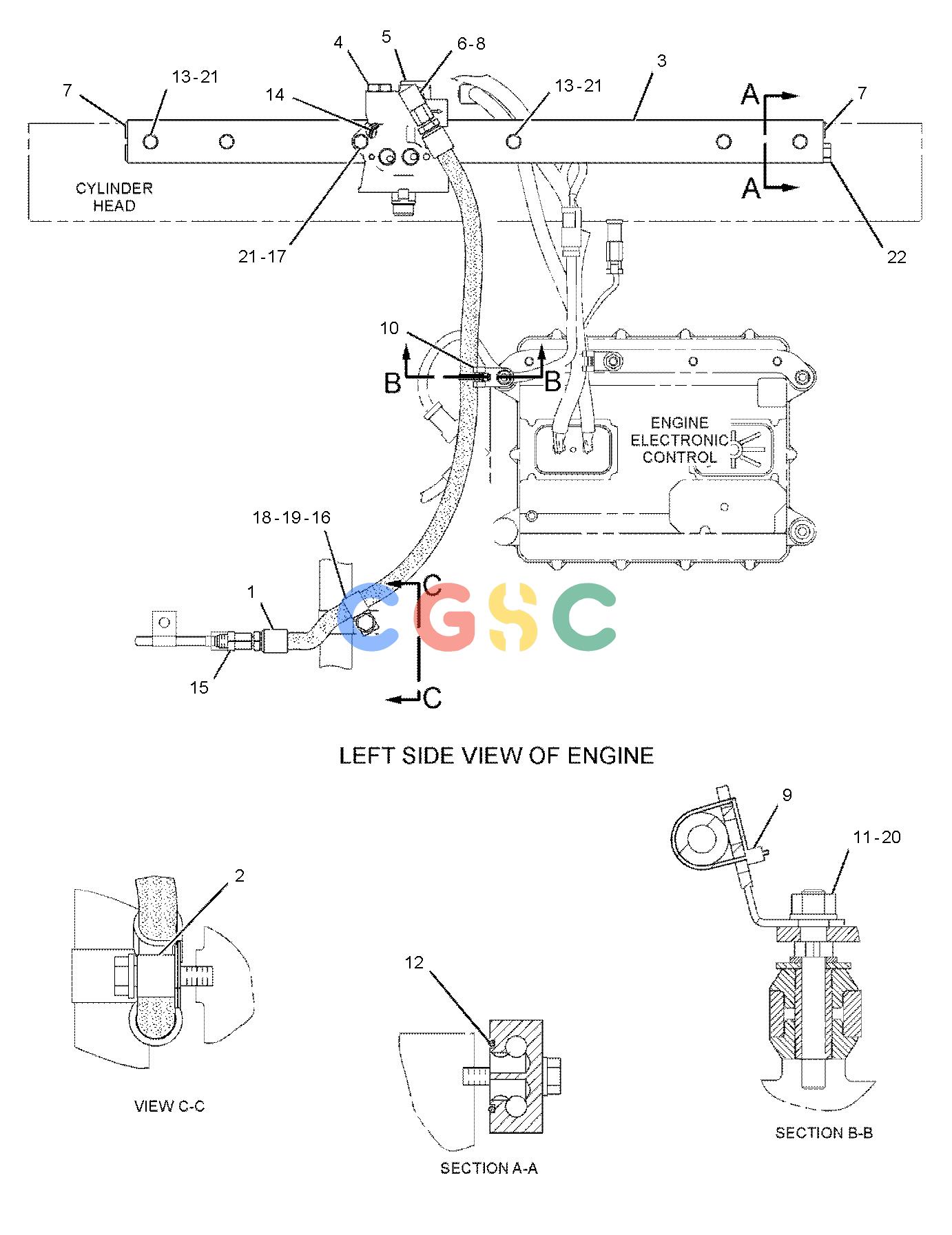

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8S-1162I | [1] | HOSE AS | |
| 2. | 9C-5344 | [1] | SPACER(10.5X20X18-MM THK) | |
| 3. | 126-0179 | [1] | MANIFOLD-FUEL | |
| 4. | 233-6742Y | [1] | VALVE GP-CHECK(FUEL) | |
| 5. | 238-6780 | [1] | BASE AS-FUEL FILTER | |
| | 9S-4167 | [1] | STUD-HOLLOW(1-14X1.47-IN) | |
| 6. | 030-7947 | [1] | ADAPTER-ELBOW | |
| 7. | 183-3408 | [3] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 6V-5049 | [1] | SEAL-O-RING | |
| | 9S-8004 | [1] | PLUG(9/16-18-THD) | |
| 8. | 3J-1907 | [1] | SEAL-O-RING | |
| 9. | 3S-2093 | [1] | STRAP-CABLE | |
| 10. | 4P-8134 | [1] | CLIP(LADDER) | |
| 11. | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 12. | 5P-3456 | [6] | SEAL-O-RING | |
| 13. | 6V-5218M | [5] | BOLT(M8X1.25X35-MM) | |
| 14. | 6V-8676 | [1] | SEAL-O-RING | |
| 15. | 7K-4129 | [1] | UNION-FLARED | |
| 16. | 8M-2773 | [1] | CLIP(LOOP) | |
| 17. | 8T-0276M | [2] | BOLT(M8X1.25X45-MM) | |
| 18. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 19. | 8T-4186M | [1] | BOLT(M10X1.5X40-MM) | |
| 20. | 8T-4224 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 21. | 9M-1974 | [7] | WASHER-HARD(8.8X16X2-MM THK) | |
| 22. | 148-8407 | [1] | PLUG AS | |
| | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
