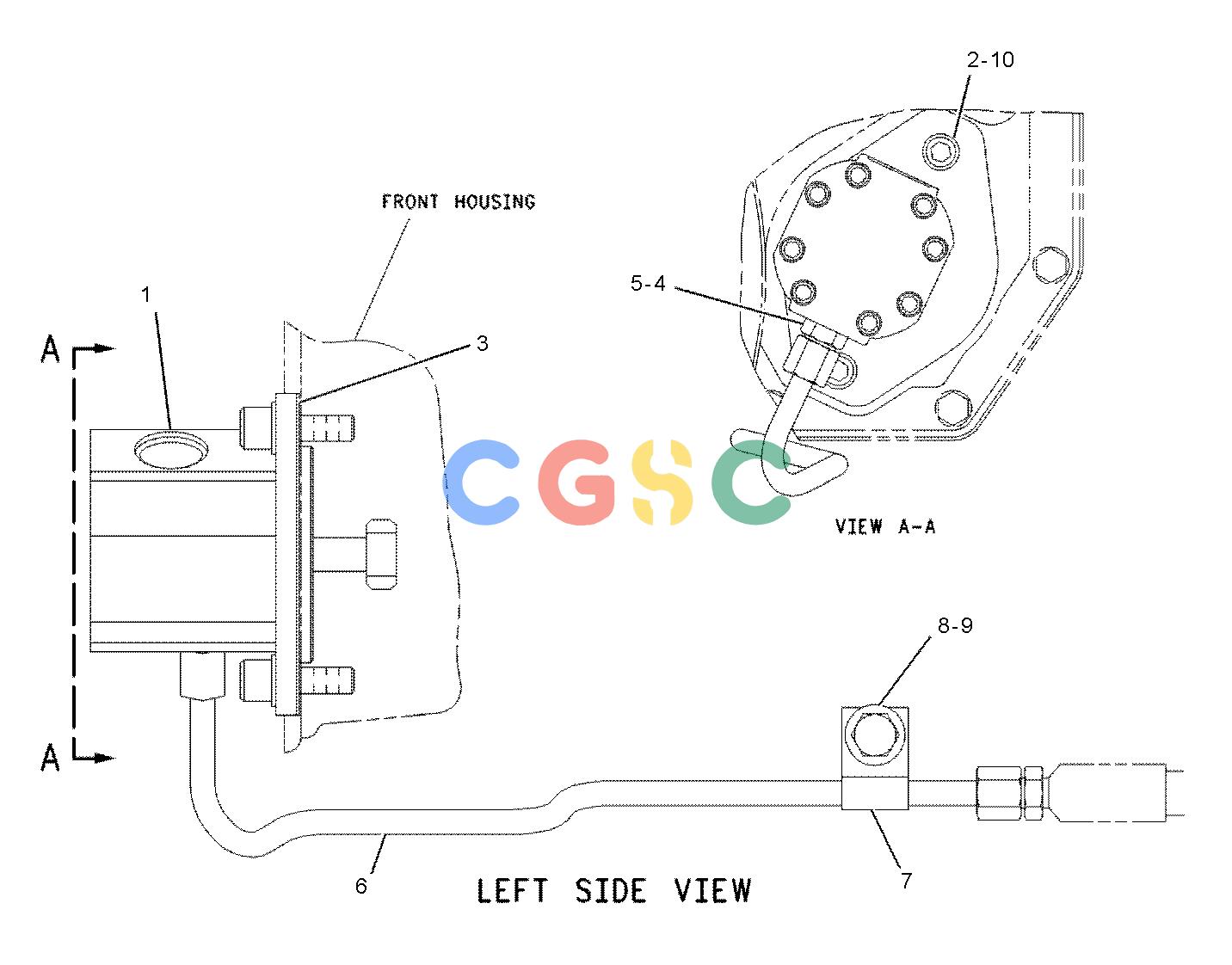

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 116-5431 | [1] | PUMP GP-FUEL TRANSFER | |
| 2. | 8T-1159M | [2] | BOLT-SOCKET HEAD(M10X1.5X25-MM) | |
| 3. | 6D-1004 | [1] | GASKET | |
| 4. | 2R-6806 | [1] | CONNECTOR | |
| 5. | 3J-1907 | [1] | SEAL-O-RING | |
| 6. | 116-5417 | [1] | TUBE AS-FUEL SUPPLY | |
| 7. | 5P-9297 | [1] | CLIP(LOOP) | |
| 8. | 6V-6317M | [1] | BOLT(M10X1.5X20-MM) | |
| 9. | 6V-5839 | [1] | WASHER(11X21X2.5-MM THK) | |
| 10. | 092-2570 | [2] | WASHER-SEALING | |
| M | METRIC PART | |||
