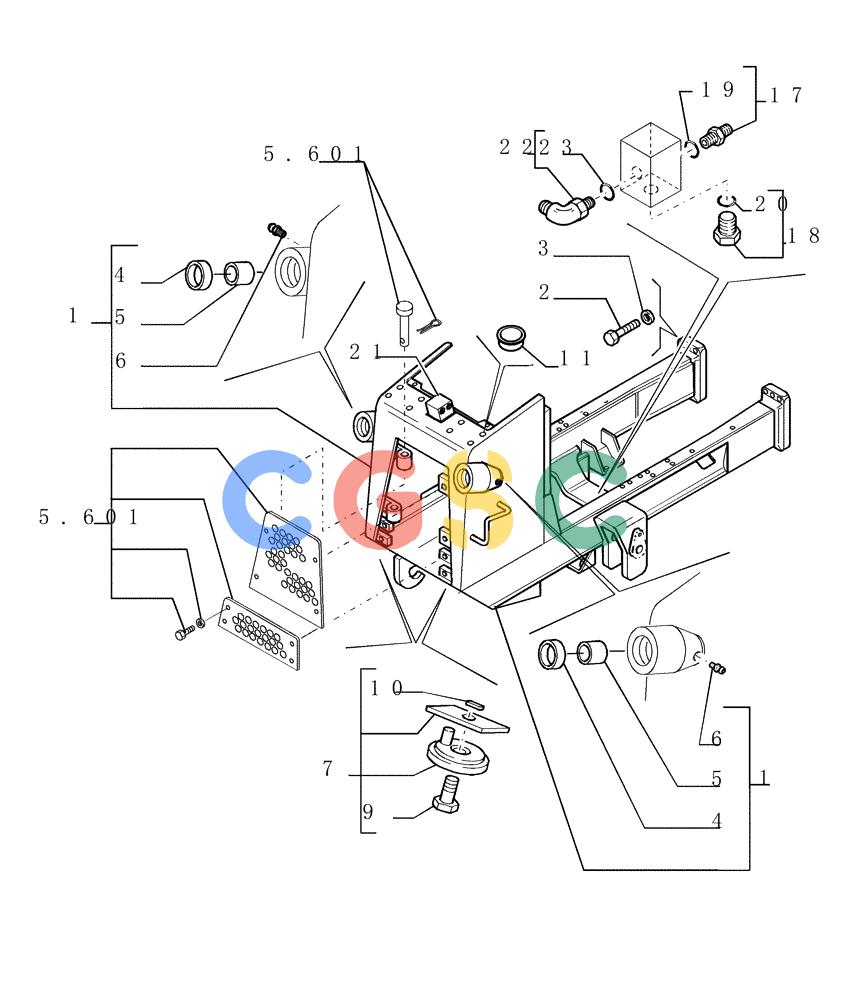

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (3.461[01]) - MAIN FRAME New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
764 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76093330 | [1] | FRAME | LEC- ASSY |
| 2. | 15988731 | [12] | BOLT,Hex, M20 x 1.5 x 80mm, Cl 10.9 | MKT20X1,5X80 Superseded by part number: 15988737 |
| 3. | 79032222 | [12] | WASHER,21mm ID x 40mm OD x 8mm Thk | LEC |
| 4. | 79087774 | [2] | BUSHING | LEC |
| 5. | 8292010 | [2] | BUSHING,76.2mm ID x 85mm OD x 50mm L | LEC |
| 6. | 13407211 | [2] | LUBE NIPPLE,M10 x 1 | TTF Superseded by part number: 84351730 |
| 7. | 79108556 | [2] | COVER | LEC- ASSY |
| 9. | 16113531 | [1] | SCREW,M10 x 25.50mm, Cl 10.9 | LEC10X1,25X25,5 |
| 10. | 14159971 | [1] | COTTER PIN | COE2,5X20 Superseded by part number: 14159970 |
| 17. | 79066944 | [1] | HYD CONNECTOR | LEC- ASSY |
| 18. | 10118840 | [2] | PLUG,M22 x 1.5 x 18, Brass | LECAssy |
| 19. | 14438085 | [1] | O-RING,19.3mm ID x 2.4mm | JES |
| 21. | 76078436 | [1] | BLOCK | LEC |
| 22. | 79067023 | [1] | HYD CONNECTOR | LEC- ASSY |
