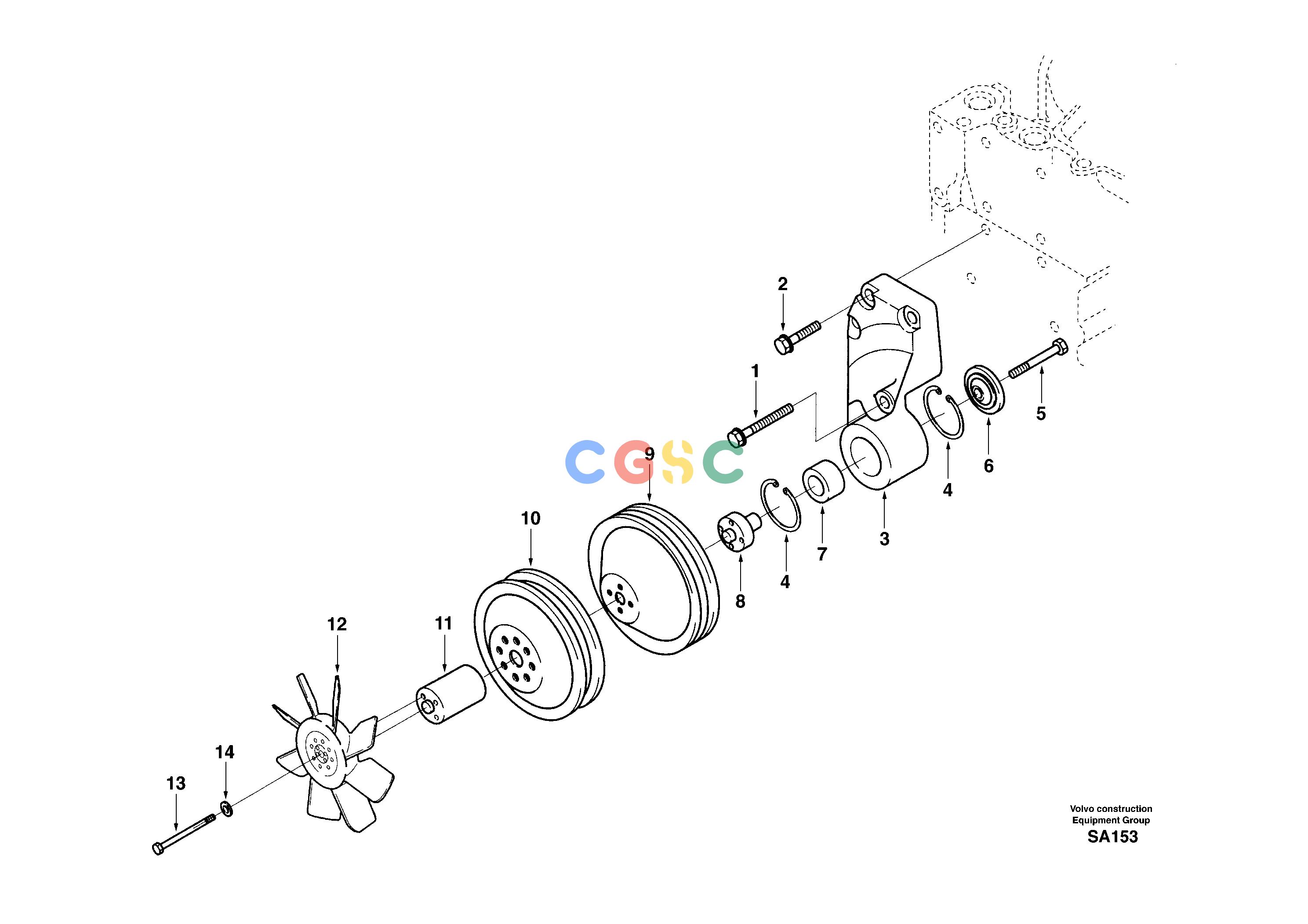

沃尔沃零件查询EC210 Fan driveNoneDD04B001-DD04B002NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
392 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA3901447
|
[1] |
Screw
|
|
| 2. |
SA3902114
|
[3] |
Screw
|
|
| 3. |
SA3911203
|
[1] |
Support
|
|
| 4. |
SA3035960
|
[2] |
Retaining ring
|
|
| 5. |
SA3907769
|
[1] |
Hexagon screw
|
|
| 6. |
SA3923044
|
[1] |
Fan retainer
|
|
| 7. |
SA3910739
|
[1] |
Roller Bearing
|
|
| 8. |
SA3911924
|
[1] |
Fan hub
|
|
| 9. |
SA3929269
|
[1] |
Pulley
|
|
| 10. |
SA3933251
|
[1] |
Pulley
|
|
| 11. |
SA2011-01080
|
[1] |
Spacer
|
|
| 12. |
SA1111-00450
|
|
Fan
|
|
| |
SA1111-00350
|
|
Fan
|
26", Tropical
|
| 13. |
SA9011-21019
|
|
Hexagon screw
|
|
| 14. |
VOE992040
|
|
Plain washer
|
|
