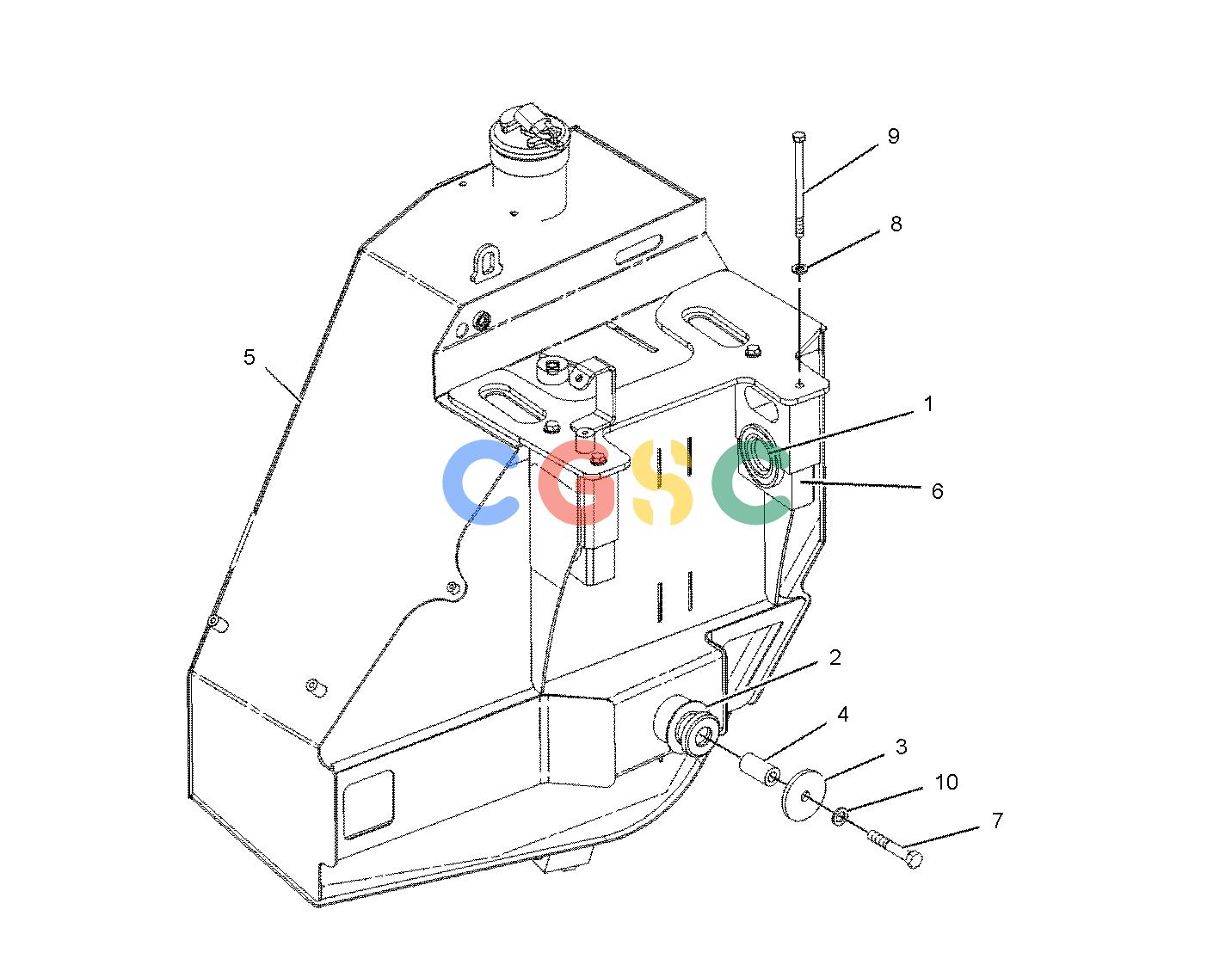

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 8N-0111 | [2] | MOUNT AS | |
| 2. | 9W-9915 | [1] | MOUNT AS | |
| 3. | 9W-9952 | [1] | WASHER(16.75X86X8-MM THK) | |
| 4. | 9W-9953 | [1] | SLEEVE | |
| 5. | 140-2096Y | [1] | TANK GP-FUEL | |
| 6. | 174-1685 | [2] | CAP | |
| 7. | 7X-2556M | [1] | BOLT(M16X2X100-MM) | |
| 8. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 9. | 8T-7929M | [4] | BOLT(M12X1.75X180-MM) | |
| 10. | 9X-8257 | [1] | WASHER(17.5X30X3.5-MM THK) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
