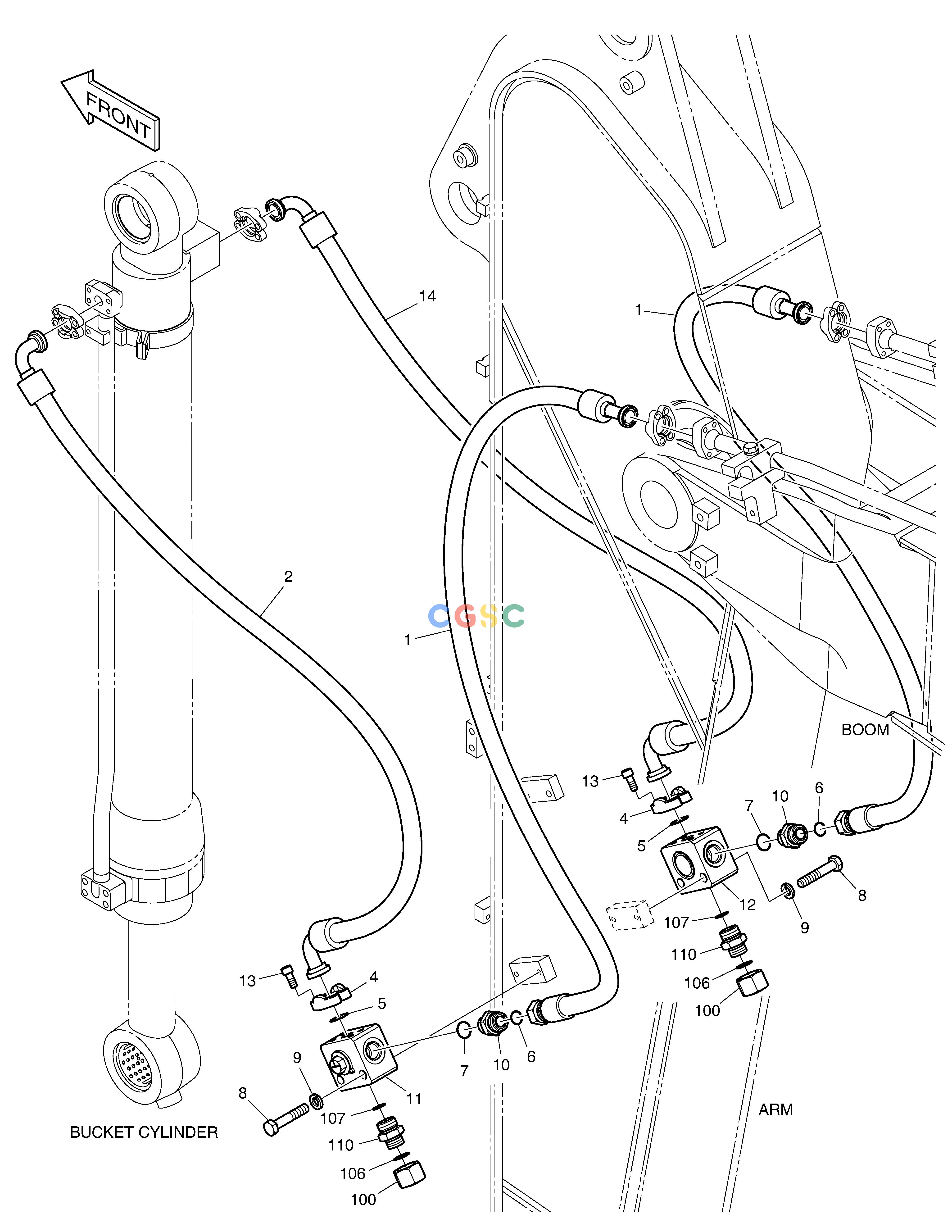

斗山零件查询ARM PIPING - ARM 2.4m(CLAMSHELL) DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
544 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-04371
|
[-] |
|
|
| 1. |
DS2016270
|
[2] |
|
|
| 10. |
2181-4133D5
|
[2] |
. ADAPTER
|
|
| 100. |
2181-2817D1
|
[2] |
. CAP
|
|
| 106. |
S8030121
|
[2] |
O-RING
|
|
| 107. |
S8000231
|
[2] |
O-RING
|
|
| 11. |
K1002939
|
[1] |
VALVE;SWITCH(L.H)
|
|
| 110. |
2181-4133D5
|
[2] |
. ADAPTER
|
|
| 12. |
K1002940
|
[1] |
VALVE;SWITCH(R.H)
|
|
| 13. |
S2212066
|
[8] |
BOLT
|
|
| 14. |
DS2045828
|
[1] |
|
|
| 2. |
DS2045631
|
[1] |
|
|
| 4. |
2181-9079
|
[4] |
FLANGE
|
|
| 5. |
DS2856002
|
[2] |
O-RING
|
|
| 6. |
S8030121
|
[2] |
O-RING
|
|
| 7. |
S8000231
|
[2] |
O-RING
|
|
| 8. |
S0563466
|
[4] |
BOLT
|
|
| 9. |
K1015638
|
[4] |
WASHER;HARDENED
|
|
