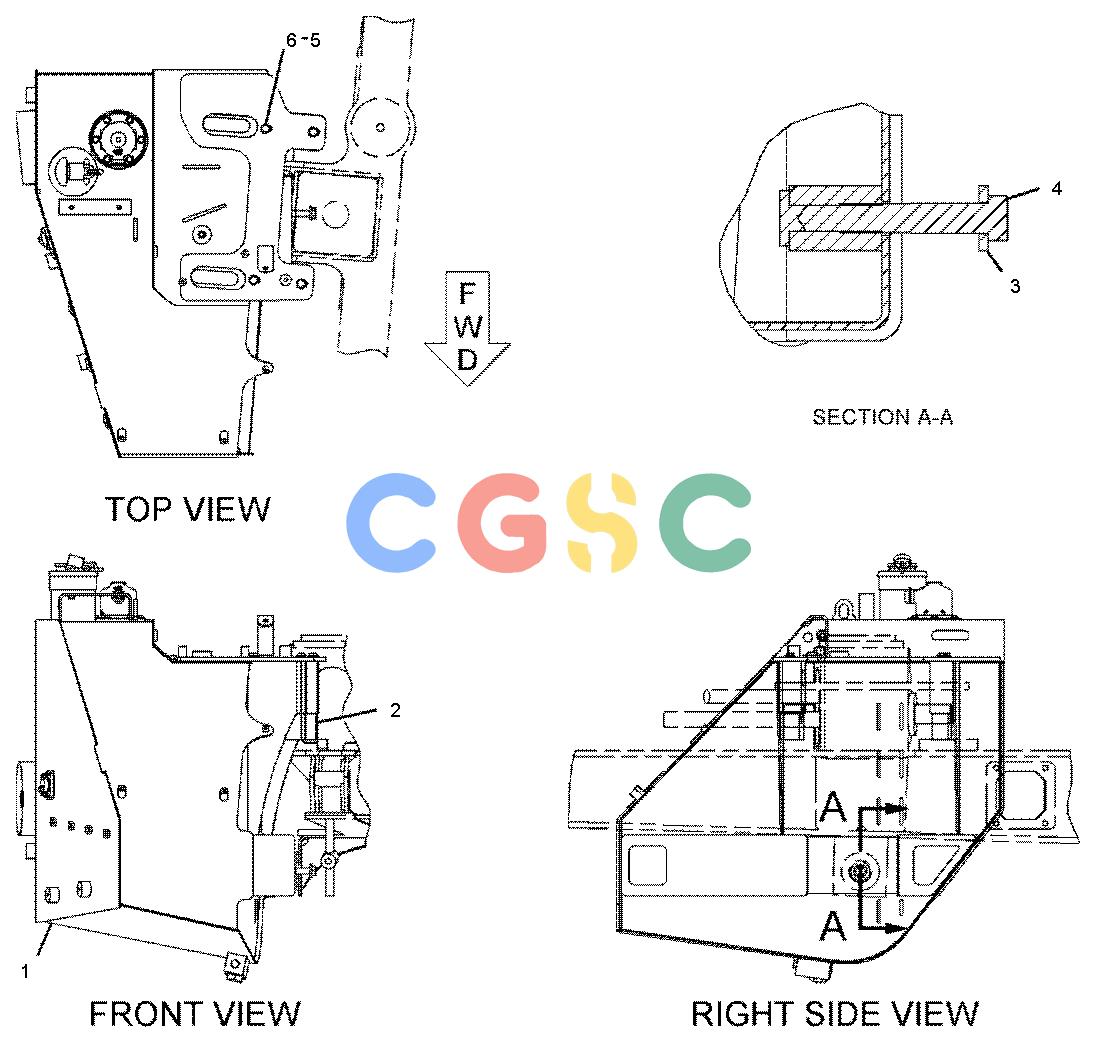

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 225-8746Y | [1] | TANK GP-FUEL(FAST FILL) | |
| 2. | 228-2463 | [2] | PLATE-CLAMP | |
| 3. | 7X-0515 | [1] | WASHER-HARD(17X35X5-MM THK) | |
| 4. | 7X-2555M | [1] | BOLT(M16X2X80-MM) | |
| 5. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 6. | 8T-7929M | [4] | BOLT(M12X1.75X180-MM) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
