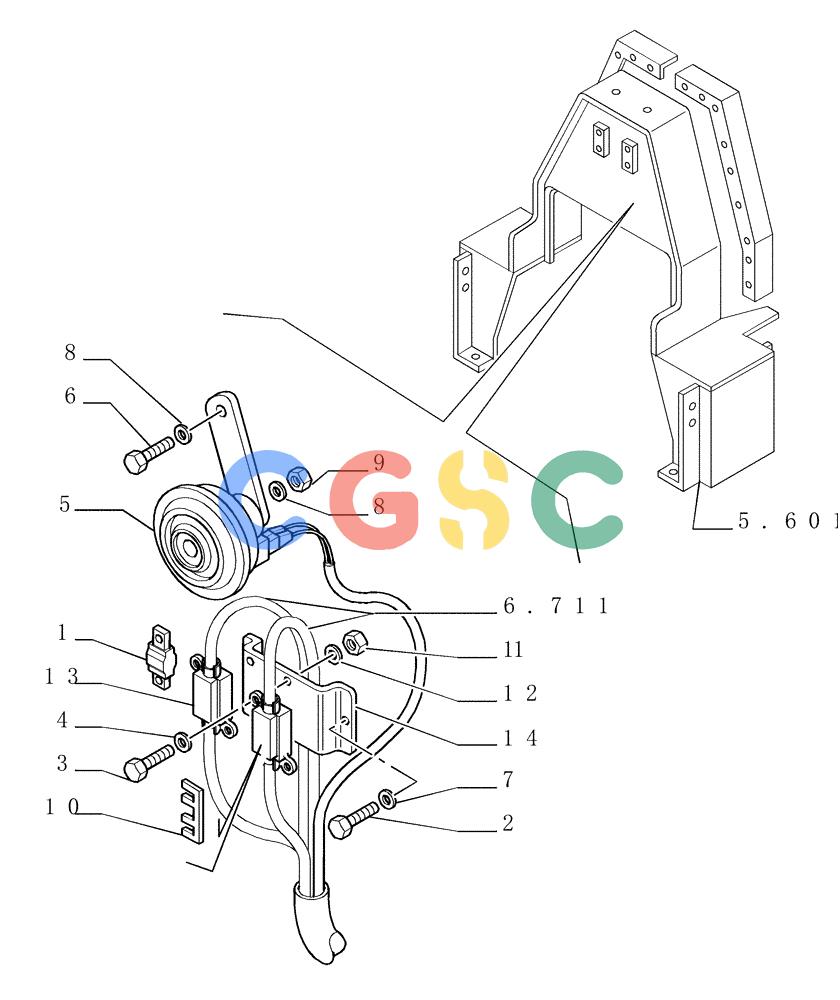

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (6.712[02]) - ELECTRIC COMPONENTS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
721 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 71403532 | [1] | FUSE | LEC"LINK" 50A Superseded by part number: 47465553, 76045724 |
| 2. | 10902131 | [2] | SCREW,Hex, M6 x 14mm, Cl 10.9, Full Thd | LEC |
| 3. | 10445021 | [4] | BOLT,Hex, M4 x 20mm, Cl 8.8, Full Thd | TTF Superseded by part number: 412255 |
| 4. | 12642831 | [4] | WASHER | LEC4X12,5 |
| 5. | 79114713 | [1] | HORN | LEC24V Superseded by part number: 87357734, 87391178 |
| 6. | 16043031 | [1] | BOLT,Hex, M8 x 12mm, Cl 10.9, Full Thd | LEC Superseded by part number: 43231 |
| 7. | 14496431 | [2] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 8. | 14496531 | [2] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 9. | 16100821 | [1] | NUT,M8, Cl 10 | LEC Superseded by part number: 43362 |
| 10. | 71403803 | [1] | FUSE | LEC"LINK" 80A Superseded by part number: 12393149 |
| 11. | 12574021 | [4] | NUT,M4 x .7, Cl 10 | LEC Superseded by part number: 12574011 |
| 12. | 10615379 | [4] | LOCK WASHER,Ext Tooth, M5 | LEC Superseded by part number: |
| 13. | 76045724 | [1] | FUSE HOLDER | LEC |
| 14. | 79105215 | [1] | BRACKET | LEC |
