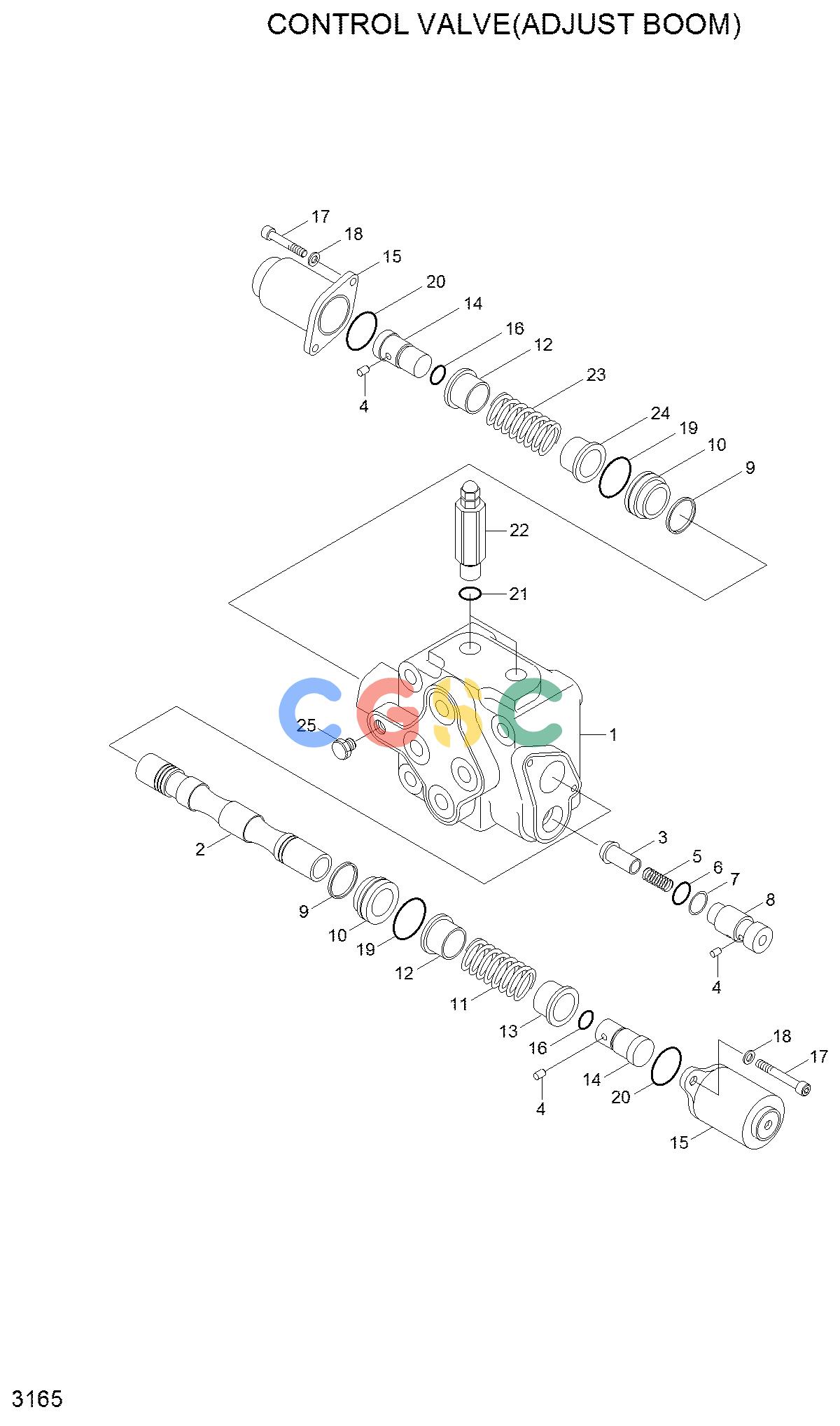

现代零件查询R200W-7 CONTROL VALVE(ADJUST BOOM, #0136-)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
751 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
31E6-00110
|
[1] |
VALVE-CONTROL
|
|
| . |
31E6-00111
|
[1] |
VALVE-CONTROL
|
|
| N1. |
3501-429
|
[1] |
HOUSING
|
|
| N2. |
3510-238
|
[1] |
PLUNGER ASSY
|
|
| 3. |
3513-117
|
[1] |
CHECK
|
|
| 4. |
XJDB-00309
|
[3] |
CHIP-NYLON
|
|
| 5. |
XJDB-00311
|
[1] |
SPRING
|
|
| 6. |
XJDB-00032
|
[1] |
O-RING
|
|
| 7. |
0859-174
|
[1] |
RING-BACK UP
|
|
| 8. |
3526-233
|
[1] |
CAP
|
|
| 9. |
3597-115
|
[2] |
RING
|
|
| 10. |
3535-030
|
[2] |
PLATE-SEAL
|
|
| 11. |
3590-319
|
[1] |
SPRING
|
|
| 12. |
3531-101
|
[2] |
GUIDE
|
|
| 13. |
3531-055
|
[1] |
GUIDE
|
|
| 14. |
3526-161
|
[2] |
CAP
|
|
| 15. |
3503-142
|
[2] |
COVER
|
|
| 16. |
0200-048
|
[2] |
O-RING
|
|
| 17. |
8072-084
|
[4] |
BOLT-SOCKET
|
|
| 18. |
0131-004
|
[4] |
WASHER-LOCK
|
|
| 19. |
0200-061
|
[2] |
O-RING
|
|
| 20. |
0200-059
|
[2] |
O-RING
|
|
| 21. |
8201-014
|
[2] |
O-RING
|
|
| 22. |
3537-319-350-30
|
[2] |
VALVE-RELIEF
|
|
| 23. |
3590-263
|
[1] |
SPRING
|
|
| 24. |
3531-102
|
[1] |
GUIDE
|
|
| 25. |
8320-001
|
[1] |
PLUG
|
|
| N. |
@
|
[AR] |
NOT INDIVIDUALLY SUPPLIED
|
|
