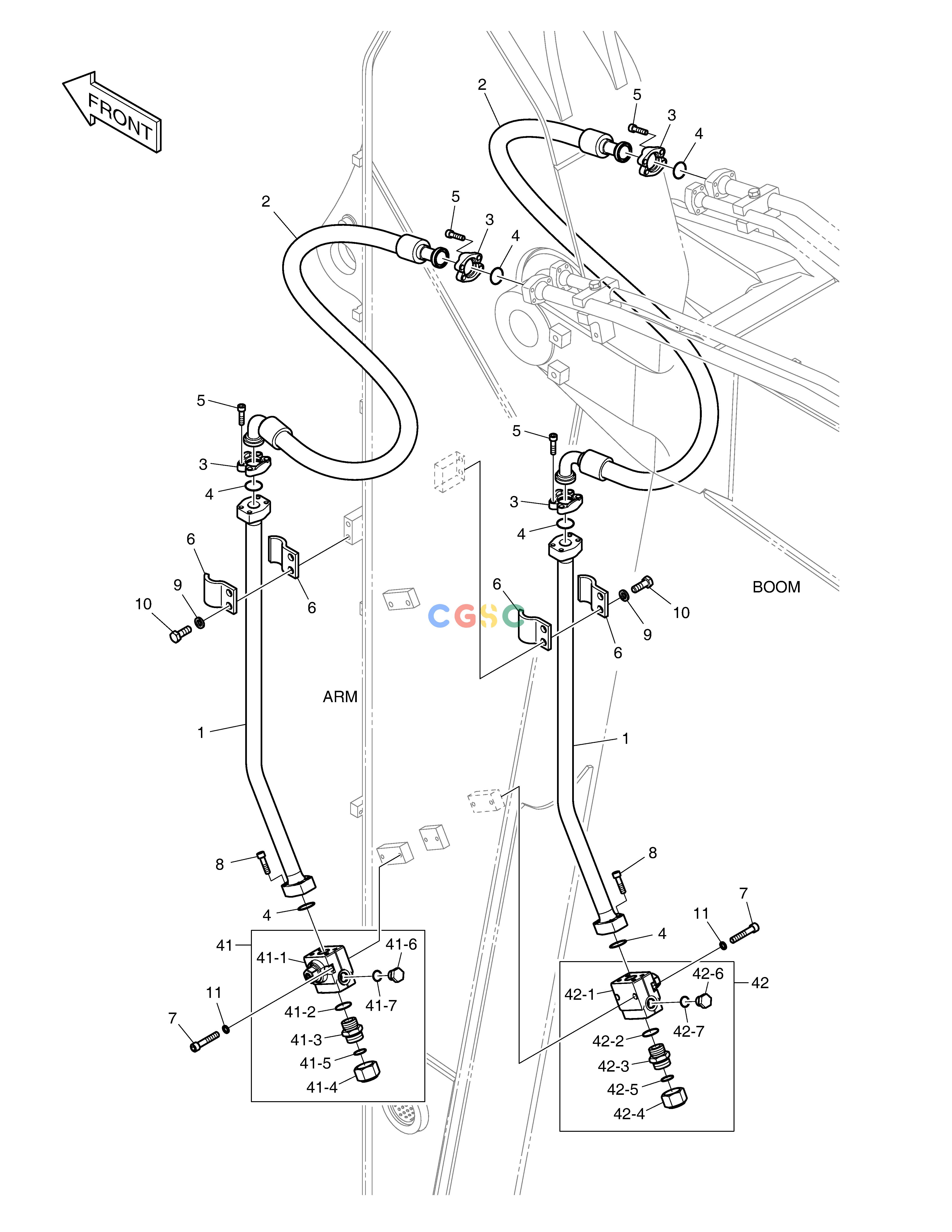

斗山零件查询ARM PIPING - ONE & TWO WAY(ARM 2.9m) DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
718 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-01435
|
[-] |
|
|
| 1. |
420207-00514A
|
[2] |
|
|
| 10. |
S0562766
|
[4] |
BOLT
|
|
| 11. |
S5110703
|
[4] |
WASHER
|
|
| 2. |
DS20401199
|
[2] |
|
|
| 3. |
2181-9078
|
[8] |
FLANGE;SPLIT
|
|
| 4. |
DS2856003
|
[6] |
O-RING
|
|
| 41. |
410137-00032E
|
[1] |
|
|
| 41. |
410137-00032C
|
[1] |
|
410137-00032E
|
| 41-1. |
410137-00067B
|
[1] |
|
|
| 41-2. |
S8000291
|
[1] |
O-RING
|
|
| 41-3. |
DS2232004
|
[1] |
ADAPTER
|
|
| 41-3. |
2181-4133D6
|
[1] |
ADAPTER
|
DS2232004
|
| 41-4. |
2181-2817D2
|
[1] |
CAP
|
|
| 41-5. |
S8030161
|
[1] |
O-RING
|
|
| 41-6. |
2181-1950D7
|
[1] |
. PLUG
|
|
| 41-7. |
S8000181
|
[1] |
O-RING
|
|
| 42. |
410137-00033E
|
[1] |
|
|
| 42. |
410137-00033C
|
[1] |
|
410137-00033E
|
| 42-1. |
410137-00069B
|
[1] |
|
|
| 42-2. |
S8000291
|
[1] |
O-RING
|
|
| 42-3. |
DS2232004
|
[1] |
ADAPTER
|
|
| 42-3. |
2181-4133D6
|
[1] |
ADAPTER
|
DS2232004
|
| 42-4. |
2181-2817D2
|
[1] |
CAP
|
|
| 42-5. |
S8030161
|
[1] |
O-RING
|
|
| 42-6. |
2181-1950D7
|
[1] |
. PLUG
|
|
| 42-7. |
S8000181
|
[1] |
O-RING
|
|
| 5. |
S2212466
|
[16] |
BOLT
|
|
| 6. |
K1004057
|
[4] |
CLAMP;PIPE
|
|
| 7. |
S2215966
|
[4] |
BOLT;SOCKET
|
|
| 8. |
S2212466
|
[8] |
BOLT
|
|
| 9. |
K1015638
|
[4] |
WASHER;HARDENED
|
|
