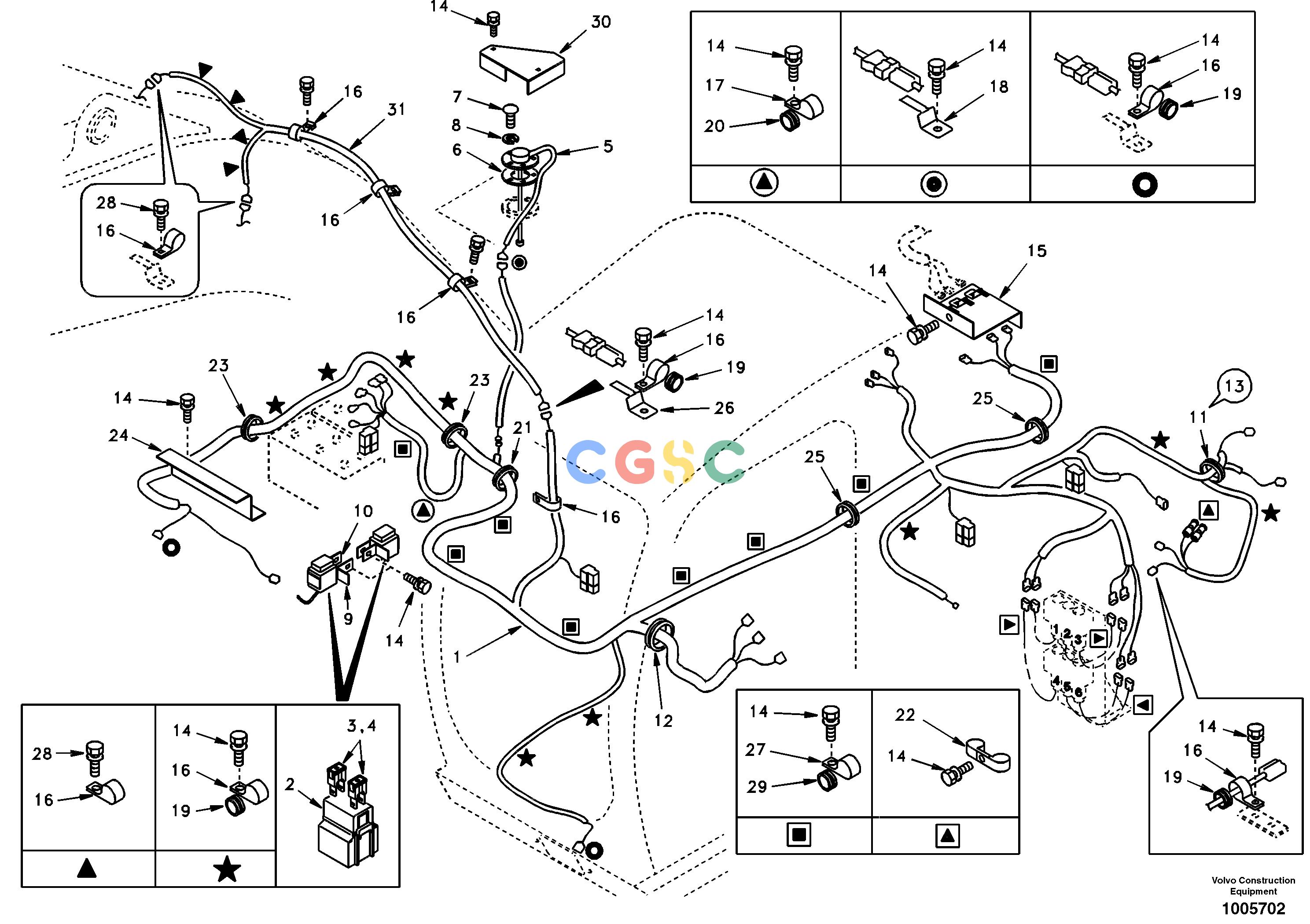

沃尔沃零件查询EC210 Cable and wire harness, mainNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
877 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA1122-03900
|
[1] |
Cable harness
|
SER NO 3001-3743
|
| |
VOE14507403
|
[1] |
Cable harness
|
SER NO 3744-4769
|
| |
VOE14513038
|
[1] |
Wire harness
|
SER NO 4770-
|
| |
VOE14529132
|
[4] |
Diode
|
|
| 2. |
SA1122-00940
|
[2] |
Fuse holder
|
|
| 3. |
SA9879-10400
|
[2] |
Fuse
|
40A
|
| 4. |
SA9879-10800
|
[2] |
Fuse
|
80A
|
| 5. |
SA1122-00160
|
[1] |
Sensor
|
SER NO 3001-4267
|
| |
VOE14511655
|
[1] |
Sensor
|
SER NO 4268-
|
| 6. |
SA2022-00200
|
[1] |
Gasket
|
|
| 7. |
SA9021-10503
|
[5] |
Cross recessed screw
|
|
| 8. |
SA9213-05000
|
[5] |
Spring washer
|
|
| 9. |
VOE14529099
|
[2] |
Bracket
|
|
| 10. |
VOE14529100
|
[2] |
Bracket
|
|
| 11. |
SA9751-15016
|
[1] |
Grommet
|
|
| 12. |
SA1040-64830
|
[1] |
Grommet
|
|
| 13. |
SA9751-13612
|
[1] |
Grommet
|
SER NO 3001-4106
|
| 14. |
SA9041-11003
|
[30] |
Bolt
|
SER NO 3001-3285
|
| |
SA9041-11003
|
[34] |
Bolt
|
SER NO 3286-3600
|
| |
SA9041-11003
|
[32] |
Bolt
|
SER NO 3601-4106
|
| |
SA9041-11003
|
[29] |
Bolt
|
SER NO 4107-4769
|
| |
SA9041-11003
|
[0034] |
Bolt
|
SER NO 4770-
|
| 15. |
SA1122-04040
|
[1] |
Bracket
|
|
| 16. |
SA9315-01602
|
[19] |
Insulating clip
|
SER NO 3001-3285
|
| |
SA9315-01602
|
[22] |
Insulating clip
|
SER NO 3286-3600
|
| |
SA9315-01602
|
[26] |
Insulating clip
|
SER NO 3601-4106
|
| |
SA9315-01602
|
[0023] |
Insulating clip
|
SER NO 4107-
|
| 17. |
SA9315-02201
|
[1] |
Clip
|
|
| 18. |
SA9392-10130
|
[5] |
Clip
|
SER NO 3001-4769
|
| |
SA9392-10130
|
[1] |
Clip
|
SER NO 4770-
|
| 19. |
VOE14529133
|
[18] |
Grommet
|
SER NO 3001-3600
|
| |
VOE14529133
|
[12] |
Grommet
|
SER NO 3601-4106
|
| |
VOE14529133
|
[0013] |
Grommet
|
SER NO 4107-
|
| 20. |
VOE14529119
|
[1] |
Grommet
|
|
| 21. |
VOE14529326
|
[1] |
Grommet
|
|
| 22. |
VOE14529345
|
[6] |
Clip
|
SER NO 3001-3285
|
| |
VOE14529345
|
[8] |
Clip
|
SER NO 3286-
|
| 23. |
SA9751-13606
|
[2] |
Grommet
|
|
| 24. |
SA1122-02161
|
[1] |
Cover
|
|
| 25. |
VOE14529112
|
[1] |
Grommet
|
SER NO 3001-4106
|
| |
VOE14529112
|
[2] |
Grommet
|
SER NO 4107-
|
| 26. |
SA9392-20130
|
[1] |
Clip
|
|
| 27. |
SA9315-03001
|
[8] |
Clip
|
|
| 28. |
SA9041-10803
|
[6] |
Bolt
|
SER NO 3601-
|
| 29. |
VOE14529117
|
[8] |
Grommet
|
|
| 30. |
SA1122-04900
|
[1] |
Cover
|
|
| 31. |
SA1122-00070
|
[1] |
Cable harness
|
SER NO 3001-4769
|
| |
VOE14513041
|
[1] |
Cable harness
|
SER NO 4770-
|
