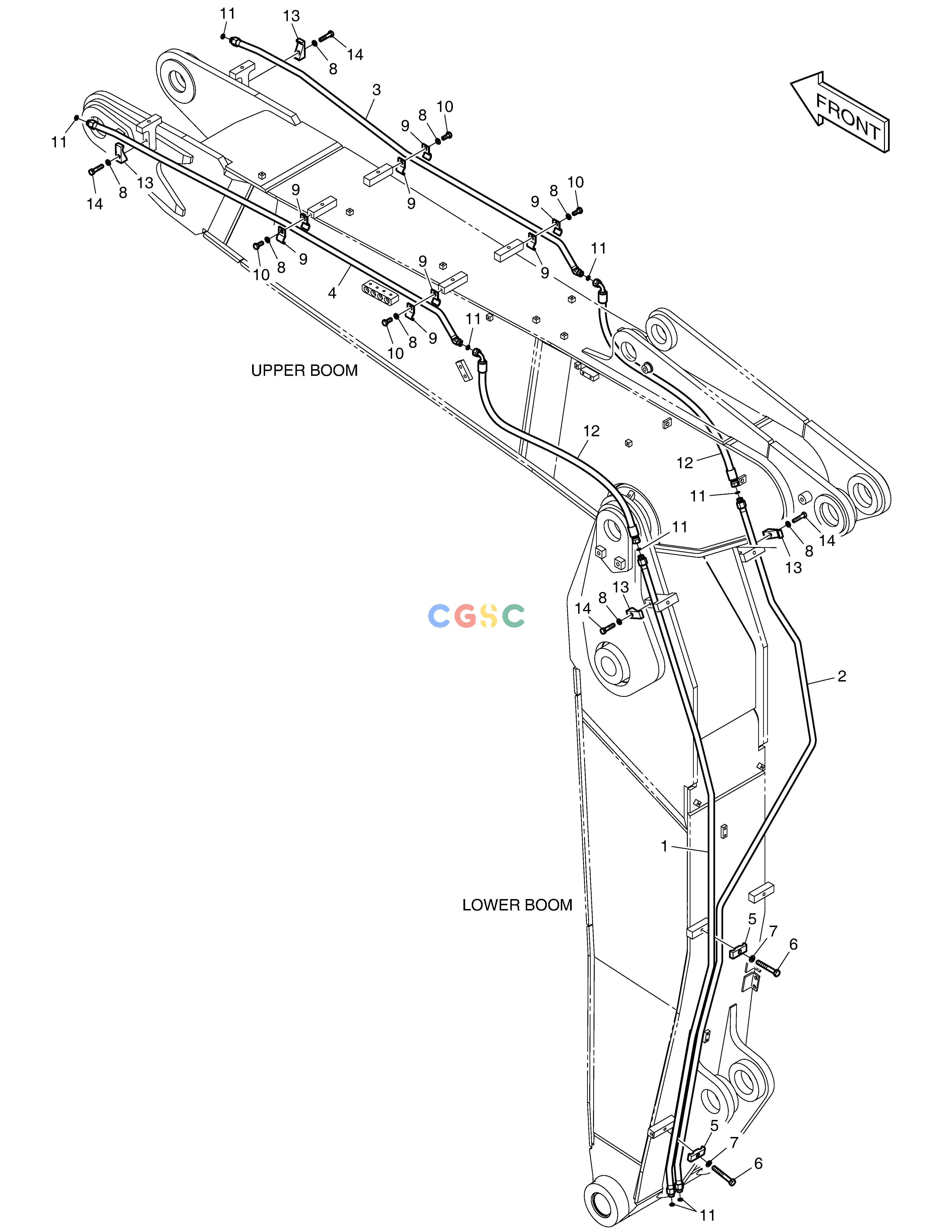

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 420212-04762 | [-] | ||
| 1. | 420207-01184A | [1] | ||
| 10. | S0515266 | [4] | BOLT | |
| 11. | S8030081 | [8] | O-RING | |
| 12. | DS20131741 | [2] | ||
| 13. | K1004349 | [4] | CLAMP | |
| 14. | S0560866 | [4] | BOLT | |
| 2. | 420207-01185A | [1] | ||
| 3. | 420207-01186 | [1] | ||
| 4. | 420207-01187 | [1] | ||
| 5. | 120208-00063A | [2] | ||
| 6. | S0563966 | [2] | BOLT | |
| 7. | K1015638 | [2] | WASHER;HARDENED | |
| 8. | S5102703 | [8] | WASHER | |
| 9. | 124-00299A | [8] | CLAMP |
