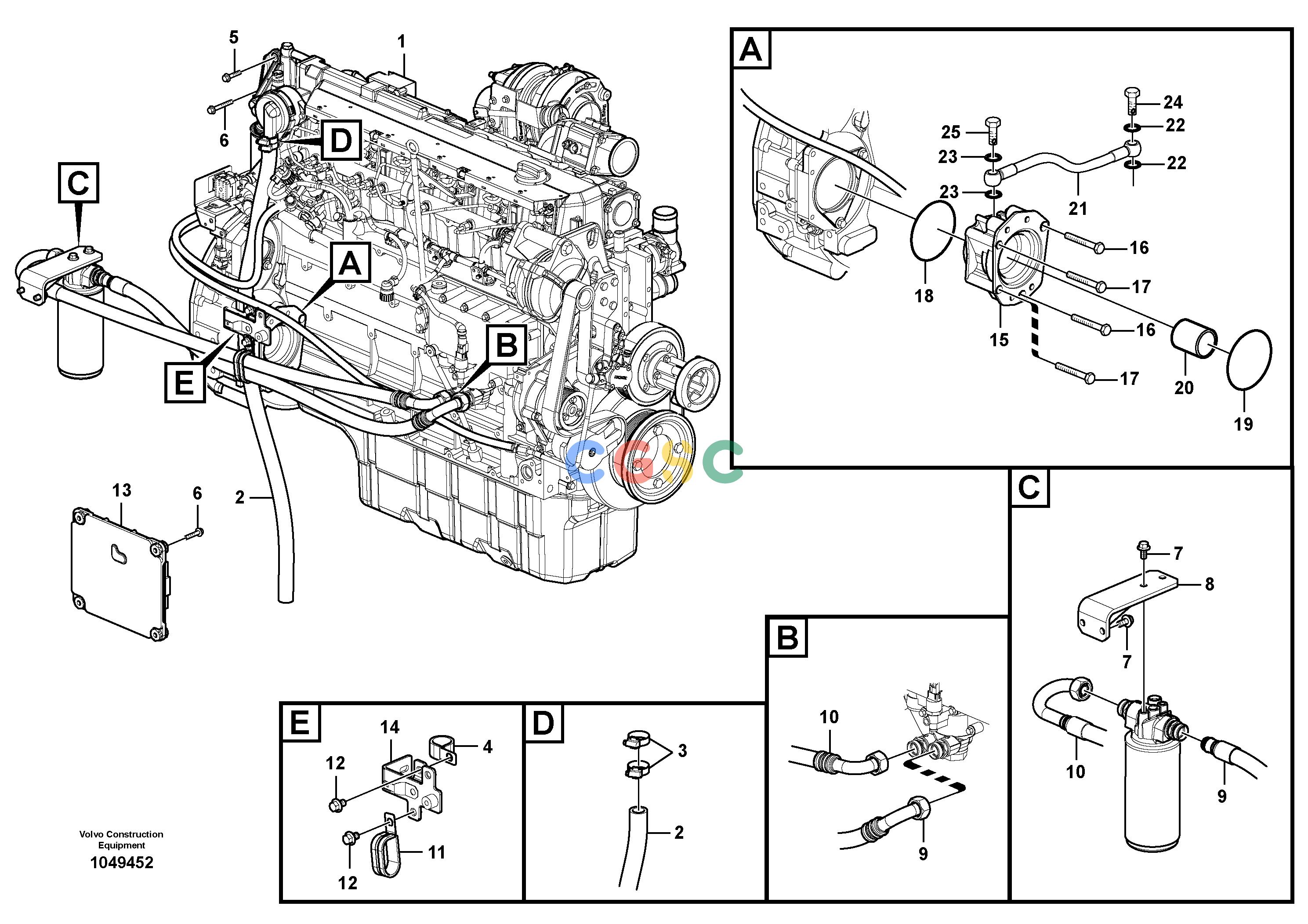

沃尔沃零件查询EC210B EnginePRIME S/N 35-,40-,50-, 70-,80-,81-,90-,95-950578287804-8286124VOE8287804NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
500 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14536076
|
[1] |
Engine
|
|
| |
VOE14536073
|
|
Engine
|
|
| 2. |
VOE14880502
|
[1] |
Cooling hose
|
|
| 3. |
VOE943475
|
[1] |
Hose clamp
|
|
| 4. |
VOE14500297
|
[1] |
Clip
|
|
| 5. |
VOE947760
|
[6] |
Flange screw
|
|
| 6. |
VOE965180
|
[1] |
Flange screw
|
|
| 7. |
VOE946441
|
[4] |
Flange screw
|
|
| 8. |
VOE14578418
|
[1] |
Bracket
|
|
| 9. |
VOE14595186
|
[1] |
Hose
|
|
| 10. |
VOE14578415
|
[1] |
Hose
|
|
| 11. |
VOE14507451
|
[1] |
Clip
|
|
| 12. |
VOE946471
|
[3] |
Flange screw
|
|
| 13. |
VOE60100000
|
[1] |
Electronic unit
|
|
| 14. |
VOE14525609
|
[1] |
Bracket
|
|
| 15. |
VOE20478270
|
|
Power take-off
|
|
| 16. |
VOE22316512
|
|
Six point screw
|
|
| 17. |
VOE20450820
|
|
Screw
|
|
| 18. |
VOE20450818
|
|
O-ring
|
|
| 19. |
VOE20450819
|
|
O-ring
|
|
| 20. |
VOE20459123
|
|
Sleeve
|
|
| 21. |
VOE20459170
|
|
Oil line
|
|
| 22. |
VOE13947621
|
|
Plane gasket
|
|
| 23. |
VOE13947281
|
|
Gasket
|
|
| 24. |
VOE60113509
|
|
Hollow screw
|
|
| 25. |
VOE980973
|
|
Hollow screw
|
|
