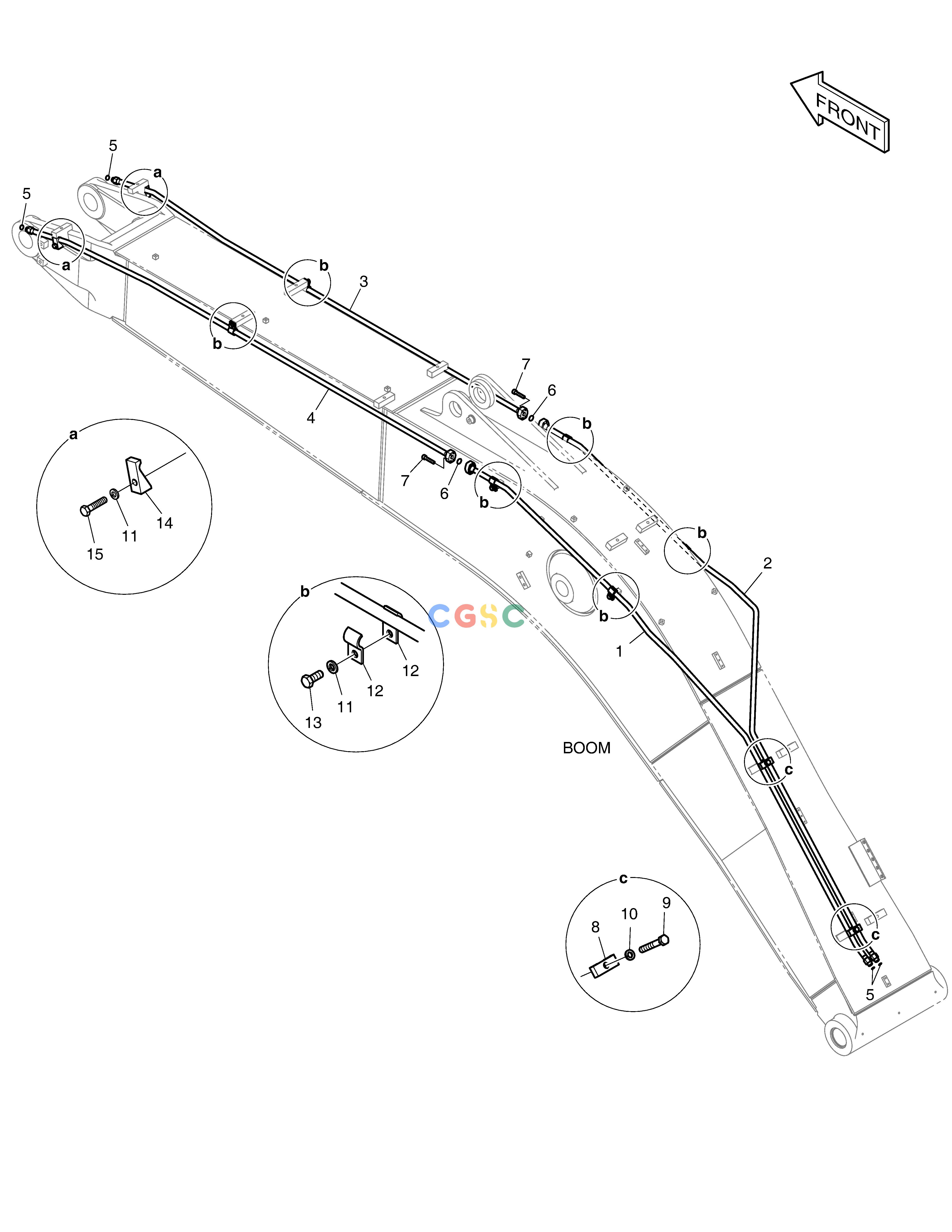

斗山零件查询BOOM PIPING - ROTATING DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
337 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-01426
|
[-] |
|
|
| 1. |
420207-00510B
|
[1] |
|
|
| 10. |
K1015638
|
[2] |
WASHER;HARDENED
|
|
| 11. |
S5102703
|
[8] |
WASHER
|
|
| 12. |
124-00299A
|
[12] |
CLAMP
|
|
| 13. |
S0515266
|
[6] |
BOLT
|
|
| 14. |
120208-00129
|
[2] |
|
|
| 15. |
S0560866
|
[2] |
BOLT
|
|
| 2. |
420207-00511B
|
[1] |
|
|
| 3. |
420207-00512A
|
[1] |
|
|
| 4. |
420207-00513A
|
[1] |
|
|
| 5. |
S8030081
|
[4] |
O-RING
|
|
| 6. |
DS2856002
|
[1] |
O-RING
|
|
| 7. |
S2209566
|
[8] |
. BOLT;SOCKET M8X1.25X45
|
|
| 8. |
120208-00063A
|
[2] |
|
|
| 9. |
S0563966
|
[2] |
BOLT
|
|
