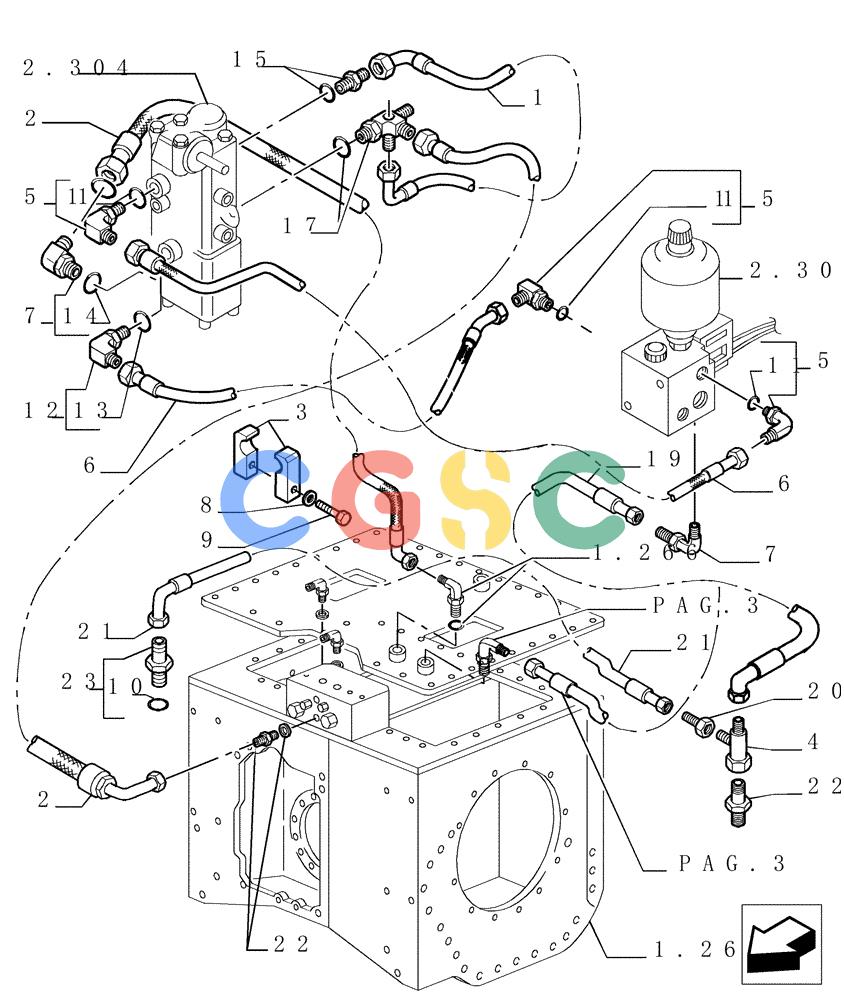

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (2.319[02]) - BRAKE/STEERING DIFFERENTIAL CONNECTING PIPES New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
827 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76054899 | [1] | HYDRAULIC HOSE | LEC |
| 2. | 76075185 | [2] | FLEXIBLE HOSE | LEC |
| 3. | 79055908 | [2] | CLAMP | LEC |
| 4. | 79054271 | [1] | HYD CONNECTOR | LEC |
| 5. | 79067019 | [3] | ELBOW | LEC- ASSY |
| 6. | 76078483 | [1] | HYDRAULIC HOSE | LEC |
| 6. | 76054881 | [1] | HYDRAULIC HOSE | LEC |
| 7. | 79067024 | [2] | ELBOW | LEC- ASSY 20 a 90° |
| 8. | 12638631 | [1] | WASHER,10.6mm ID x 18mm OD x 2mm Thk | LEC Superseded by part number: 86625251 |
| 9. | 16040831 | [1] | BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd | LEC Superseded by part number: 43248 |
| 10. | 14437785 | [1] | O-RING,11.3mm ID x 2.4mm | LEC |
| 12. | 79067018 | [1] | 90 ELBOW | LEC- ASSY 10 a 90° |
| 14. | 14438085 | [1] | O-RING,19.3mm ID x 2.4mm | JES |
| 15. | 76069200 | [1] | HYD CONNECTOR | LEC- ASSY |
| 17. | 76054890 | [1] | SWIVEL CONNECTION | LEC |
| 19. | 76075187 | [1] | FLEXIBLE HOSE | LEC |
| 20. | 79098124 | [1] | HYD CONNECTOR | LEC |
| 21. | 76075186 | [1] | FLEXIBLE HOSE | LEC |
| 22. | 79056756 | [2] | HYD CONNECTOR | LEC |
| 23. | 79066938 | [1] | FITTING | LEC- ASSY |
| 11. | 14437885 | [1] | O-RING,13.30mm ID x 2.40mm | LEC |
